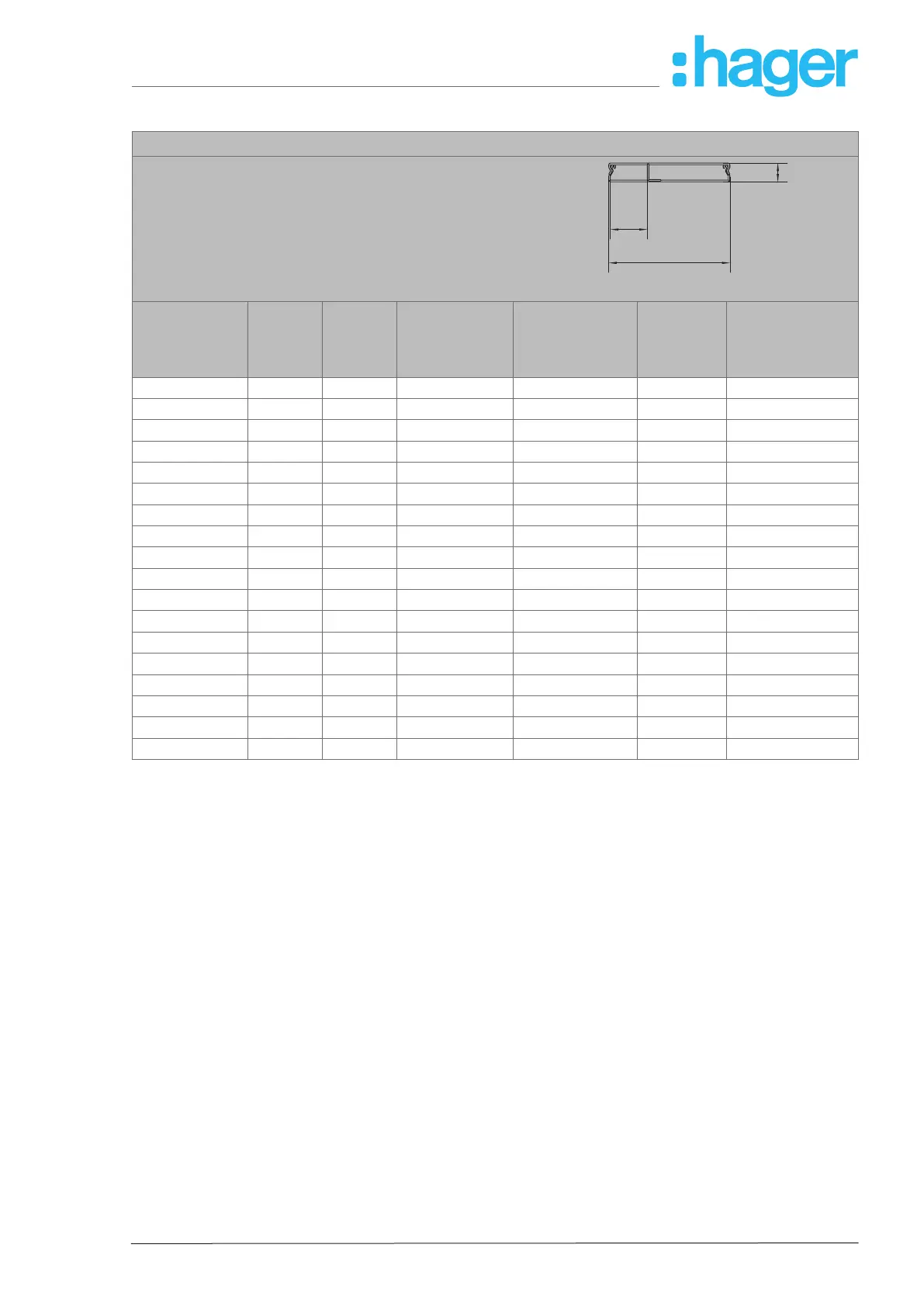

6LE008221A
Floor installation systems
Basic manual
Page 59/61
Floor installation systems
Cable assignment, UK ducts
60
28
190
Ducts Duct
width
[mm]
Duct
height
[mm]
Version Dimensions,
compartments
[mm]
Usable
cross-sec-
tion
[cm²]
Max. cable as-
signment
Ø 11 mm
Filling level 0.5
UK190282 190 28
2-compartment
75/115 53,2 21(8 / 13)
UK190283 190 28
3-compartment
60/70/60 53,2 20(6 / 8 / 6)
UK190382 190 38
2-compartment
75/115 72,2 29(11 / 18)
UK190383 190 38
3-compartment
60/70/60 72,2 28(9 / 10 / 9)
UK190482 190 48
2-compartment
75/115 91,2 36(14 / 22)
UK190483 190 48
3-compartment
60/70/60 91,2 35(11 / 13 / 11)
UK240282 240 28
2-compartment
100/140 67,2 27(11 / 16)
UK240283 240 28
3-compartment
85/70/85 67,2 26(9 / 8 / 9)
UK240382 240 38
2-compartment
100/140 91,2 36(15 / 21)
UK240383 240 38
3-compartment
85/70/85 91,2 36(13 / 10 / 13)
UK240482 240 48
2-compartment
100/140 115,2 46(19 / 27)
UK240483 240 48
3-compartment
85/70/85 115,2 45(16 / 13 / 16)
UK340282 340 28
2-compartment
140/200 95,2 39(16 / 23)
UK340283 340 28
3-compartment
115/110/115 95,2 38(13 / 12 / 13)
UK340382 340 38
2-compartment
140/200 129,2 52(21 / 31)
UK340383 340 38
3-compartment
115/110/115 129,2 53(18 / 17 / 18)
UK340482 340 48
2-compartment
140/200 163,2 66(27 / 39)
UK340483 340 48
3-compartment
115/110/115 163,2 65(22 / 21 / 22)
