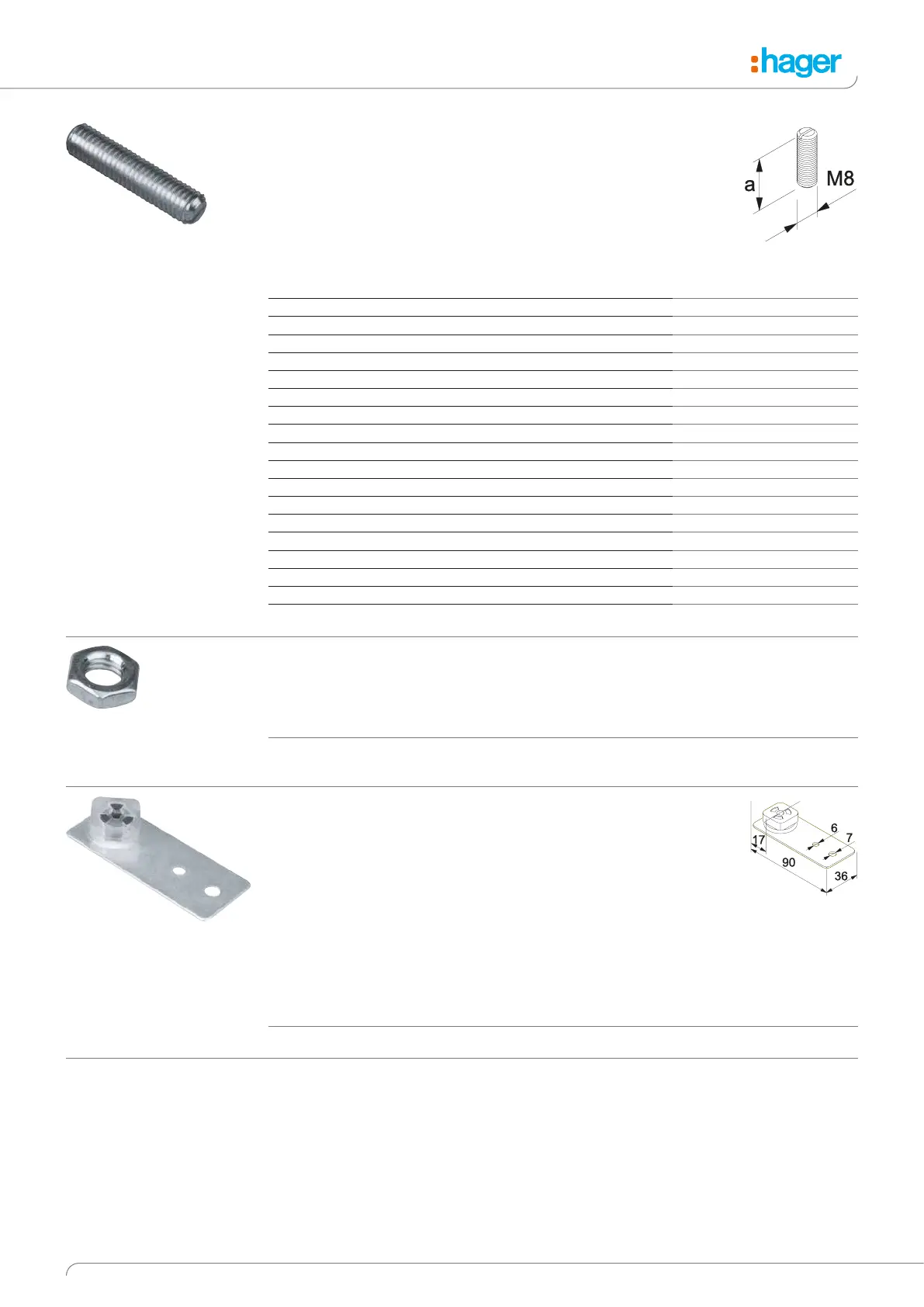

Accessories
BKZNS25
Set screws
Properties:
- Set screw M8 for elevating the screed-flush trunking,
for screwing into the levelling clamp or cross member
Note:
- Set screws that protrude above the upper edge of the screed
or cross member must be shortened.
- Other heights available on request
Designation Länge a PU Order no.
Set screw M8 x 25, levelling height 25 mm 1 BKZNS25
Set screw M8 x 30, levelling height 30mm 1 BKZNS30
Set screw M8 x 35, levelling height 35mm 1 BKZNS35
Set screw M8 x 40, levelling height 40mm 1 BKZNS40
Set screw M8 x 45, levelling height 45mm 1 BKZNS45
Set screw M8 x 50, levelling height 50mm 1 BKZNS50
Set screw M8 x 55, levelling height 55mm 1 BKZNS55
Set screw M8 x 60, levelling height 60mm 1 BKZNS60
Set screw M8 x 65, levelling height 65mm 1 BKZNS65
Set screw M8 x 70, levelling height 70mm 1 BKZNS70
Set screw M8 x 75, levelling height 75mm 1 BKZNS75
Set screw M8 x 80, levelling height 80mm 1 BKZNS80
Set screw M8 x 85, levelling height 85mm 1 BKZNS85
Set screw M8 x 90, levelling height 90mm 1 BKZNS90
Set screw M8 x 100, levelling height 100mm 1 BKZNS100
Set screw M8 x 120, levelling height 120mm 1 BKZNS120
Set screw M8 x 140, levelling height 140mm 1 BKZNS140
Set screw M8 x 160, levelling height 160mm 1 BKZNS160
BKZKM80
Lock nut M8
Properties:
- Nut M8 for locking set screws in cross members
BKZHP00
Retaining tab with insulating mount
Properties:
- Retaining tab with insulating mount for fastening of the
screed-flush trunking on the bare floor for footfall
sound-insulated installation of set screws M8
Material:
- Retaining tabs made of galvanised steel in accordance with
DIN EN 10327
- Insulating mount made of plastic
Note:
- When using retaining tabs with insulating mounts, the minimum
installation height for the trunking is 45 mm.
Designation PU Order no.
Lock nut M8 for locking h.-adj. pin 1 BKZKM80
Designation PU Order no.
Retaining tab made of steel, with insulating mount 1 BKZHP00
