operating principle, formwork elements

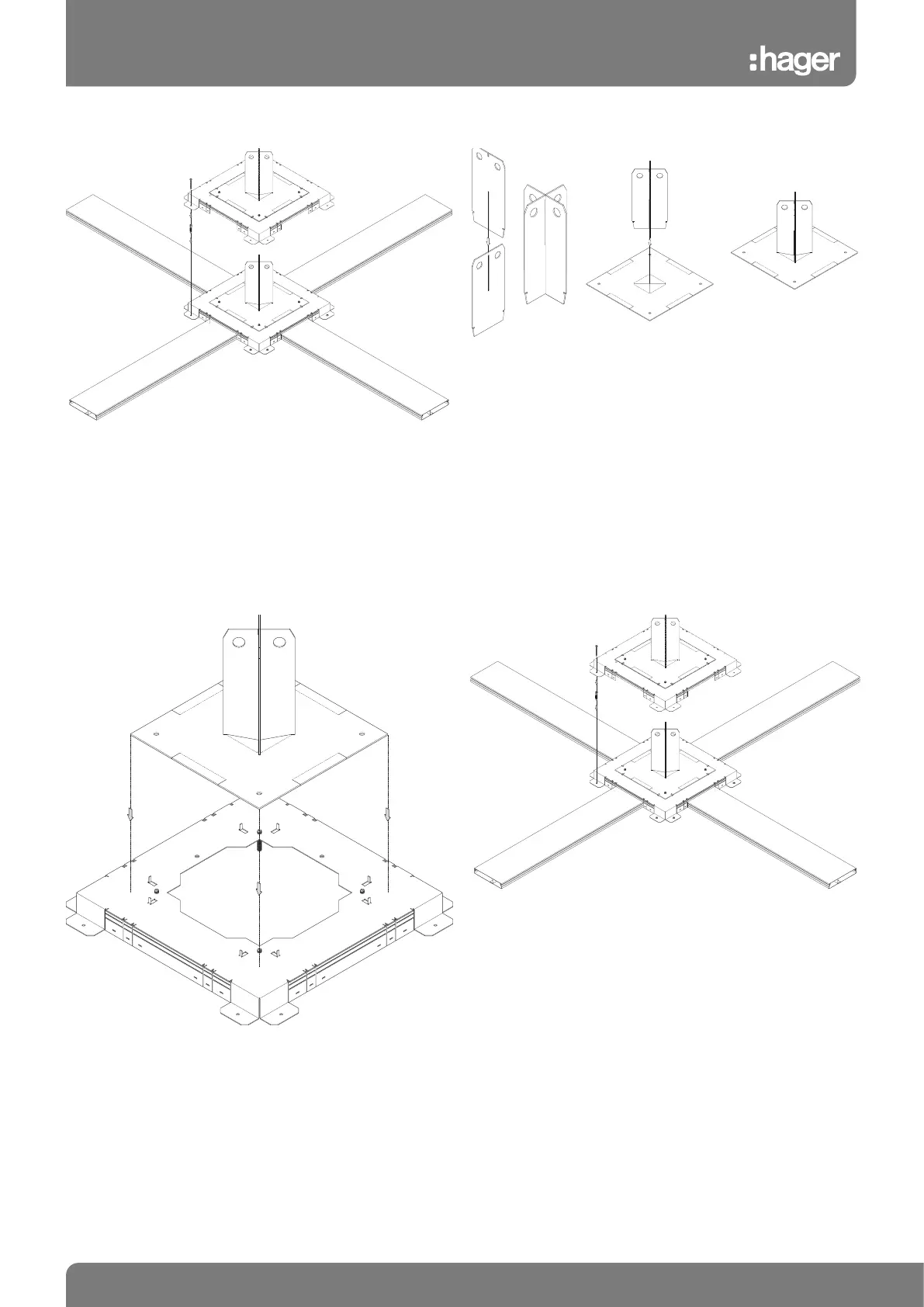

1: SEBD500GT - Junction box incl. base support
Junction box 500 mm x 500 mm with steel sheet formwork for
formwork elements incl. base support, available as a set.
2: Preparing the base support
Prepare the base support for installation by simply pushing the parts
together.
3: Attaching the junction box to the base support
Attachment is performed by simply bending the pre-formed metal
tabs.
4: Positioning the junction box
Place the junction box incl. base support on the trunking system and
remove the page walls along the matching perforations. Orientate and
fasten on the bare concrete floor.
