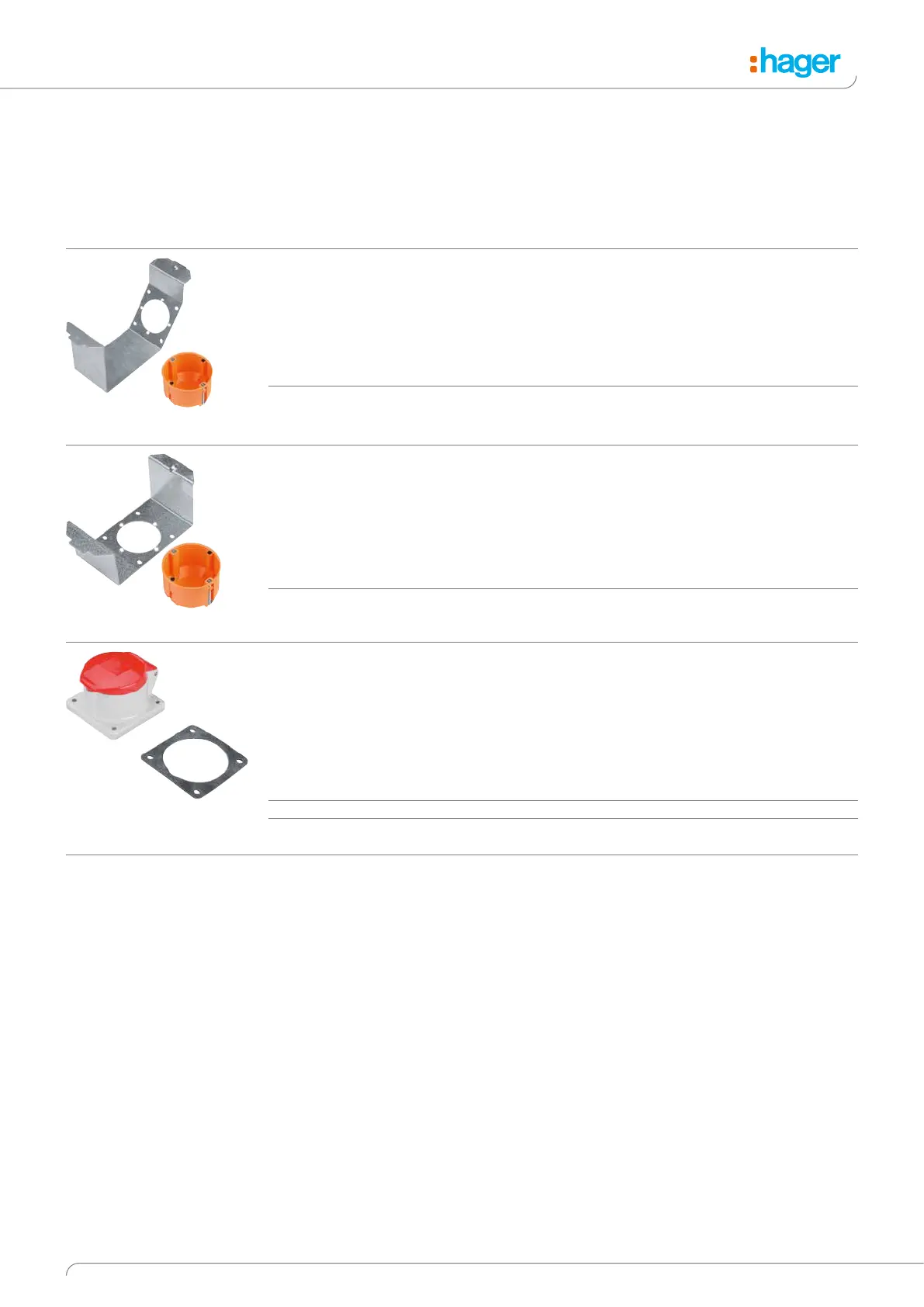

228 Technical adaptations possible
electraplan.GB-EG
Designation PU Order no.
Mount. panel CEE repl. f. GB/GTVR400/GTVD300 1 GBVC400
electraplan.GB-EG
CEE mounting panels and CEE power sockets
- For installation of CEE power
sockets
- Minimum installation depth:
170 mm
- Fits the following CEE power
sockets:
16 A:
hager ECEE165
ABL Sursum - F51S300
Mennekes - TwinCONTAKT 338
32 A:
hager ECEE325
ABL Sursum - F53S300
Note
CEE power socket not included
in supply
GBVC400
CEE mounting panel GBVC400
Properties:
- Mounting panel for stainless-steel cassette EKQ06, EKR06,
service unit VQ06, VR06, VE09 or VR10 (left and right)
- Replaces device casing GTVR300, GBVR300 or GTVD200
- Suitable for connection of CEE angled plug
Designation PU Order no.
Mount. panel CEE repl. f. GB/GTVR300/GTVD200 1 GBVC300
GBVC300
CEE mounting panel GBVC300
Properties:
- Mounting panel for stainless-steel cassette EKQ12, EKR12,
service unit VQ12, VR12, VANR12 or VR10 (centre)
- Replaces device casing GTVR400, GBVR400 or GTVD300
Designation PU Order no.
CEE power socket, straight, 16 A IP44 1 ECEE165
CEE power socket, straight, 32 A IP44 1 ECEE325
ECEE165
CEE power socket
Properties:
- CEE power socket, straight
- Splash-water protection rating IP 44
- 5-pole 400 V 50/60 Hz
- ECEE16 - 16 A
- ECEE32 - 32 A
