Installation instructions, pedestal box

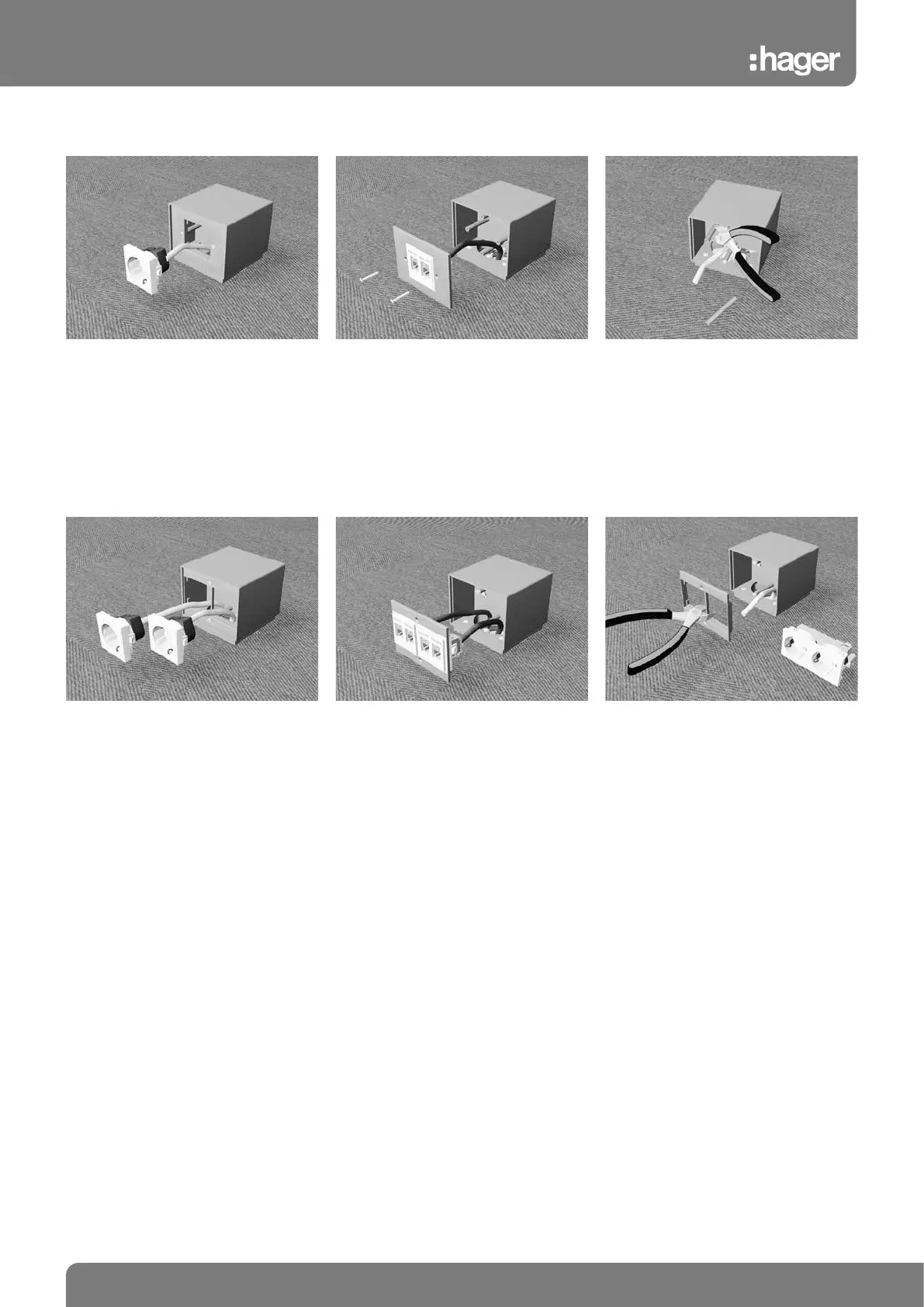

Installation wall for 1 x Rastec 45
®
Thread the cables through the installation
wall and secure the installation wall to the
pedestal box using two screws. Connect the
cables to the installation devices and snap
the installation devices into the installation
wall.
Installation wall for 1 x Rastec 45
®
Installation wall for 2 x Rastec 45
®
Devices such as telephone or data sockets
must be installed into the respective mount-
ing plates beforehand.
Cut off the two outer studs as close as pos-
sible at the rear wall using a wire cutter or
nipper pliers.
Installation wall for 2 x Rastec 45
®
Thread the cables through the installation
wall and secure the installation wall to the
pedestal box using two screws. Connect the
cables to the installation devices and snap
the installation devices into the installation
wall.
Installation wall for 2 x Rastec 45
®
Installation wall for double Rastec 45
®
Devices such as telephone or data sockets
must be installed into the respective mount-
ing plates beforehand.
When using twin-type sockets of type Rastec
45 ®, the centre rib at the installation wall
must be removed using a wire cutter.
