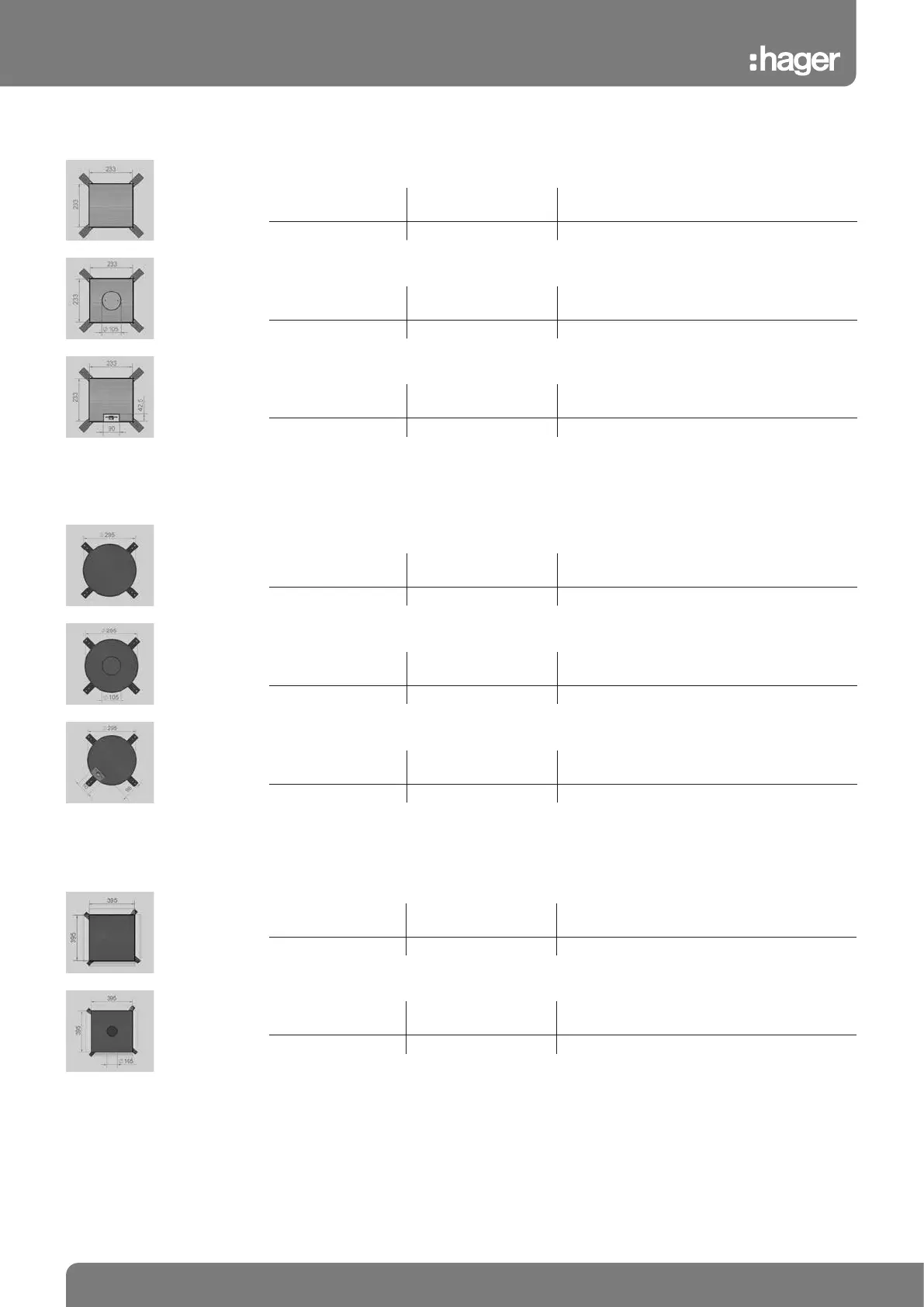

Flooring cutout and installation dimensions
Stainless-steel cassettes, square
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
243 x 243 244 x 244 233 x 233 x 23
Stainless-steel cassette EKQ1200BL
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
243 x 243 244 x 244 233 x 233 x 23
Stainless-steel cassette EKQ1200TM
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
243 x 243 244 x 244 233 x 233 x 23
Stainless-steel cassette EKQ1200LE
Stainless-steel cassettes, round
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
Ø 305 Ø 306 Ø 295 x 23
Stainless-steel cassette EKR1200BL
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
Ø 305 Ø 306 Ø 295 x 23
Stainless-steel cassette EKR1200TM
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
Ø 305 Ø 306 Ø 295 x 23
Stainless-steel cassette EKR1200LE
Heavy-duty cassette EKSQ405BL
Heavy-duty cassette EKSQ405TM
Stainless-steel cassette, heavy duty
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
405 x 405 406 x 406 395 x 395 x 28
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout [mm]
405 x 405 406 x 406 395 x 395 x 28
