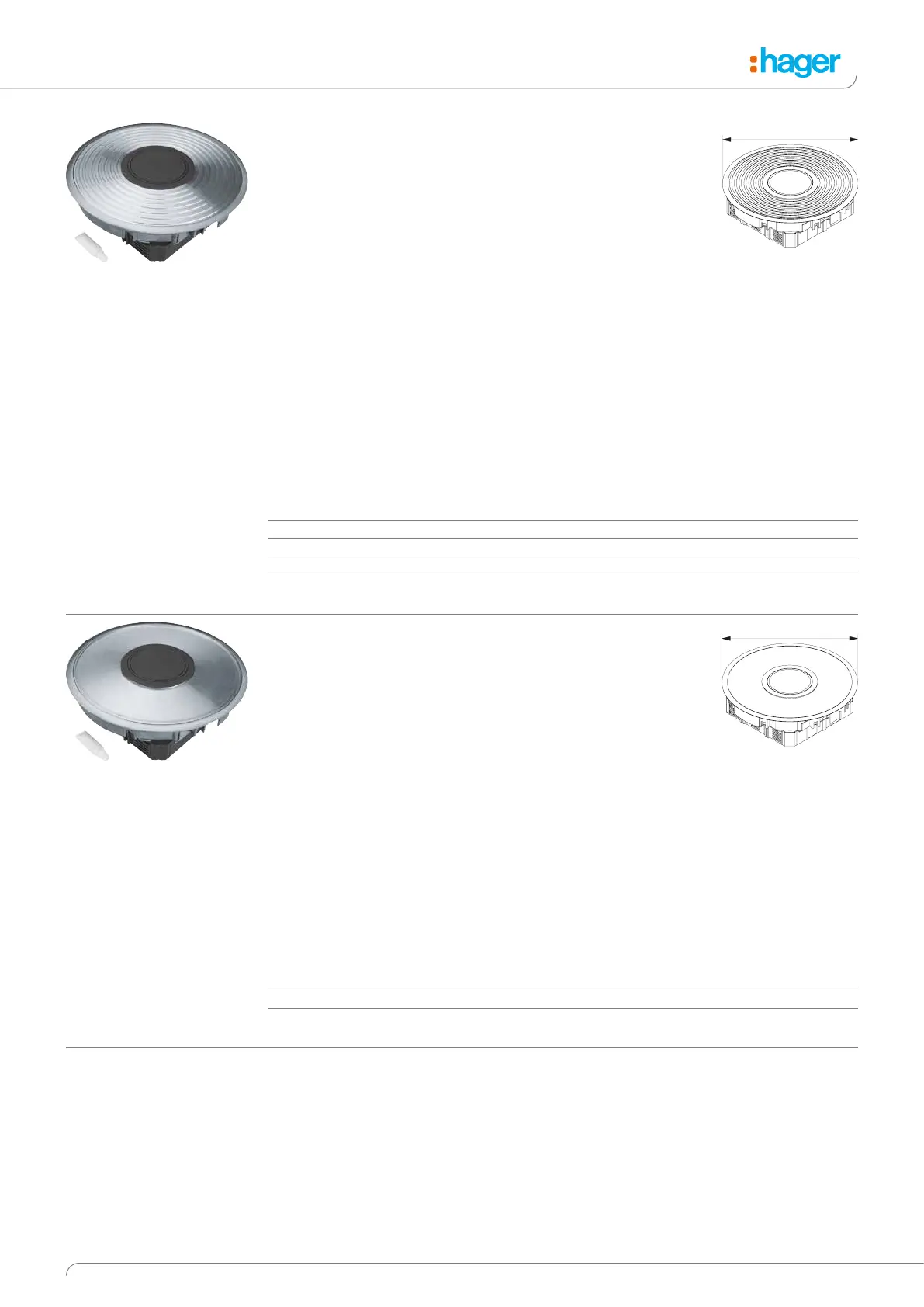

Service units for wet-cleaned floors
VANR1200TU
325
Ø
Properties:
- Service unit with flooring frame made of aluminium for
wet-cleaned floors
- Protection rating IP 66
- Full-aluminium cover with grooved structure
- For up to 12 installation devices in
3 device casings GTVR400, GBVR400 or GTVD300
- Device casings can be lowered in increments down to 18 mm
- Mounting kit for double floors upon request
- A tube cable outlet made of polyamide is integrated in the
cover and can be used as line outlet if reversed by 180°
- Outer dimension of flooring frame: Ø 325 mm
- Installation opening dimension: Ø 306 mm
- Installation height from 105 mm for GBVR400 and GTVD300
- Installation height from 115 mm for GTVR400
- Material: Aluminium
- Variant:
R - Aluminium grooved structure
R ts - aluminium grooved structure with deep black accents
HB - with mounting kit for cavity floor
BD - with mounting kit for junction boxes
Designation PU Order no.
Serv.unit R12 w set HB wet PA-Tub Al R 1 VANR1200TU
Serv.unit R12 w set BD wet PA-Tub Al R 1 VANR1201TU
Serv.unit R12 w set HB wet PA-T Al R ts 1 VANR12009005TU
Serv.unit R12 w set BD wet PA-T Al R ts 1 VANR12019005TU
VANR12003TU
Service unit for wet-cleaned floors with tube cable outlet
made of polyamide
325
Ø
Properties:
- Service unit with flooring frame made of aluminium for wet-
cleaned floors
- Full-aluminium cover, also fits bonded floorings of 3 mm thick-
ness (e. g. PVC, Linoleum or chequered aluminium panel)
- For up to 12 installation devices in
3 device casings GTVR400, GBVR400 or GTVD300
- Device casings can be lowered in increments down to 18 mm
- Mounting kit for double floors upon request
- A tube cable outlet made of polyamide is integrated in the
cover and can be used as line outlet if reversed by 180°
- Outer dimension of flooring frame: Ø 325 mm
- Installation dimensions: Ø 306 mm
- Installation height from 105 mm for GBVR400 and GTVD300
- Installation height from 115 mm for GTVR400
- Material: Aluminium
- Variant:
HB - with mounting kit for cavity floor
BD - with mounting kit for junction boxes
Designation PU Order no.
Serv.unit R12 w set HB wet PA-T Al 3mm 1 VANR12003TU
Serv.unit R12 w set BD wet PA-T Al 3mm 1 VANR12013TU
Service unit for wet-cleaned floors with tube cable outlet
made of polyamide
