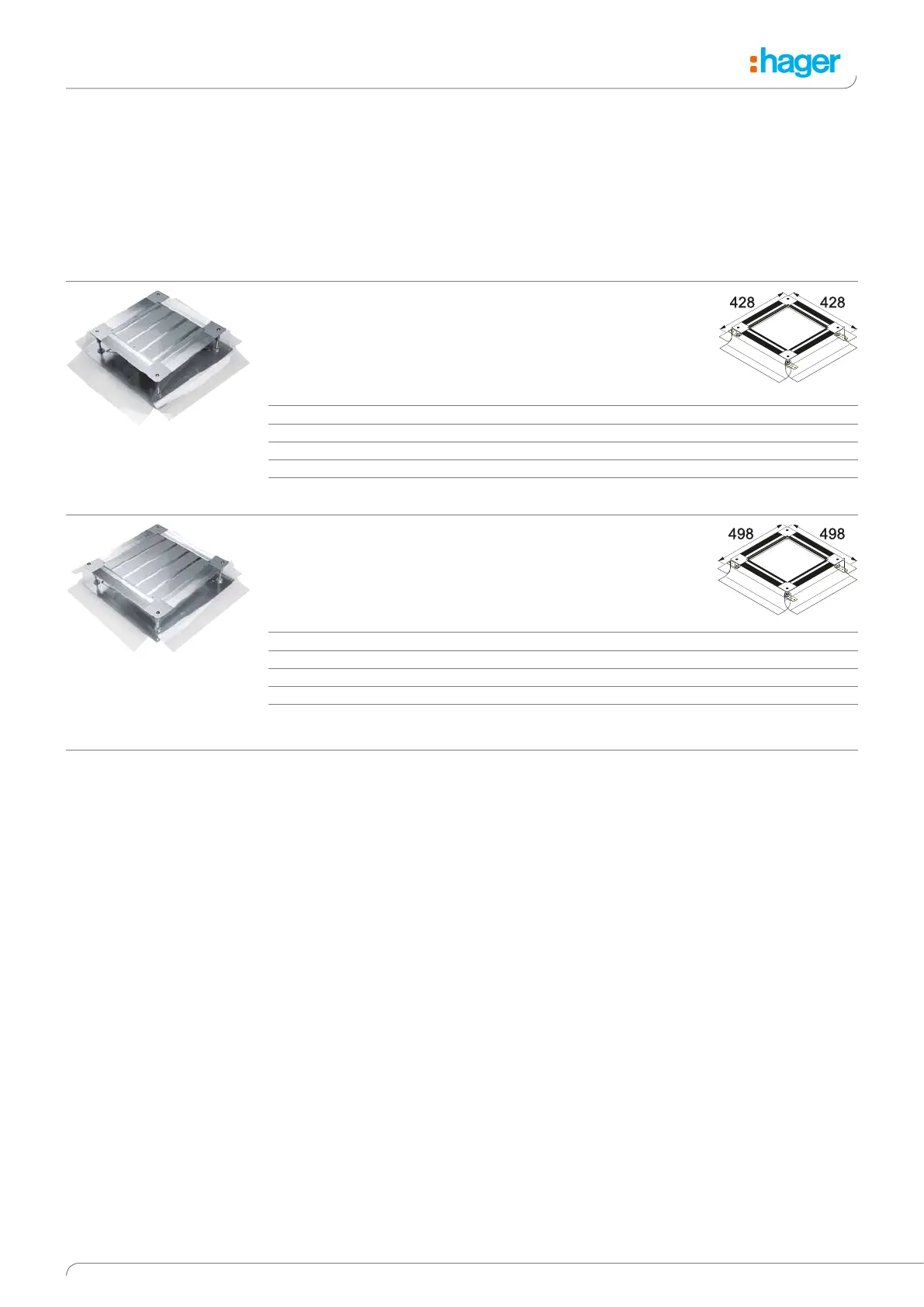

Universal junction boxes
UDB2120170
UDB3120170
- Underfloor universal junction
box in accordance with DIN EN
50085-1 and -2-2
- With internal stepless height
adjustment
- With bottom plate and flexible
transparent casing for installa-
tion in the screed layer
- Connection of underfloor trunk-
ing could not be easier – simply
cut the foil with scissors or a
knife
- Suitable for the mounting of
installation units via a fitting
frame (to be ordered sepa-
rately)
- With factory-fitted footfall noise
insulation and height-adjust-
ment set screws
- Height-adjustable from the
minimum installation height
Universal junction box with bottom plate, size 2
Properties:
- For max. 4 sets of trunking with a nominal width of 240 mm
Universal junction box with bottom plate, size 3
Properties:
- For max. 4 sets of trunking with a nominal width of 340 mm
Designation Height adjustment range [mm] PU Order no.
Underfloor box with bottom plate size 3 50-80 8 UDB3050080
Underfloor box with bottom plate size 3 75-125 5 UDB3075125
Underfloor box with bottom plate size 3 120-170 9 UDB3120170
Underfloor box with bottom plate size 3 165-215 5 UDB3165215
Underfloor box with bottom plate size 3 215-265 5 UDB3215265
Designation Height adjustment range [mm] PU Order no.
Underfloor box with bottom plate size 2 50-80 8 UDB2050080
Underfloor box with bottom plate size 2 75-125 5 UDB2075125
Underfloor box with bottom plate size 2 120-170 9 UDB2120170
Underfloor box with bottom plate size 2 165-215 5 UDB2165215
Underfloor box with bottom plate size 2 215-265 5 UDB2215265
