133Technical changes reserved
electraplan.DB-HB
electraplan.DB-HB

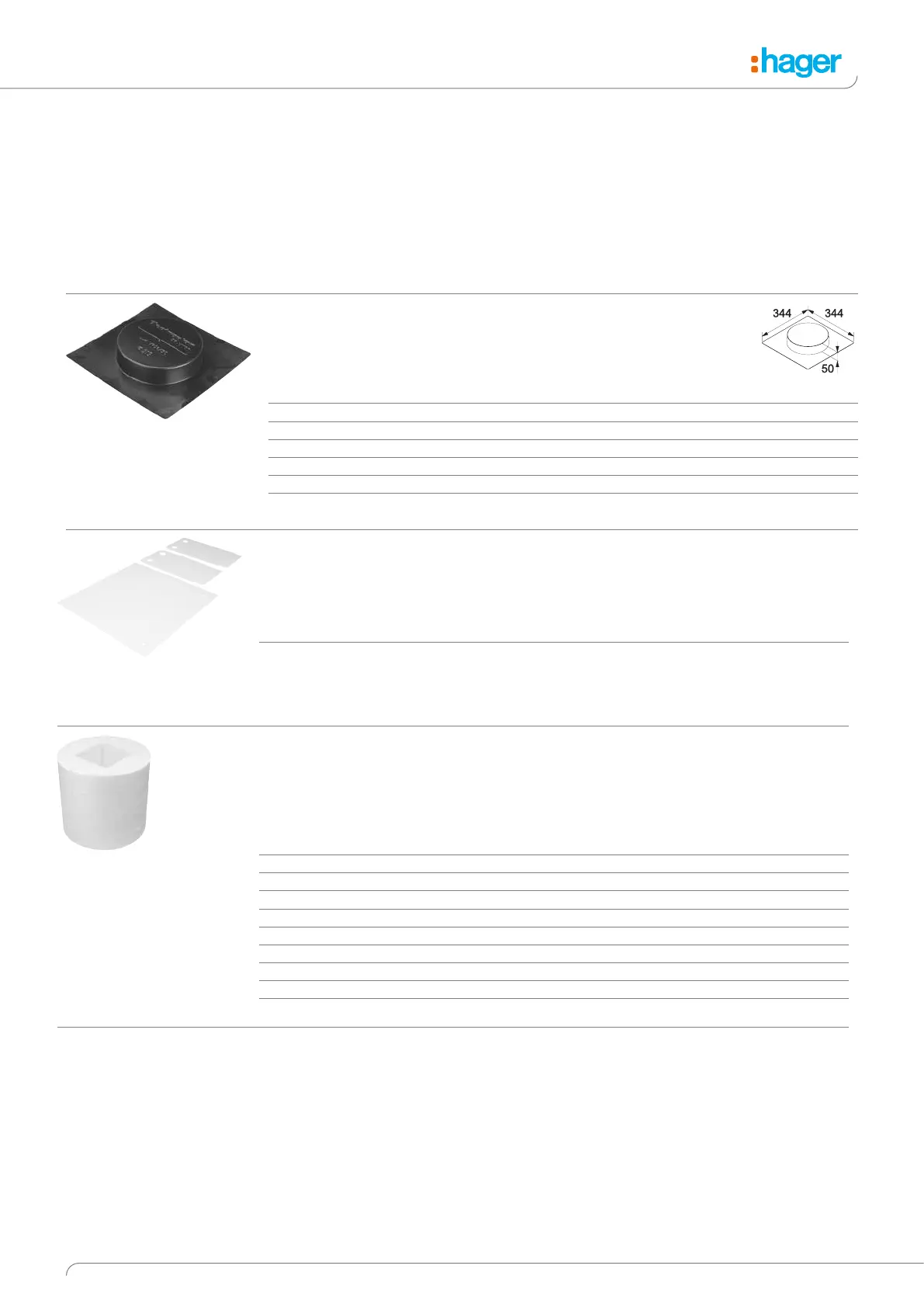

Casing elements for supply units and height-adjustable cassettes
- Standard height: 50 mm
- Casing elements also available
on request with a height of
110 mm
Material
Plastic
Shapes
R06: round 215 mm
R10: round 275 mm
R12: round 306 mm
Q06: square 200 x 200 mm
Q12: square 244 x 244 mm
E09: rectangular 200 x 253 mm
Note
- Position the casing elements
on the floor before casting the
screed
- Once the screed has set and
reached the required hardness,
cut off the protruding pType
from the casing element
SEVR0650
Casing elements for supply units and height-adjustable cassettes
Designation PU Order no.
Casing element f VR06 round 215mm H50mm 15 SEVR0650
Casing element f VR10 round 275mm H50mm 10 SEVR1050
Casing element f VR12 round 306mm H50mm 1 SEVR1250
Casing element f VQ06 square 200mm H50mm 25 SEVQ0650
Casing element f VQ12 square 244mm H50mm 1 SEVQ1250
Casing element f VE09 200x253mm H50mm 1 SEVE0950
SEVR06200
Formwork elements for service units and height adjustable cassettes
Designation PU Order no.
Formwork element VE04 147x247mm H=200mm 1 SEVE04200
Formwork element VE09 200x253mm H=200mm 1 SEVE09200
Formwork element VR06 rund 215mm H=200mm 1 SEVR06200
Formwork element VR2 rund 242mm H=200mm 1 SEVR2200
Formwork element VR10 rund 275mm H=200mm 1 SEVR10200
Formwork element VR12 rund 306mm H=200mm 1 SEVR12200
Formwork element VQ06 200x200mm H=200mm 1 SEVQ06200
Formwork element VQ12 244x244mm H=200mm 1 SEVQ12200
Formwork element VQ08 294x294mm H=200mm 1 SEVQ08200
SEGT350
Properties:
- 350 x 350 mm
- For use with e.g. cavity floors
Designation PU Order no.
Formwork element base support 350x350 mm 1 SEGT350
Properties:
- height 200 mm
- in 5 segments with 40 mm height,
divisible, can thus be matched with floor construction height
