96
Technical changes reserved
tehalit.BKB
electraplan.BK

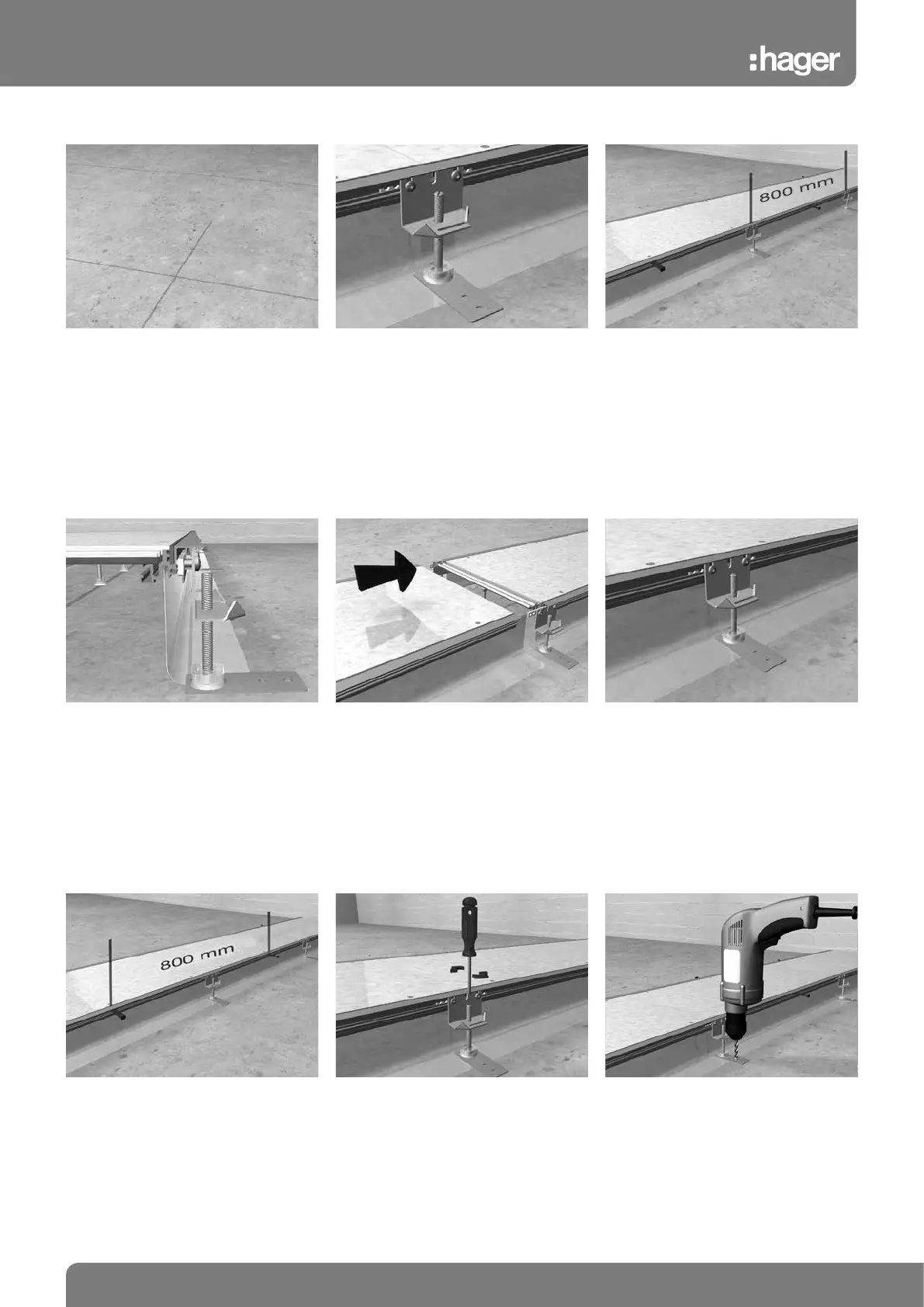

Installation instructions, Flush-floor trunking system
Mark the trunking routing
Mark the trunking routing on the slab accord-
ing to the installation plan using chalk or
string. Check the actual levelling heights on
the slab.
Assemble the levelling sets Position the levelling sets
Install the M8 set screws into the levelling
clamps. Place brackets with insulating
mounts on a level and firm surface and push
in the set screws.
The levelling clamps should be spaced at
800 mm along the trunking lateral profile.
Roughly adjust the levelling height.
Adjust the screed casing
The screed casing must be outside the trunk-
ing, extending from the trunking lateral profile
downward and vertically outward onto the
slab. The retaining tabs rest on the horizontal
part of the casing, pressing it onto the slab.
Join the trunking sections Secure the trunking sections
At the joints of the trunking sections, push
the pre-assembled cross members halfway
under the cover of the subsequent trunking
section. At this section, slacken the cover
screw and butt-join the sections.
Connect the sections using trunking connec-
tor, levelling clamp and M5 bolts. Tighten
the cover screws. The flexible screed casing
must overlap at the section joint.
Snap in the screed anchor
Snap the screed anchor into the profile
groove to stabilise the trunking lateral pro-
files. The spacing along the lateral profiles
must not exceed 800 mm.
Level the trunking Secure the retaining tabs
Adjust the top edge of the trunking lateral
profile to the required height.
Plug the retaining tabs to the slab.
