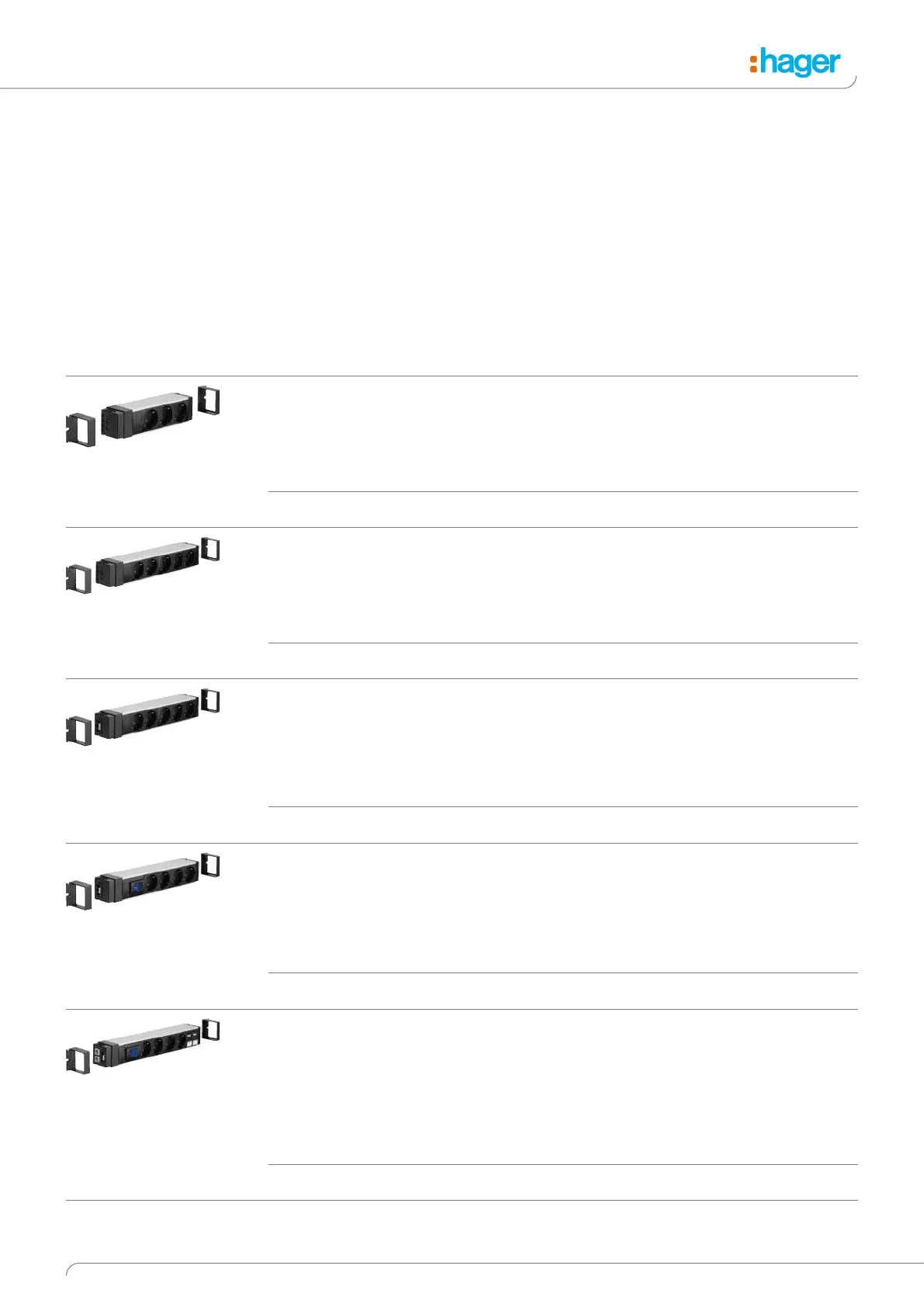

256 Technical adaptations possible
Workplace
connection system
Universal connection blocks
- 5 variants for practical and
flexible connection of a
workplace to power and data
supplies
- Sockets SCHUKO
®
16 A / 230 V
- Switch 16 (8) A
- Data connections Cat.6 (to
250 MHz) STP Class E Link
Performance as per ISO / IEC
11801 and EN50173 dust
protection flap integrated in
module
- Flexible installation options -
placing, screwing, glueing or
using cable ties
- Mounting frames rotatable in
90° steps up to 360°
Connections
- Power: Triple socket block –
clamp technology all other var-
iants - WAGO-WINSTA plug-in
technology
- 5-fold socket block - both vari-
ants available
- Data: RJ45 sockets
Material
- Main body aluminium
- Power and data connections,
end caps and mounting frame
from plastic
Delivery colours
- Main body, aluminium,
anodised
- Sockets and data connections,
black
- End caps and mounting frames
RAL 9011, graphite black
NRS0003B00
Universal connection block with 3 sockets SCHUKO
®
, clamp technology
- 3 sockets SCHUKO
®
- Connection via clamp technology
- Dimensions: 217.5 x 54 x 54 mm, with mounting frames 237.5 mm
Designation UP Order no.
Connection block 3 sockets terminals aluminium 1 NRS0003B00
NRS0005B00
Universal connection block with 5 sockets SCHUKO
®
, clamp technology
- 5 sockets SCHUKO
®
- Connection via clamp technology
- Dimensions: 307 x 54 x 54 mm, with mounting frames 327 mm
Designation UP Order no.
Connection block 5 sockets terminals aluminium 1 NRS0005B00
NRS0005D00
Universal connection block with 5 sockets SCHUKO
®
, WAGO-WINSTA
- 5 sockets SCHUKO
®
- Connection via WAGO-WINSTA plug-in technology
- Dimensions: 307 x 54 x 54 mm, with mounting frames 327 mm
Designation UP Order no.
Connection block 5 sockets Wago aluminium 1 NRS0005D00
NRS0004D20
Universal connection block with switch and 4 sockets SCHUKO
®
, WAGO-WINSTA
- Switch plus 4 sockets SCHUKO®
- Connection via WAGO-WINSTA plug-in technology
- Dimensions: 307 x 54 x 54 mm, with mounting frames 327 mm
Designation UP Order no.
Connection block 4 sockets switched Wago aluminium 1 NRS0004D20
NRS6204D20
Universal connection block with switch and 4 sockets SCHUKO
®
and 2 data connections
- Switch plus 4 sockets SCHUKO®
- 2 data connections Cat.6
- Power connection via WAGO-WINSTA plug-in technology
- Data connection via RJ45 sockets
- Dimensions: 351.5 x 54 x 54 mm, with mounting frames 371.5 mm
Designation UP Order no.
Connection block 4 sockets cat.6 Wago aluminium 1 NRS6204D20
