Installation instructions, UDS-ZuHause

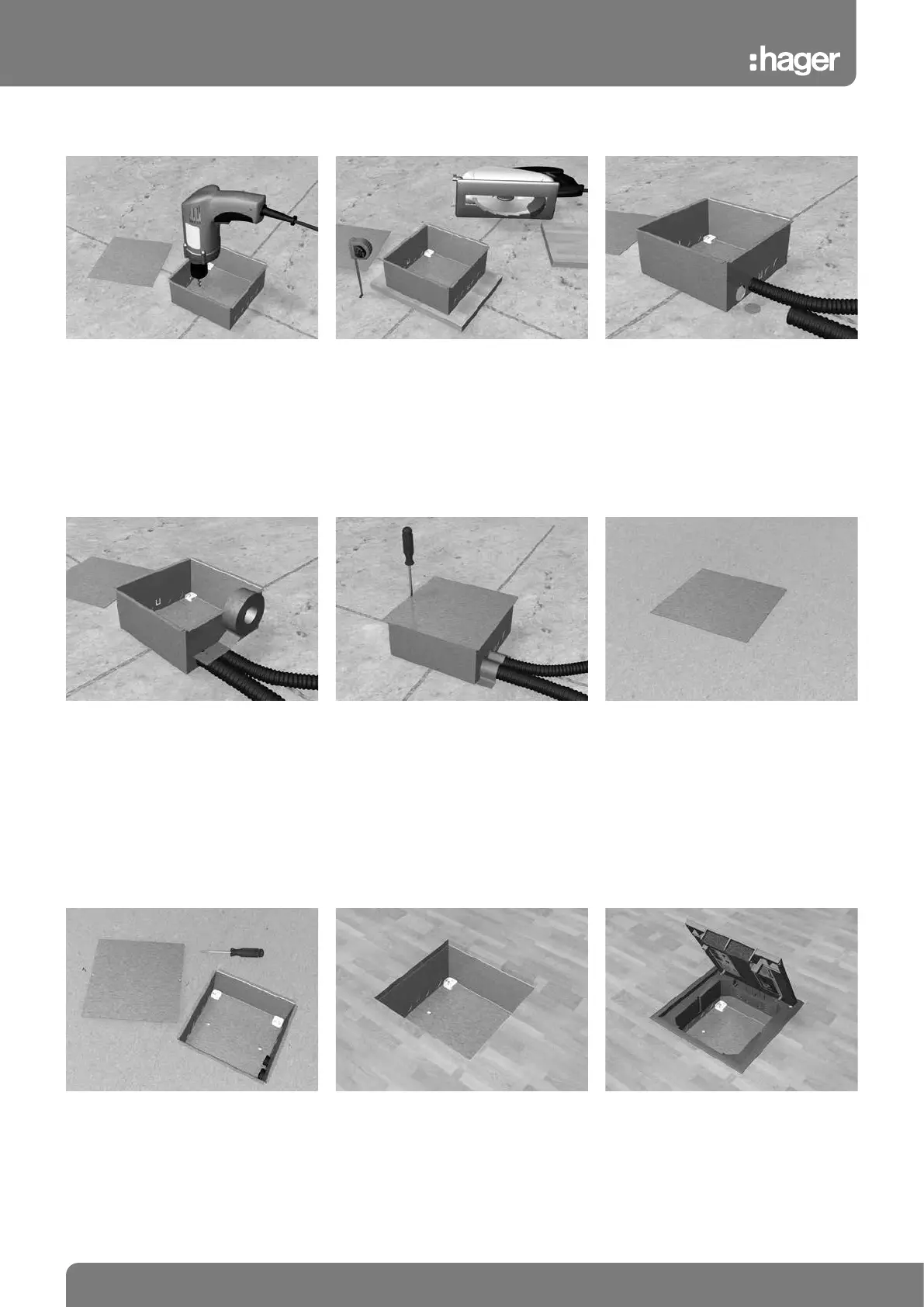

Install sheet-metal casing
Fasten the casing to the slab with two
screws.
Underlay sheet-metal casing Connect the installation pipes
If required, underlay the casing to achieve
the required height, depending on the
planned screed height.
Knock out the blankings for installation pipes
and insert the installation pipe. Blankings fit
pipes M25 or M20.
Seal the sheet-metal casing
Seal the sheet-metal casing using adhesive
tape to prevent screed ingress.
Install the protective cover Lay the screed
Secure the protective cover to the casing
using two screws. The cover serves as pro-
tection during screed-laying.
Lay the screed flush with the upper edge of
the sheet-metal casing.
Remove the protective cover
Remove the protective cover after the screed
has hardened completely.
Install the flooring Insert service unit VQ06
Install the flooring, leaving an installation
opening of 200 x 200 mm.
Place service unit VQ06 into the installation
opening.
