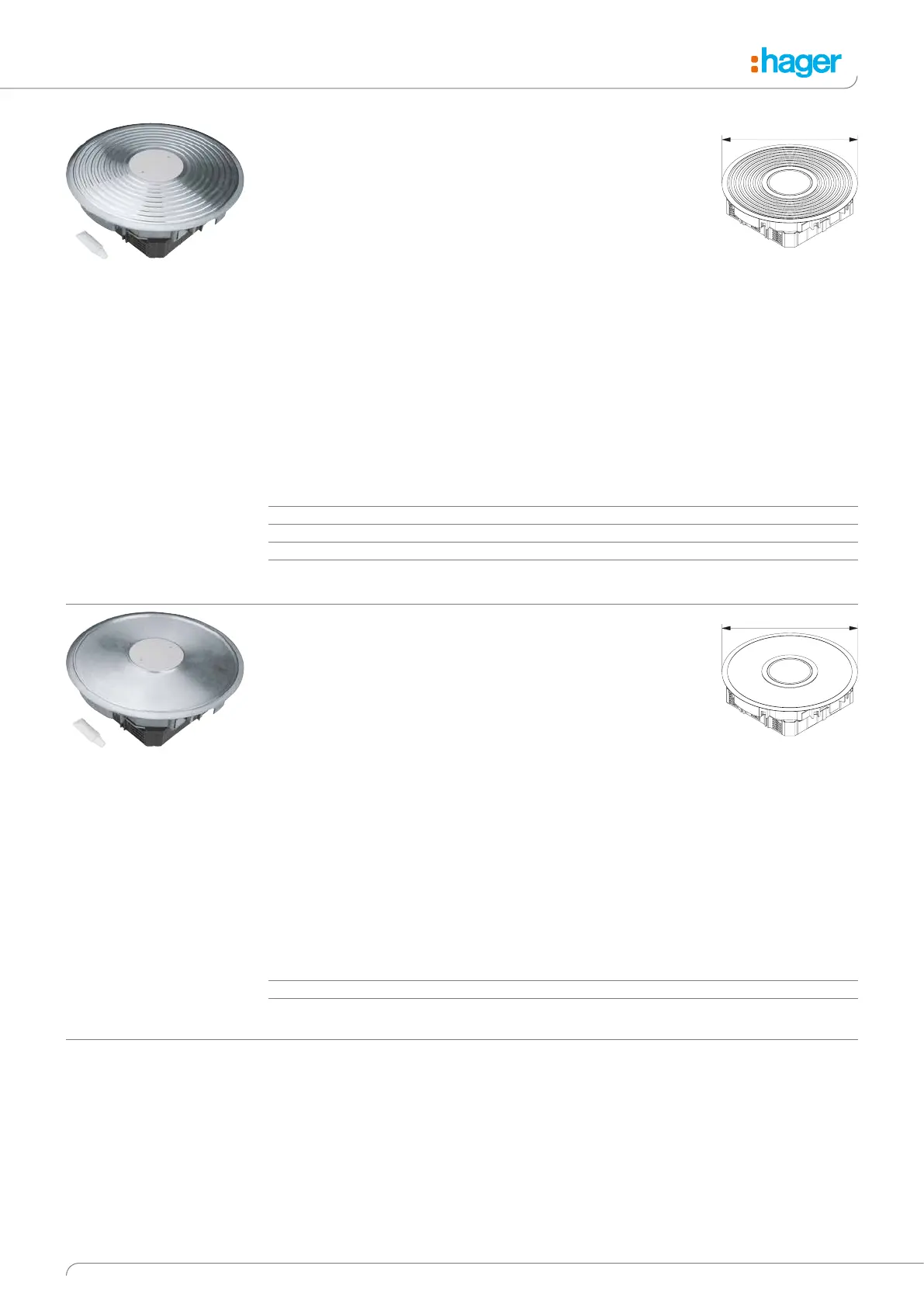

Service units for wet-cleaned floors
VANR1200
Service unit for wet-cleaned floors for the installation
tube cable outlet made of aluminium
325
Ø
Properties:
- Service unit with flooring frame made of aluminium for
wet-cleaned floors
- Protection rating IP 66
- Full-aluminium cover with grooved structure
- For up to 12 installation devices in
3 device casings GTVR400, GBVR400 or GTVD300
- Device casings can be lowered in increments down to 18 mm
- Mounting kit for double floors upon request
- A tube cable outlet made of aluminium must be ordered
as an option if required
- Outer dimension of flooring frame: Ø 325 mm
- Installation opening dimension: Ø 306 mm
- Installation height from 90 mm for GBVR400 and GTVD300
- Installation height from 95 mm for GTVR400
- Material: Aluminium
- Variant:
R - Aluminium grooved structure
R ts - aluminium grooved structure with deep black accents
HB - with mounting kit for cavity floor
BD - with mounting kit for junction boxes
Designation PU Order no.
Serv.unit R12 w set HB wet Al-Tub R 1 VANR1200
Serv.unit R12 w set BD wet Al-Tub R 1 VANR1201
Serv.unit R12 w set HB wet Al-Tub R ts 1 VANR12009005
Serv.unit R12 w set BD wet Al-Tub R ts 1 VANR12019005
VANR12003
Service unit for wet-cleaned floors for the installation
tube cable outlet made of aluminium
325
Ø
Properties:
- Service unit with flooring frame made of aluminium for
wet-cleaned floors
- Protection rating IP 66
- Full-aluminium cover, also fits bonded floorings of 3 mm
thickness (e. g. PVC, Linoleum or chequered aluminium panel)
- For up to 12 installation devices in
3 device casings GTVR400, GBVR400 or GTVD300
- Device casings can be lowered in increments down to 18 mm
- Mounting kit for double floors upon request
- A tube cable outlet made of aluminium must be ordered as an
option if required
- Outer dimension of flooring frame: Ø 325 mm
- Installation opening dimension: Ø 306 mm
- Installation height from 90 mm for GBVR400 and GTVD300
- Installation height from 95 mm for GTVR400
- Material: Aluminium
- Variant:
HB - with mounting kit for cavity floor
BD - with mounting kit for junction boxes
Designation PU Order no.
Serv.unit R12 w set HB wet Al-Tub 3mm 1 VANR12003
Serv.unit R12 w wet BD wet Al-Tub 3mm 1 VANR12013
