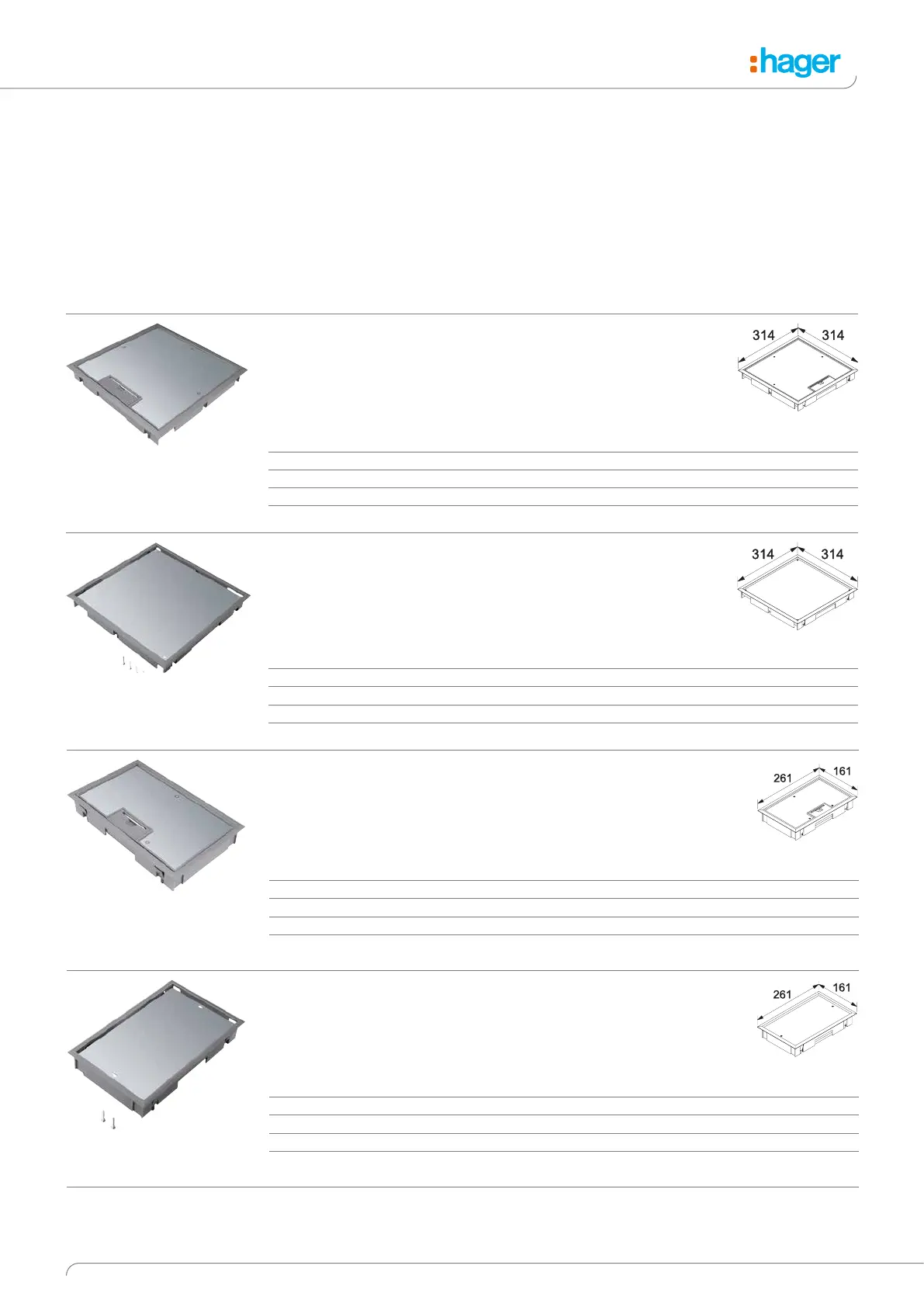

electraplan.VE-EE Hinged covers and blank covers
for ultra-low installation depths
- Hinged cover with carpet frame
made of polyamide in accord-
ance with DIN EN 50085-1 and
-2-2
- Mounting kit with a clamping
range of 5 - 15 mm plus the
flooring thickness stated on
the hinged cover for junction
boxes, flush floor trunking sys-
tem, floor-mounted trunking
system
- For 5 mm or 12 mm flooring
height
- Installation height: from 50 mm
Material
Polyamide
Available colours
RAL 7011, iron grey
RAL 9005, deep black
Note
Other flooring thicknesses and
mounting systems are available
upon request
Designation PU Order no.
Hinged cover Q08 for 5mm flooring eg 4 KDQ08057011
Hinged cover Q08 for 5mm flooring ts 4 KDQ08059005
Hinged cover Q08 for 12mm flooring eg 4 KDQ08127011
Hinged cover Q08 for 12mm flooring ts 4 KDQ08129005
KDQ08057011
Hinged cover KDQ08 for ultra-low installation depth
Properties:
- For up to 8 installation devices in 4 device casings GBES2 or GBM5050
- Outer dimension of flooring frame: 314 x 314 mm
- Installation dimensions: 294 x 294 mm
Designation PU Order no.
Blank cover Q08 for 5mm flooring thickness eg 1 BDQ08057011
Blank cover Q08 for 5mm flooring thickness ts 1 BDQ08059005
Blank cover Q08 for 12mm flooring thickness eg 1 BDQ08127011
Blank cover Q08 for 12mm flooring thickness ts 1 BDQ08129005
BDQ08057011
Blank cover BDQ08 for ultra-low installation depth
Properties:
- Outer dimension of flooring frame: 314 x 314 mm
- Installation dimensions: 294 x 294 mm
Designation PU Order no.
Hinged cover E04 for 5mm flooring thickness eg 9 KDE04057011
Hinged cover E04 for 5mm flooring thickness ts 9 KDE04059005
Hinged cover E04 for 8mm flooring thickness eg 9 KDE04087011
Hinged cover E04 for 8mm flooring thickness ts 9 KDE04089005
KDE04057011
Hinged cover KDE04 for ultra-low installation depth
Properties:
- For up to 4 installation devices in 2 device casings GBES2 or GBM5050
- Outer dimension of flooring frame: 161 x 261 mm
- Installation dimensions: 147 x 247 mm
Designation PU Order no.
Blank cover E04 for 5mm flooring thickness eg 1 BDE04057011
Blank cover E04 for 5mm flooring thickness ts 1 BDE04059005
Blank cover E04 for 8mm flooring thickness eg 1 BDE04087011
Blank cover E04 for 8mm flooring thickness ts 1 BDE04089005
BDE04057011
Blank cover BDE04 for ultra-low installation depth
Properties:
- Outer dimension of flooring frame: 161 x 261 mm
- Installation dimensions: 147 x 247 mm
