161Technical changes reserved
electraplan.VE-EE
electraplan.VE-EE

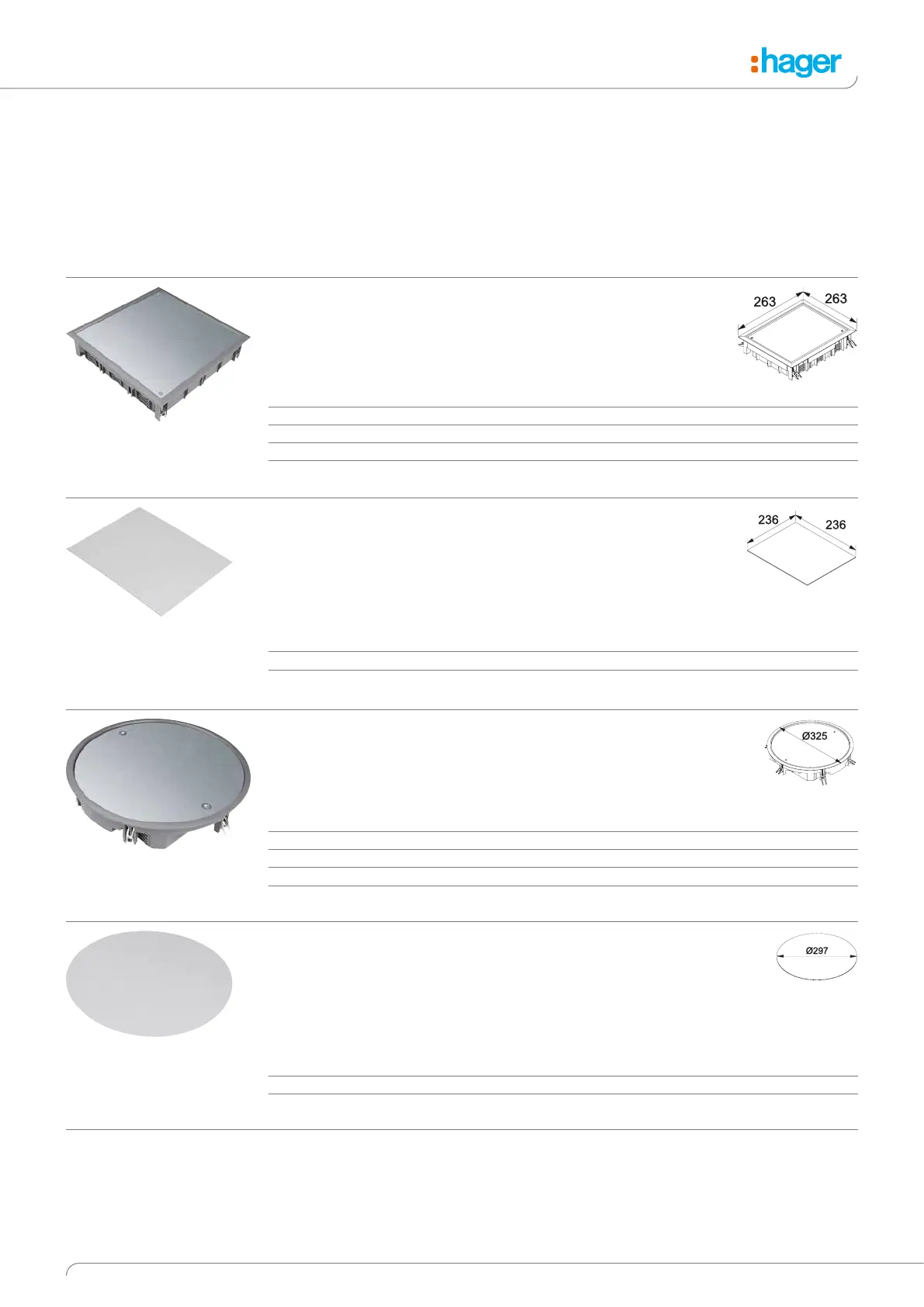

Covers
Properties:
- Outer dimension: 263 x 263 mm
- Installation dimensions: 244 x 244 mm
- Made of polyamide in accord-
ance with DIN EN 50085-1
and -2-2 for dry rooms with
dry-cleaned floors
- With carpet frame for
5 or 12 mm flooring thickness
- Universal mounting kit for
installation in junction boxes,
trunking systems, double floors
or cavity floors
- Minimum installation depth with
5 mm flooring recess:
60 mm
- Minimum installation
depth with: 12 mm
flooring recess: 65 mm
Material
Polyamide
Available colours
RAL 7011, iron grey
RAL 9005, deep black
VDQ12057011
Cover VDQ12
Designation PU Order no.
Cover Q12 f 5mm flooring eg 4 VDQ12057011
Cover Q12 f 5mm flooring ts 4 VDQ12059005
Cover Q12 f 12mm flooring eg 3 VDQ12127011
Cover Q12 f 12mm flooring ts 3 VDQ12129005
Properties:
- Cover inlay made of cardboard to serve as spacer
between cover and flooring
- Dimensions: 236 x 236 mm
- Material thickness: 1 mm - P1
2 mm - P2
Cover inlay for cover VDQ12
Designation PU Order no.
Cover inlay made of cardboard for VDQ12 1mm 300 VDDEQ12P1
Cover inlay made of cardboard for VDQ12 2mm 300 VDDEQ12P2
Properties:
- Outer dimensions: Ø 325 mm
- Installation dimensions: Ø 306 mm
VDR12057011
Cover VDR12
Designation PU Order no.
Cover R12 f 5mm flooring eg 4 VDR12057011
Cover R12 f 5mm flooring ts 4 VDR12059005
Cover R12 f 12mm flooring eg 3 VDR12127011
Cover R12 f 12mm flooring ts 3 VDR12129005
Designation PU Order no.
Cover inlay made of cardboard for VDR12 1mm 300 VDDER12P1
Cover inlay made of cardboard for VDR12 2mm 300 VDDER12P2
Properties:
- Cover inlay made of cardboard to serve as spacer
between cover and flooring
- Dimensions: Ø 297 mm
- Material thickness: 1 mm - P1
2 mm - P2
VDDER12P1
Cover inlay for cover VDR12
VDDEQ12P1
