143
Technical changes reserved
electraplan.DB-HB
electraplan.DB-HB

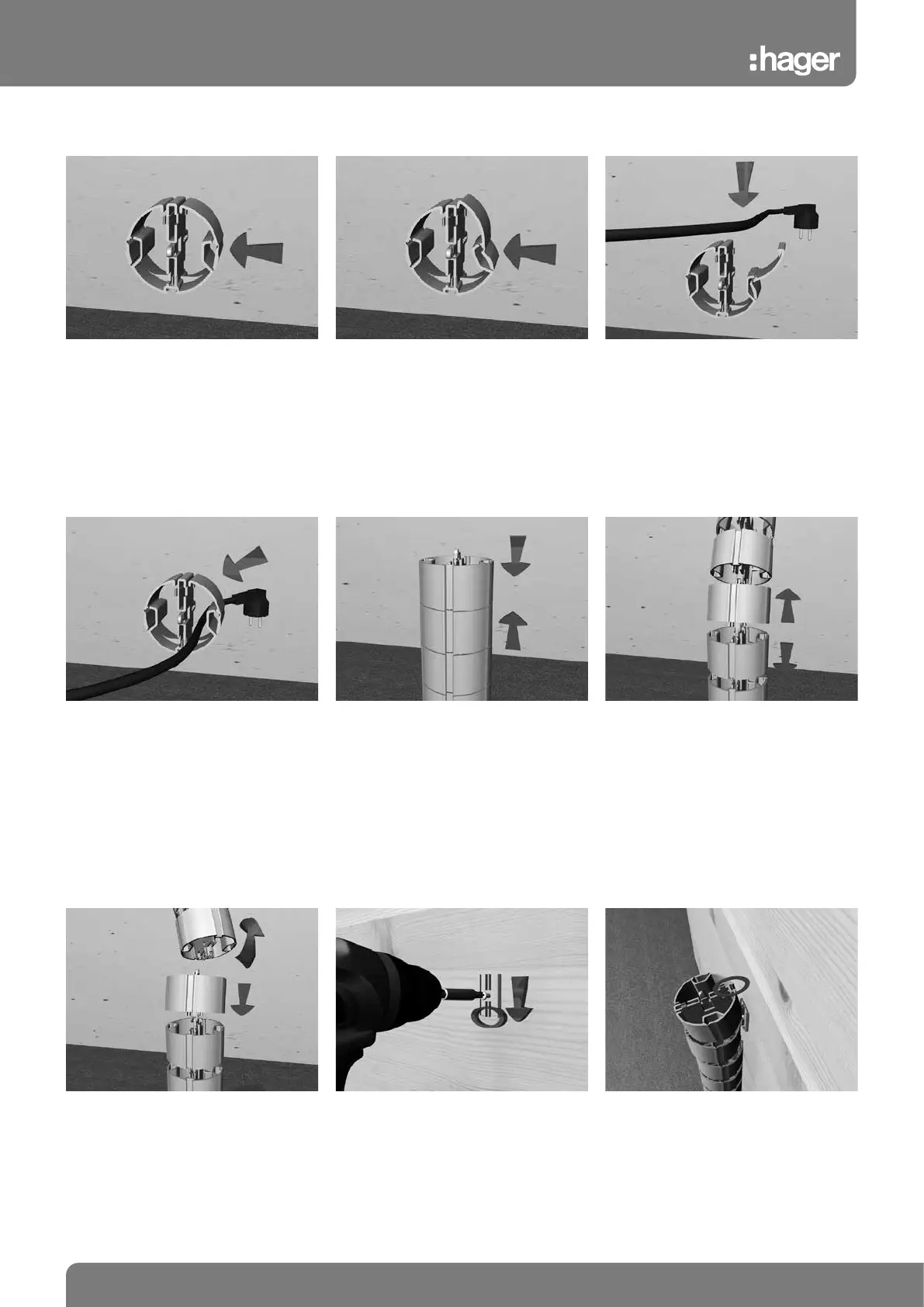

Installation instructions for round chain
Push in the round chain
Push in the round chain at the sides.
Open the round chain Thread in the cables
Press the lateral perforation to open the
chain‘s snap mechanism.
Insert cables from above into the opening.
Close the round chain
Push the upper lid of the round chain back to
close it. The lid returns to its original position.
Create a rigid connection Create a flexible connection
Push the links of the round chain together to
create a rigid connection.
To make the round chain flexible, pull to
release the catch mechanisms. The round
chain is then flexible in all directions.
Split the round chain
Round chain links can be separated by turn-
ing and pulling.
Install the wall mount Attach the round chain
Secure the wall mount to the wall using a
screw. The wall mount must be attached in
such a way that the guide slot is closed at
the bottom.
Insert the round chain link with the slotted
side from above into the wall mount.
