Technical changes reserved
tehalit.BKB
T-branch made by the customer
Please order the following
additional parts:
1 x connection set BKZVS90
Create a cut-out on one side of
the trunking section A that fits
the width of the branched-out
trunking section B.

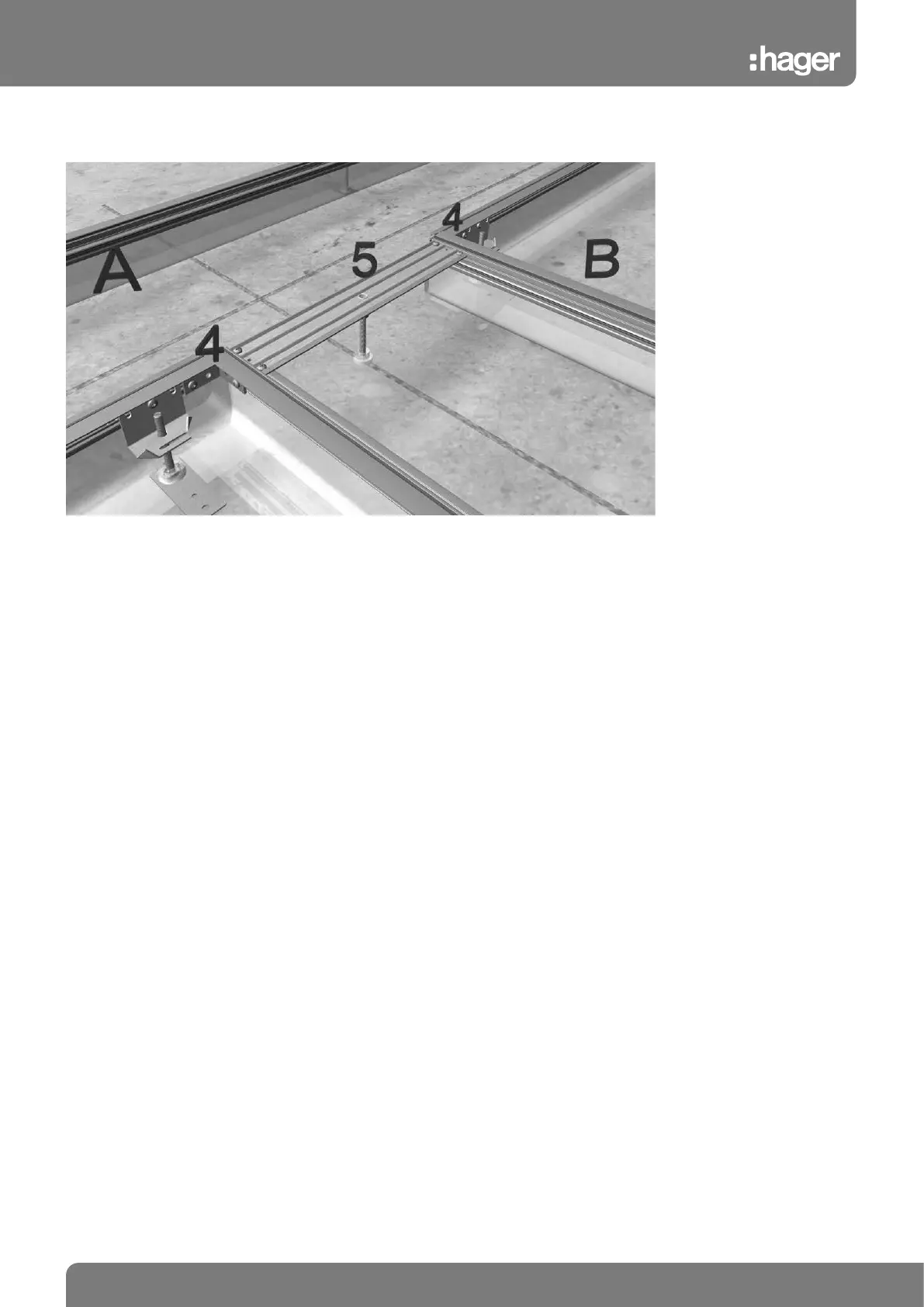

Insert the branched-out trunking
section B into the cut-out.
Join both trunking sections using
an angled connector (4).
Attach the cross member (5)
to the trunking lateral profile of
trunking section B. The cross
member must support the cov-
ers of trunking sections A and
B. Cross members installed in
trunking sections wider than
350 mm must be fitted with the
levelling support.
Locate the levelling brackets at
an even spacing of max. 800 mm
and secure them to the trunking
using connectors.
T-branch made by the customer for installation heights greater than 40 mm
electraplan.BK
Installation instructions, T-branch made by the customer
