Installation instructions, Flush-floor trunking system

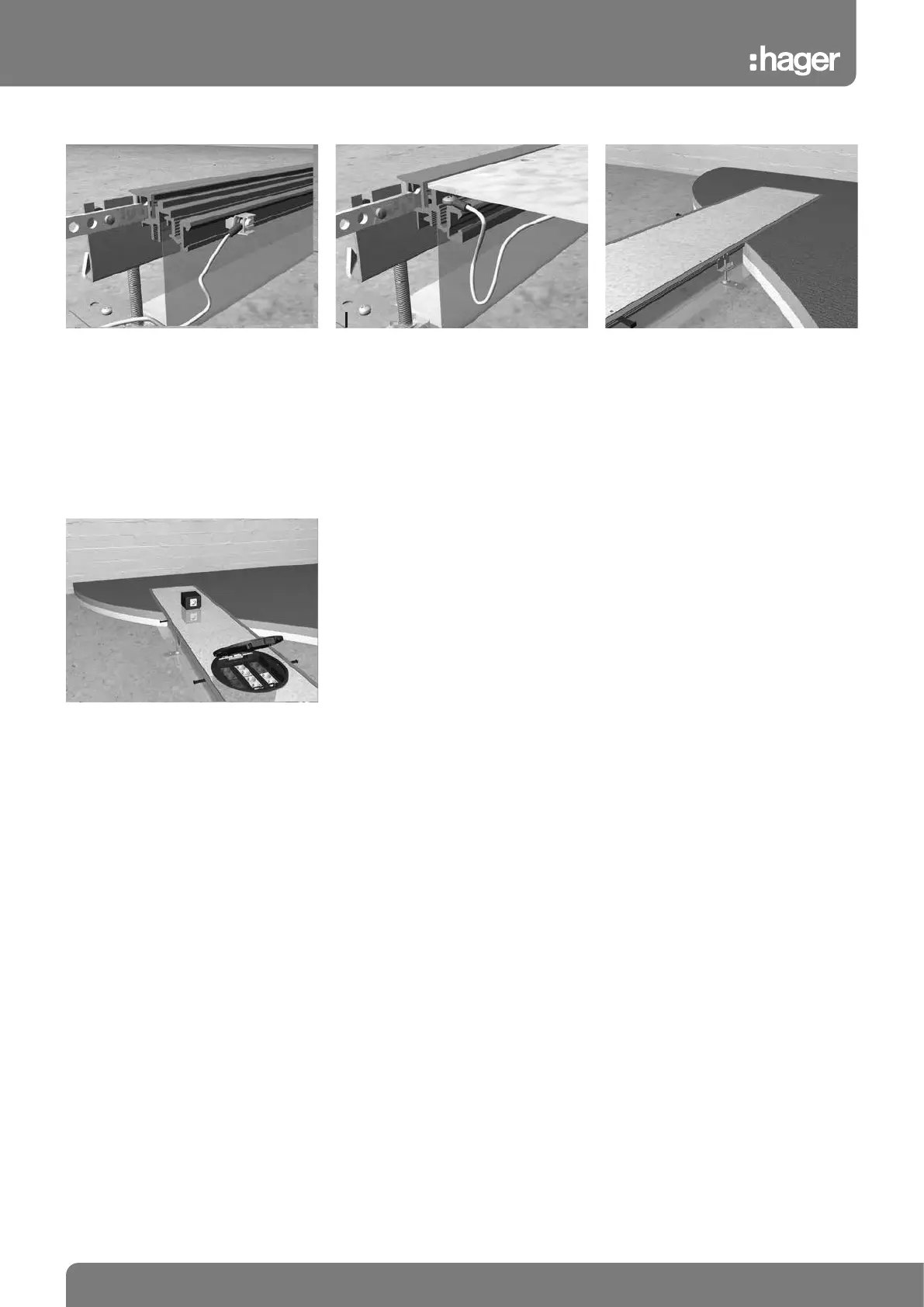

Earthing measures for trunking BKFD
During installation of trunkings, push the
connector clamps (available as option) from
the side into the inner profile slot. Remove
blank cover from trunking and tighten bolt
M3 at the connector clamp. Connect the
earth conductor cable connector clamp to
the earthing measure.
Blank cover with cover snap fastener Lay the screed
The earth conductor cable (available as op-
tion) is welded to the blank cover with cover
snap at the factory. After installation, remove
the blank covers from the trunking and se-
cure the earth conductor cable of the blank
cover to the profile using the eyelet.
Install the screed up to the top edge of the
trunking profiles. Blank covers can be fitted
with flooring using adhesive.
Install installation units
Installation units such as Service units or
floor-mounting pedestal boxes can be in-
stalled in the trunking. This requires replacing
the blank cover by an installation cover with
a corresponding opening.
