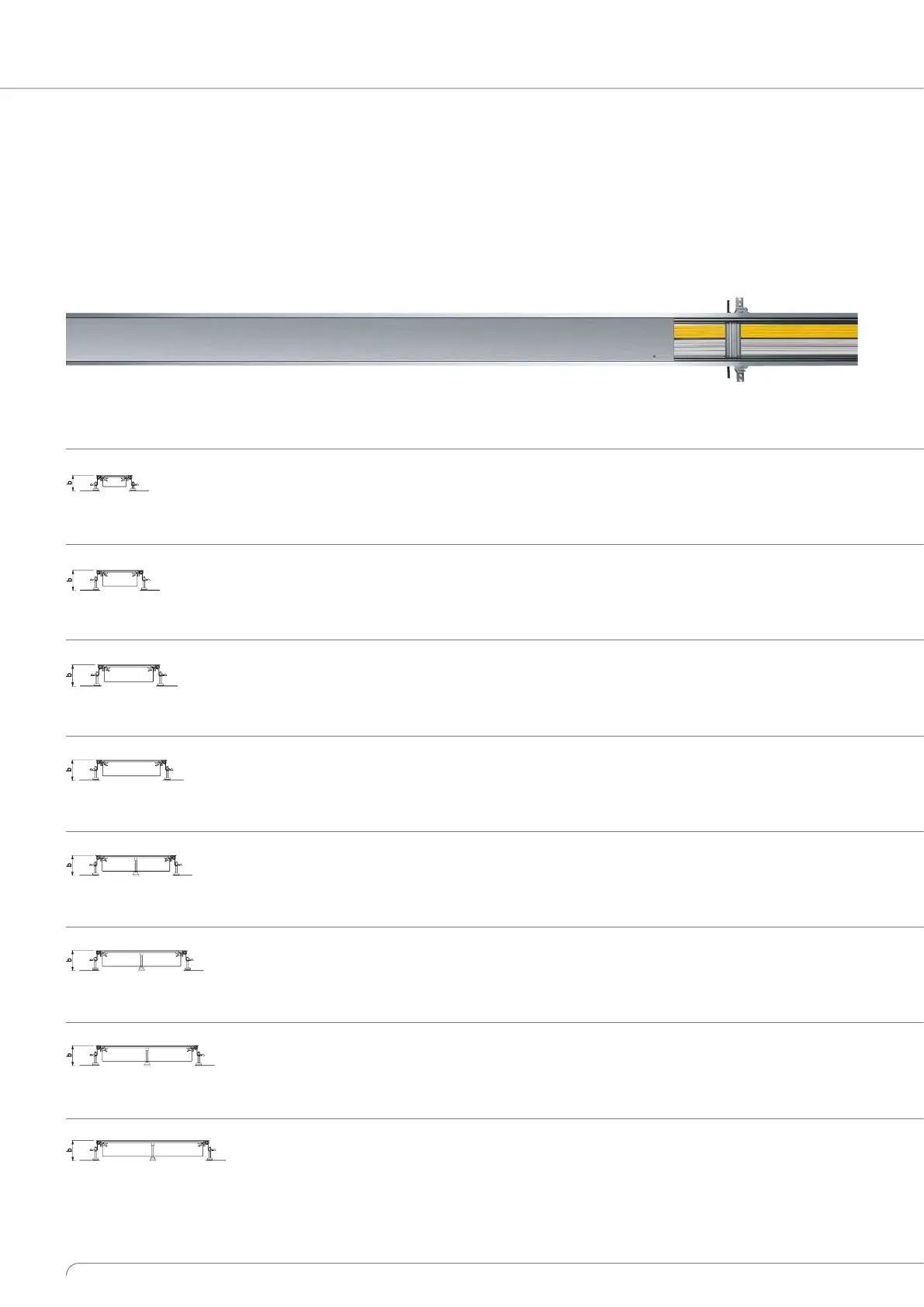

electraplan.BK – screed-flush trunking system
with trunking bottom and sealing option
- BKWD: Complete trunking with
trunking bottom and sealing
option for screed-flush installa-
tion in dry rooms
- Trunking bottom: 1 mm sheet
metal, galvanised in accord-
ance with DIN EN 10327
- Floor-flush installation units
can be installed on trunking
with an adjustment range of
70 - 110 mm or higher.
- Blank covers and covers with
blanking: Galvanised sheet
metal in accordance with
DIN EN 10327, material thick-
ness 3 mm, length 800 mm,
fastening bores countersunk on
one side to facilitate individual
choice of floor coverings
- Abutting edge for covering:
PC/ABS halogen-free,
0 or 4 mm high, grey colour,
flush-mounted
- Trunking levelling height from
30 mm with footfall sound insu-
lation from 45 mm
- With factory-fitted levelling
clamps, sealing tape, foot-
fall sound insulation and set
screws enclosed
- Fixed inserted sheet metal par-
tition wall available on request
Nominal size
150
200
250
300
350
400
500
600
BKWD
Levelling height b
40 - 60 mm
Sheet metal
BKWD
Levelling height b
50 - 70 mm
Sheet metal
BKWD
Levelling height b
60 - 100 mm
Sheet metal
BKWD
Levelling height b
70 - 110 mm
Sheet metal
BKWD
Levelling height b
80 - 120 mm
Sheet metal
BKWD
Levelling height b
90 - 130 mm
Sheet metal
BKWD150040
PU 24 m
BKWD150050
PU 24 m
BKWD150060
PU 24 m
BKWD200060
PU 24 m
BKWD250060
PU 24 m
BKWD300060
PU 24 m
BKWD200070
PU 24 m
BKWD250070
PU 24 m
BKWD300070
PU 24 m
BKWD500070
PU 24 m
BKWD600070
PU 24 m
BKWD500060
PU 24 m
BKWD600060
PU 24 m
BKWD350060
PU 24 m
BKWD350070
PU 24 m
BKWD400060
PU 24 m
BKWD400070
PU 24 m
BKWD200080
PU 24 m
BKWD250080
PU 24 m
BKWD300080
PU 24 m
BKWD500080
PU 24 m
BKWD600080
PU 24 m
BKWD350080
PU 24 m
BKWD400080
PU 24 m
BKWD200090
PU 24 m
BKWD250090
PU 24 m
BKWD300090
PU 24 m
BKWD500090
PU 24 m
BKWD600090
PU 24 m
BKWD350090
PU 24 m
BKWD400090
PU 24 m
