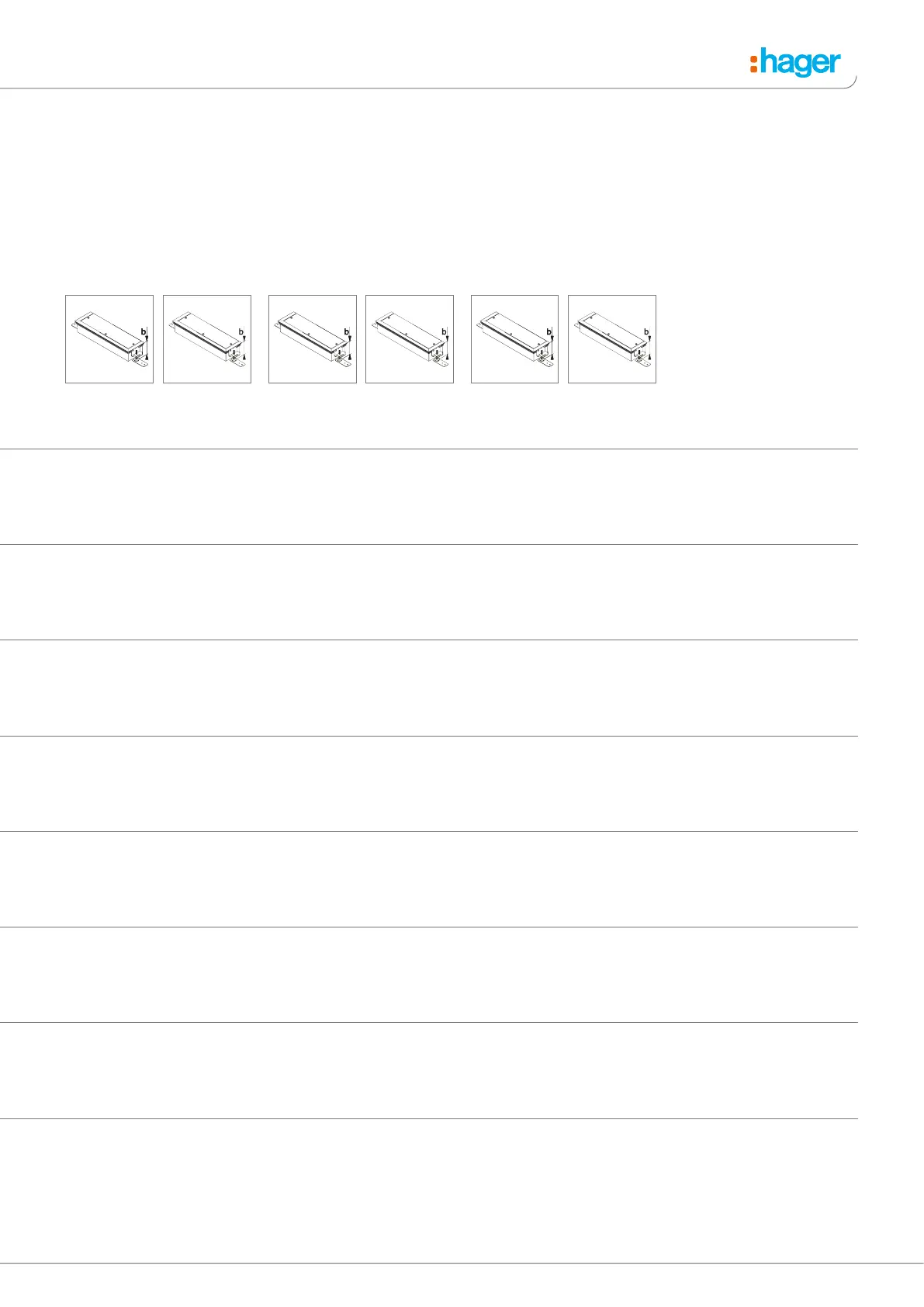

65Technical changes reserved
electraplan.BK
Note
- The blank covers are reinforced by load-bearing cross members
located underneath them.
- Optional snap fastener on the blank cover
- The load-bearing capacity for components installed flush with
the floor is 2kn, a small amount of bending is permissible.
- End piece with trunking bottom as termination for screed-flush
trunking, for connection to the end of the trunking - With factory-
fitted levelling clamps, footfall sound insulation and set screws
enclosed
BKW end piece
Levelling height b
40 - 60 mm sheet
metal
BKW end piece
Levelling height b
50 – 70 mm
Sheet metal
BKW end piece
Levelling height b
60 – 100 mm
Sheet metal
BKW end piece
Levelling height b
70 – 110 mm
Sheet metal
BKW end piece
Levelling height b
80 – 120 mm
Sheet metal
BKW end piece
Levelling height b
90 – 130 mm
Sheet metal
BKWE200070
PU 1 pc
BKWE200080
PU 1 pc
BKWE200090
PU 1 pc
BKWE250070
PU 1 pc
BKWE250080
PU 1 pc
BKWE250090
PU 1 pc
BKWE300070
PU 1 pc
BKWE300080
PU 1 pc
BKWE300090
PU 1 pc
BKWE350070
PU 1 pc
BKWE350080
PU 1 pc
BKWE350090
PU 1 pc
BKWE400070
PU 1 pc
BKWE400080
PU 1 pc
BKWE400090
PU 1 pc
BKWE500070
PU 1 pc
BKWE500080
PU 1 pc
BKWE500090
PU 1 pc
BKWE150070
PU 1 pc
BKWE150060
PU 1 pc
BKWE200060
PU 1 pc
BKWE250060
PU 1 pc
BKWE300060
PU 1 pc
BKWE350060
PU 1 pc
BKWE400060
PU 1 pc
BKWE500060
PU 1 pc
BKWE600060
PU 1 pc
BKWE600070
PU 1 pc
BKWE600080
PU 1 pc
BKWE150050
PU 1 pc
BKWE150040
PU 1 pc
BKWE600090
PU 1 pc
Standard length
2400 mm
Material
Galvanised sheet metal,
galvanised in accordance with
DIN EN 10327
Form of delivery
Up to width 300 mm, upper parts
and lower parts are delivered
assembled. Above width
350 mm, for weight reasons,
the trunking upper parts are
delivered separate.
