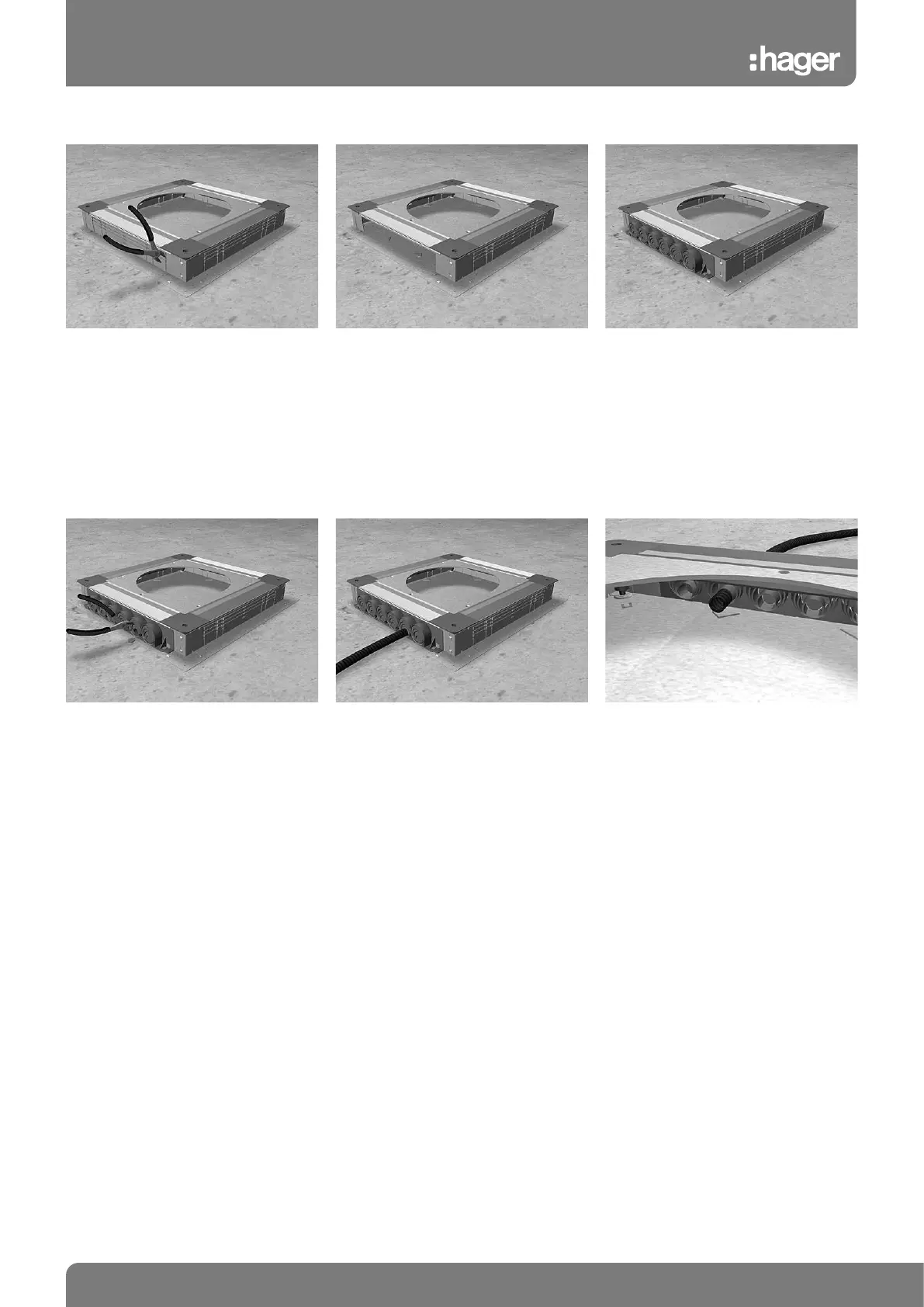

Installation instructions, Pipe inlet UDS32050RE
Cut out the sidewall
Notch the sidewall along the outermost per-
foration using a wire cutter.
Remove the sidewall Snap in the pipe inlet
Remove cut-out sheet metal from sidewall. From the front face, snap pipe inlet UDS3 RE
20-50 into the lugs provided. The connection
does not require any screws.
Notch the pipe inlet
Notch the perforated plugs to the required
diameter using a wire cutter or utility cutter.
Insert cable conduit Position cable conduit
Insert the cable conduit into the opening. Let the cable conduit protrude approximately
1-2 cm into the inside of the junction box.
Then attach the cable conduit outside the
junction box to the slab to prevent it from
floating.
