34
Technical changes reserved
electraplan.UK
electraplan.UK

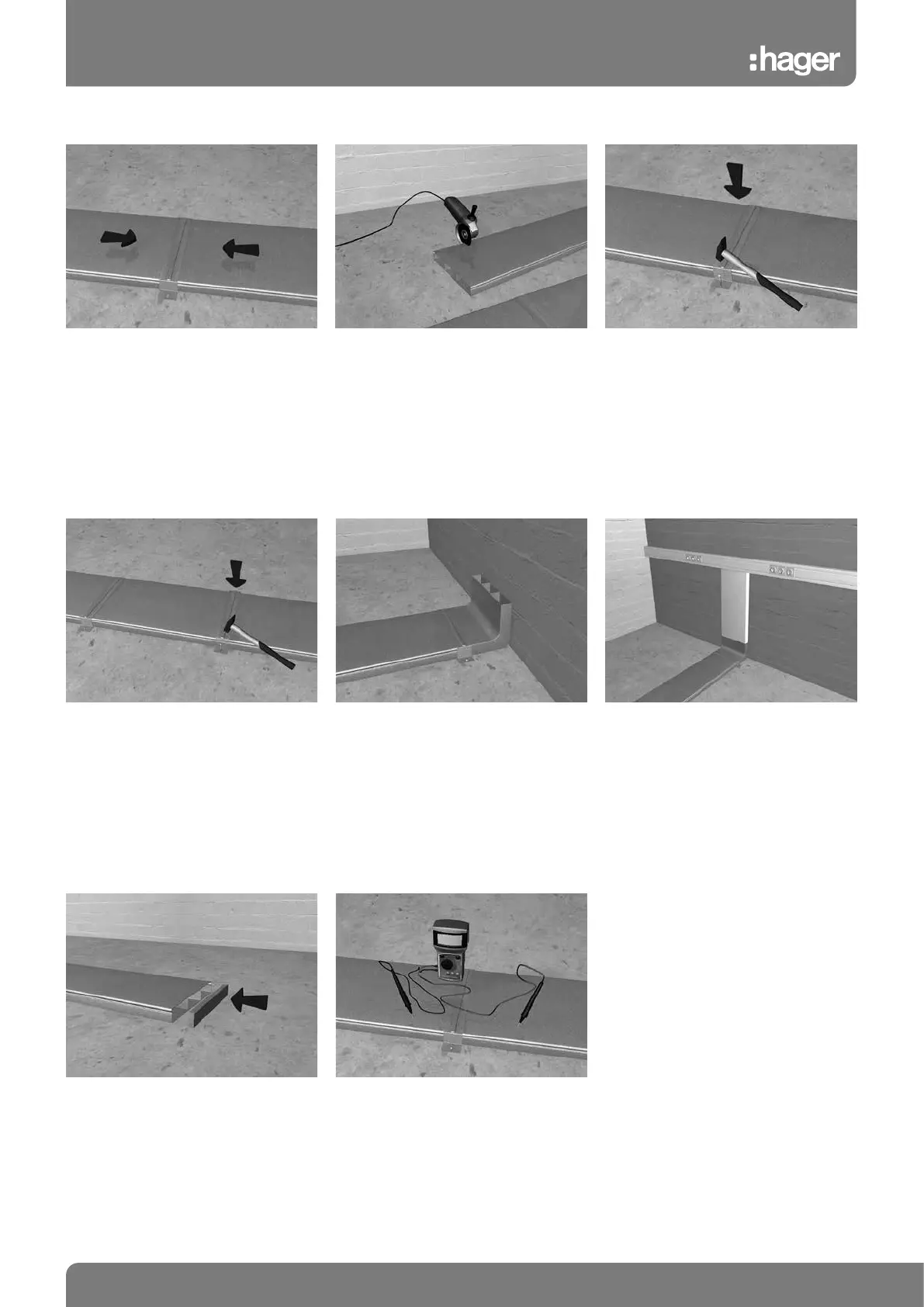

Installation instructions
Lay the trunking
Lay the trunking segments edge to edge.
The partition walls must be aligned.
Cut the trunking as required Attach the clamps
Cut trunking segments to length, if required.
Sharp edges must then be deburred.
Connect the two trunking segments at their
edges using a clamp and dowel it to the
slap through the two holes (7 x 15 mm). The
installation of the clamp is also required to
ensure equipotential bonding between the
trunking segments in accordance with DIN
VDE 0100.
Additional brackets
If required, trunking segments can be se-
cured between the joints using additional
brackets.
Connect the vertical elbow Connect the feed channel
Connect the vertical elbows as wall connec-
tion to the trunking using a clamp.
A feed channel can be attached to the verti-
cal elbow for further line routing. This trunk-
ing segment connects the underfloor trunking
to the wall trunking.
Attach the end bracket
If the trunking ends in the middle of the
room, then the cut edge must be closed by
an end bracket. The end cap does not need
to be secured by screws.
Earthing measures
The trunking segments are joined mechani-
cally and electrically by the clamps. All con-
tact areas must be clean and free of grease.
