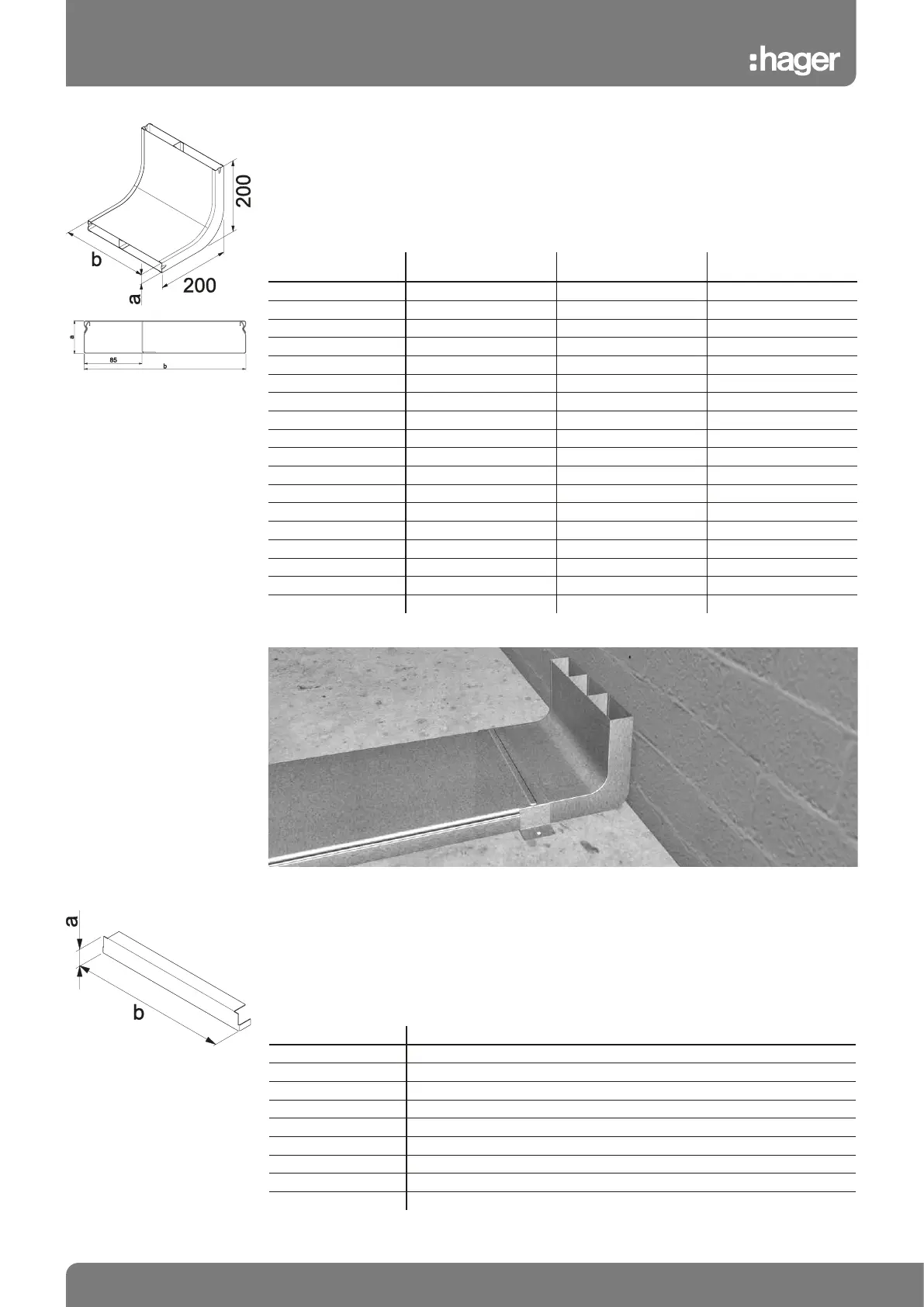

Technical data
Order number Variant Dimensions b x a [mm] Dimensions of
compartments
UKK190282 2 compartments 190 x 28 75 / 115
UKK190382 2 compartments 190 x 38 75 / 115
UKK190482 2 compartments 190 x 48 75 / 115
UKK190283 3 compartments 190 x 28 60 / 70 / 60
UKK190383 3 compartments 190 x 38 60 / 70 / 60
UKK190483 3 compartments 190 x 48 60 / 70 / 60
UKK240282 2 compartments 240 x 28 100 / 140
UKK240382 2 compartments 240 x 38 100 / 140
UKK240482 2 compartments 240 x 48 100 / 140
UKK240283 3 compartments 240 x 28 85 / 70 / 85
UKK240383 3 compartments 240 x 38 85 / 70 / 85
UKK240483 3 compartments 240 x 48 85 / 70 / 85
UKK340282 2 compartments 340 x 28 140 / 200
UKK340382 2 compartments 340 x 38 140 / 200
UKK340482 2 compartments 340 x 48 140 / 200
UKK340283 3 compartments 340 x 28 115 / 110 / 115
UKK340383 3 compartments 340 x 38 115 / 110 / 115
UKK340483 3 compartments 340 x 48 115 / 110 / 115
Material:
Galvanised sheet metal,
Galvanised in accordance with
DIN EN 10327
Material thickness:
0.75 mm
Vertical elbow UKK
Vertical elbow UKK for routing transitions from horizontal to the vertical plane.
The connection between the vertical elbow and the trunking is made with a clamp.
Installation example
End bracket UKE
End bracket for screed-embedded closed underfloor trunking.
Order number Dimensions b x a [mm]
UKE190280 190 x 28
UKE190380 190 x 38
UKE190480 190 x 48
UKE240280 240 x 28
UKE240380 240 x 38
UKE240480 240 x 48
UKE340280 340 x 28
UKE340380 340 x 38
UKE340480 340 x 48
Material:
Galvanised sheet metal,
Galvanised in accordance with
DIN EN 10327
Material thickness:
0.90 mm
