29
Technical changes reserved
electraplan.UK
electraplan.UK
Function and application
How it works
Our probably most widely used underfloor trunking system is very
simple yet surprisingly diverse when it comes to potential applica-

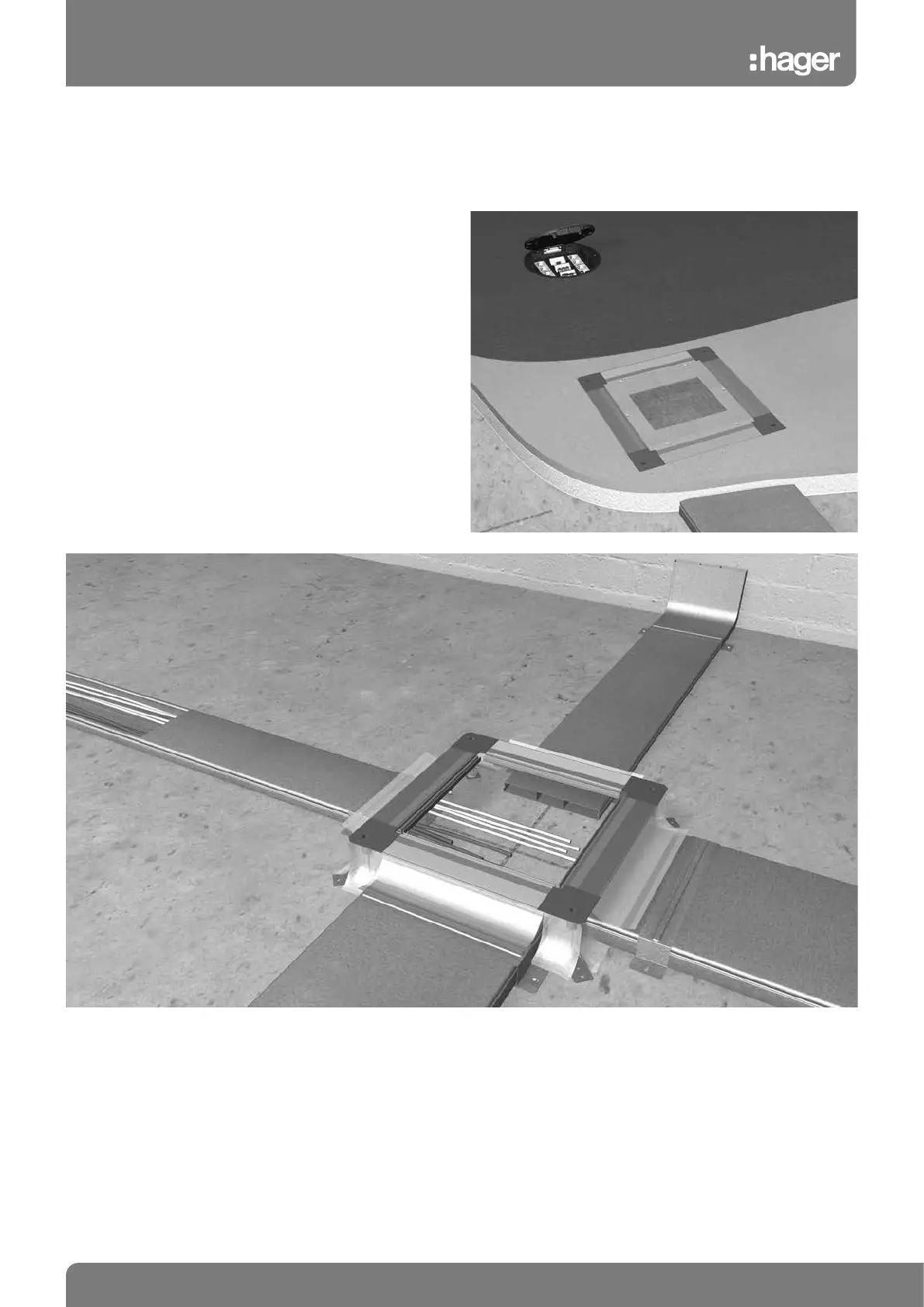

tions. Junction boxes are connected to each other via underfloor
trunkings to form networks. They ensure a structured supply and
offer access to energy, data and telecommunication lines through the
floor.
Users can customise their installation to suit individual requirements
thanks to the large range of different trunking cross-sections that is
available. Afterwards the screed is installed up to the upper edge of
the junction boxes. Depending on the properties of the floor surface
(usually a bare concrete floor), junction boxes with pre-stamped
trunking inlets made completely of sheet metal or junction boxes with
foil casing and factory-fitted footfall sound insulation can be used.
With both junction box variants, stepless height adjustment can be
performed via the height adjustment screws that are accessible from
above. The underfloor trunking is completely concealed once the
screed has been poured. Then you can install service units or cas-
settes in the junction boxes, including sockets and data systems.
Application
The screed-embedded underfloor trunking system can be used with any kind of screed such as cement screed, floating screed, flowing
screed, or, if special provisions are made, hot screed/mastic asphalt. The screed-embedded trunking system is suitable for use in office,
administration or exhibition areas, but also in residential buildings. Anywhere, in fact, where sturdy construction is valued.
