266
Technical changes reserved
Technical
Information

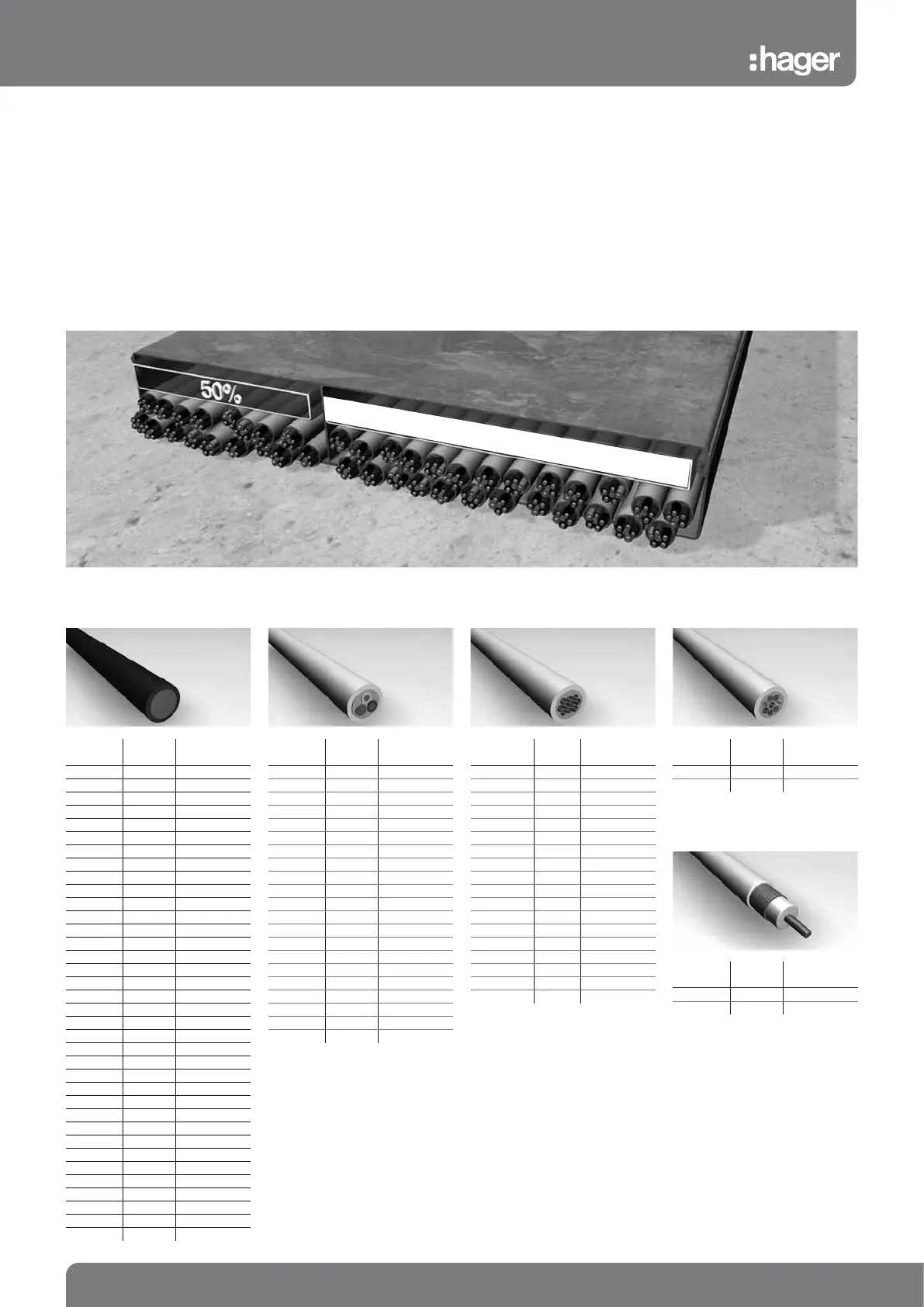

Question 2
What about the cable capacity?
The line volume must be known in order to define the correct trunking size. In practice, lines never run perfectly in parallel and side-by-side in
a way that would ensure maximum space utilisation. This is why the formula (d)², i.e. the diameter squared, must be applied. To ensure suffi-
cient space for possible later retrofitting, trunking ducts should only be filled to 50% of their volume. This also makes it easier to pull the lines
into the trunking. Also, it must be noted that the calculation does not take into account bottom troughs and outlets that possibly interrupt the
line path. In practice, power lines and data lines are routed separately in the trunking. Partition walls separate the trunking into several com-
partments. If this applies to your installation, then calculate the volume required for each compartment separately.
The line volume configurator provided at www.hager.de will help you make the necessary calculations.
The values calculated are for guide purposes only. Heat dissipation caused by lines carrying high currents must be taken into account.
Compliance with all applicable regulations such as DIN VDE 0100 must be ensured.
Overview of the most common line types including diameters and space requirements:
High-voltage cable High-voltage cable Telecommunication
line
Data line
Cable type Diameter
mm
Space required
cm
²
1 x 4 6.5 0.42
1 x 6 7.0 0.49
1 x 10 8.0 0.64
1 x 16 9.5 0.90
1 x 25 12.5 1.56
3 x 1.5 9.1 0.83
3 x 2.5 10.4 1.08
3 x 4 11.0 1.21
4 x 1.5 9.0 0.81
4 x 2.5 10.5 1.10
4 x 4 12.5 1.56
4 x 6 13.5 1.82
4 x 10 16.5 2.72
4 x 16 19.0 3.61
4 x 25 23.5 5.52
4 x 35 26.0 6.76
5 x 1.5 10.8 1.17
5 x 2.5 12.2 1.49
5 x 4 13.5 1.82
5 x 6 14.5 2.10
5 x 10 18.0 3.24
Cable type Diameter
mm
Space required
cm
²
1 x 10 10.5 1.10
1 x 16 11.5 1.32
1 x 25 12.5 1.56
1 x 35 13.5 1.82
1 x 50 15.5 2.40
1 x 70 16.5 2.72
1 x 95 18.5 3.42
1 x 120 20.5 4.20
1 x 150 22.5 5.06
3 x 1.5 11.5 1.32
3 x 2.5 12.5 1.56
3 x 10 17.5 3.06
3 x 16 19.5 3.80
3 x 50 26.0 6.76
3 x 70 30.0 9.00
3 x 120 36.0 12.96
4 x 1.5 12.5 1.56
4 x 2.5 13.5 1.82
4 x 6 16.5 2.72
4 x 10 18.5 3.42
4 x 16 21.5 4.62
4 x 25 25.5 6.50
4 x 35 28.0 7.84
4 x 50 30.0 9.00
4 x 70 34.0 11.56
4 x 95 39.0 15.21
4 x 120 42.0 17.64
4 x 150 47.0 22.00
5 x 1.5 13.5 1.82
5 x 2.5 14.5 2.10
5 x 6 18.5 3.42
5 x 10 20.5 4.20
5 x 16 22.5 5.06
5 x 25 27.5 7.56
5 x 35 34.0 11.56
5 x 50 40.0 16.00
Cable type Diameter
mm
Space required
cm
²
2 x 2 x 0.6 5.0 0.25
4 x 2 x 0.6 6.9 0.48
6 x 2 x 0.6 7.2 0.52
10 x 2 x 0.6 7.5 0.56
20 x 2 x 0.6 9.0 0.81
40 x 2 x 0.6 11.0 1.12
60 x 2 x 0.6 13.0 1.69
100 x 2 x 0.6 17.0 2.89
200 x 2 x 0.6 23.0 5.29
2 x 2 x 0.8 6.0 0.36
4 x 2 x 0.8 7.0 0.49
6 x 2 x 0.8 8.5 0.72
10 x 2 x 0.8 9.5 0.90
20 x 2 x 0.8 13.0 1.69
40 x 2 x 0.8 16.5 2.72
60 x 2 x 0.8 20.0 4.00
100 x 2 x 0.8 25.5 6.50
200 x 2 x 0.8 32.0 10.24
Cable type Diameter
mm
Space required
cm
²
CAT 5 8.2 0.67
CAT 6 8.2 0.67
Cable type Diameter
mm
Space required
cm
²
RG-59 6.5 0.42
10Base5 12.5 1.56
Coaxial line
safety factor
