214
Technical changes reserved
electraplan.VE-EE
electraplan.VE-EE

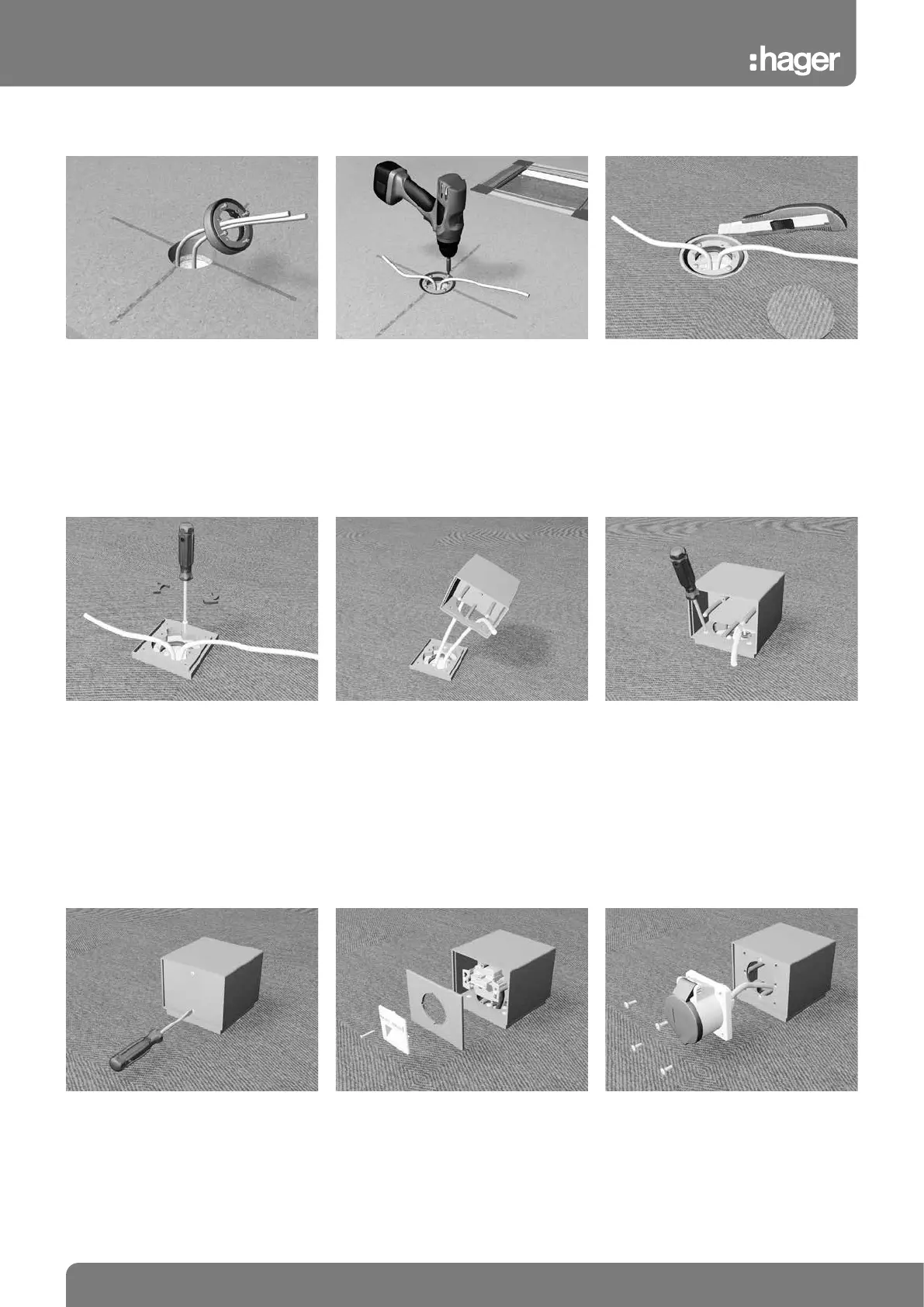

Installation instructions, pedestal box
Thread the cables through the clamping ring
Thread the cables out of the underfloor
trunking and through the drilled outlet /
clamping ring GBZKR00 (to be ordered sepa-
rately) so that the screw heads point upward.
Clamp the clamping ring Cut out the holes
Install the clamping ring into the drilled hole
and tighten the screws to
clamp it.
After laying the flooring, cut out the drill holes
using a cutter.
Install the base
Secure the base of the pedestal box in the
clamping ring using two bolts M4 x 40 mm.
Thread in the cables Fasten the pedestal box
Route the cables from below through the
pedestal box (observing the distribution of in-
stallation slots and voltages types). Pedestal
boxes with 4 or 8 installation fields require a
partition wall to be fitted.
Position the pedestal box on the base and
secure it using four bolts M4 x 12 mm.
Secure the blank plate
Secure the blank plate in the pedestal box
using two screws.
Installation wall for 1 x standard D Installation wall for 1 x CEE
Connect the cables to the installation de-
vice and secure it in the pedestal box using
two screws. Insert the installation walls and
screw down the central plate of the installa-
tion device.
Thread the cables through the installation
wall and the rubber part (rubber part included
in delivery package of CEE power socket).
Secure the installation wall in the pedestal
box using two screws. Connect the cables to
the CEE power sockets and secure the CEE
power sockets to the installation wall using
four bolts M4 x16 mm.
