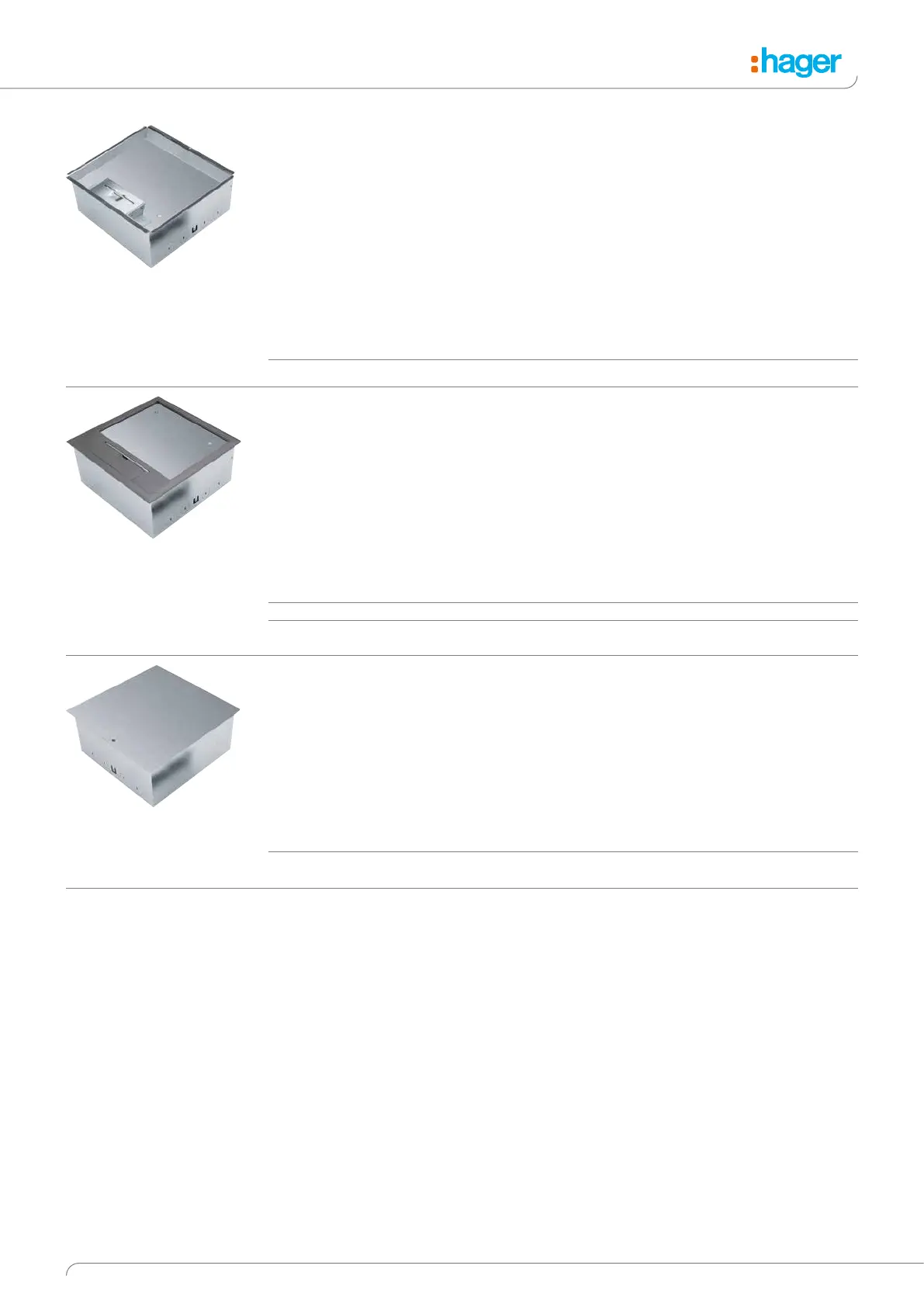

UD-ZuHause complete packages
UDKPQ06E
Complete underfloor junction box package, stainless steel
Designation PU Order no.
Compl pack junct. box incl ss cass. Q06 1 UDKPQ06E
Properties:
- Including stainless-steel cassette Q06, two device casings
GBVR300, casing cover GBMBV23T2, 2 partition walls GTVRT00,
triple socket ESR3339010 with cover GBMBV34R3
- With factory-mounted footfall sound insulation
- 4 set screws M8
- Screed cover including screws
- Minimum installation height 105 mm
- Levelling range + 50 mm
- M20 / M25 cut-outs for the connection of installation pipes
- Installation opening 200 x 200 mm
Properties:
- Including service unit VQ06, two device casings GBVR300,
casing cover GBMBV23T2, 2 partition walls GTVRT00,
triple socket ESR3339010 with cover GBMBV34R3
- With factory-mounted footfall sound insulation
- 4 set screws M8
- Screed cover including fastening screws
- Minimum installation height 95 mm
- M20 / M25 cut-outs for the connection of installation pipes
- Installation opening 200 x 200 mm
UDKPQ067011
Complete underfloor junction box package
Properties:
- Junction box accepting service units VQ06 and VEQ06 or
cassettes EKQ06
- With factory-mounted footfall sound insulation
- Screed cover including Fastening screws
- Minimum installation height 95 mm
- M20 / M25 cut-outs for the connection of installation pipes
- Installation opening 200 x 200 mm
UDBDQ06
Junction box
Designation PU Order no.
Junction box for VQ06 or KQ06 1 UDBDQ06
Designation PU Order no.
Compl pack junct. box incl VQ06 iron grey 1 UDKPQ067011
Compl pack junct. box incl VQ06 deep black 1 UDKPQ069005
