168 Technical changes reserved
electraplan.VE-EE
electraplan.VE-EE
Installation units, heavy-duty cassettes
- Stand-alone, robust under-
floor junction box system with
traversable cassette cover, for
dry rooms with dry-cleaned or
wet-cleaned floors
- Maximum load-bearing
capacity: 20 kN
- The minimum installation height
of this cassette is 100 mm,
plus the height of the trunking
connected
Material
Stainless steel / steel
Note
Order one levelling set for cas-
settes EKSNS per cassette as
an option

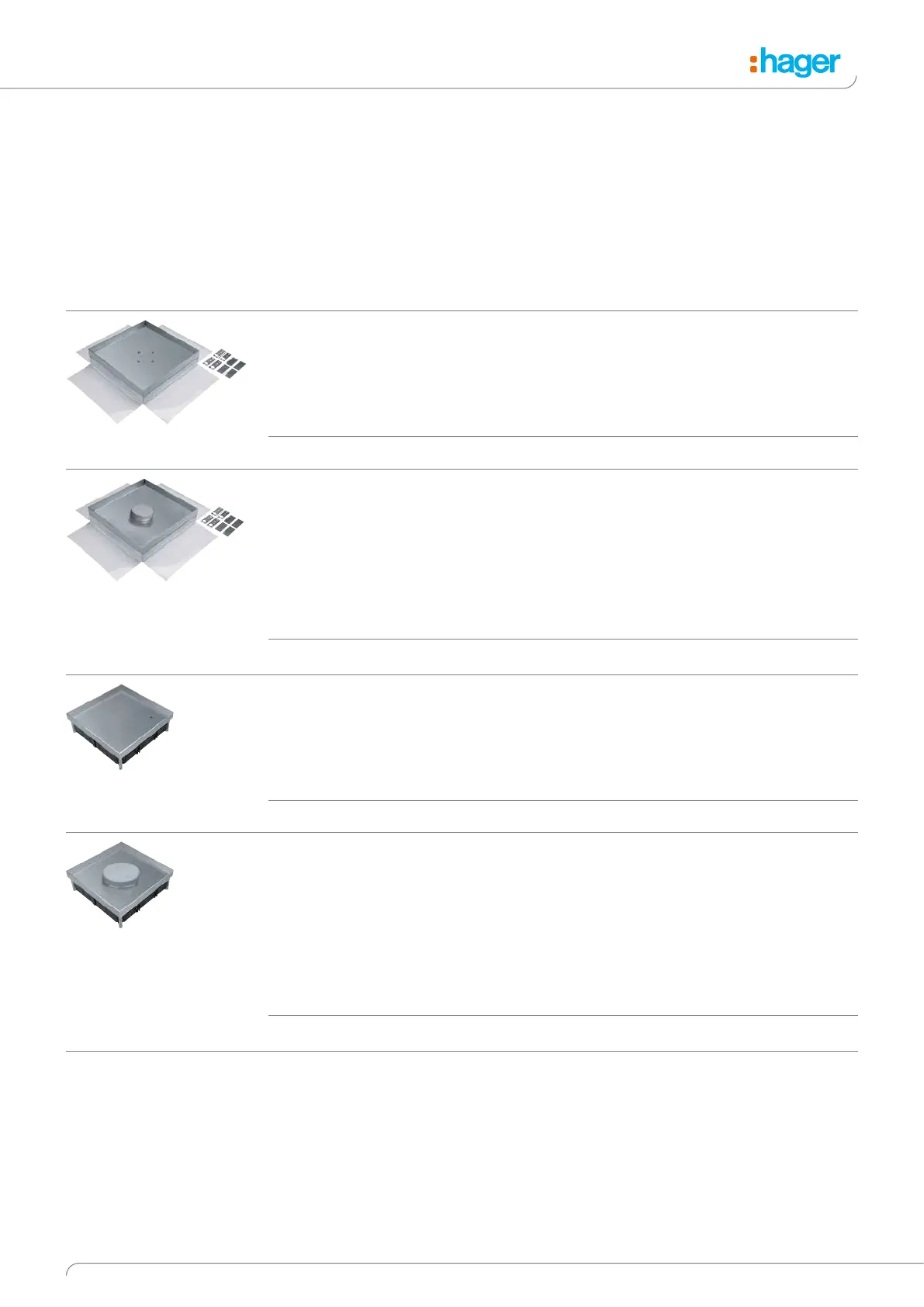

EKSQ405BL
Heavy-duty cassette Q405 blank
Designation PU Order no.
Stainless-steel cassette Q405 blank 20 kN 1 EKSQ405BL
Properties:
- Outer dimension: 405 x 405 mm
- Cassette cover outer dimension: 44 mm
- Cassette cover inner dimension: 28 mm
Properties:
- Outer dimension: 405 x 405 mm
- Cassette cover outer dimension: 44 mm
- Cassette cover inner dimension: 28 mm
- A snap-in latching rail is required in order to
use installation devices
- The snap-in latching rail accepts up to 12 installation
devices in 3 device casings
EKSQ405TM
Heavy-duty cassette Q405 with tube mounting set
Designation PU Order no.
Heavy-duty cassette with tube mounting Q405 28/44 mm 1 EKSQ405TM
Properties:
- Outer dimension: 243 x 234 mm
- Cassette cover outer dimension: 38 mm
- Cassette cover inner dimension: 23 mm
Heavy-duty cassette Q12 blank
Designation PU Order no.
Stainless-steel cassette Q12 blank 20 kN 1 EKSQ1220BL
Properties:
- Outer dimension: 243 x 234 mm
- Cassette cover outer dimension: 38 mm
- Cassette cover inner dimension: 23 mm
- Fitting installation devices requires a snap-in latching rail
- The snap-in latching rail accepts up to 12 installation
devices in 3 device casings
Heavy-duty cassette Q12 with tube mounting set
Designation PU Order no.
Stainless-steel cassette Q12 TM 20 kN 1 EKSQ1220TM
EKSQ1220BL
EKSQ1220TM
