165Technical changes reserved
electraplan.VE-EE

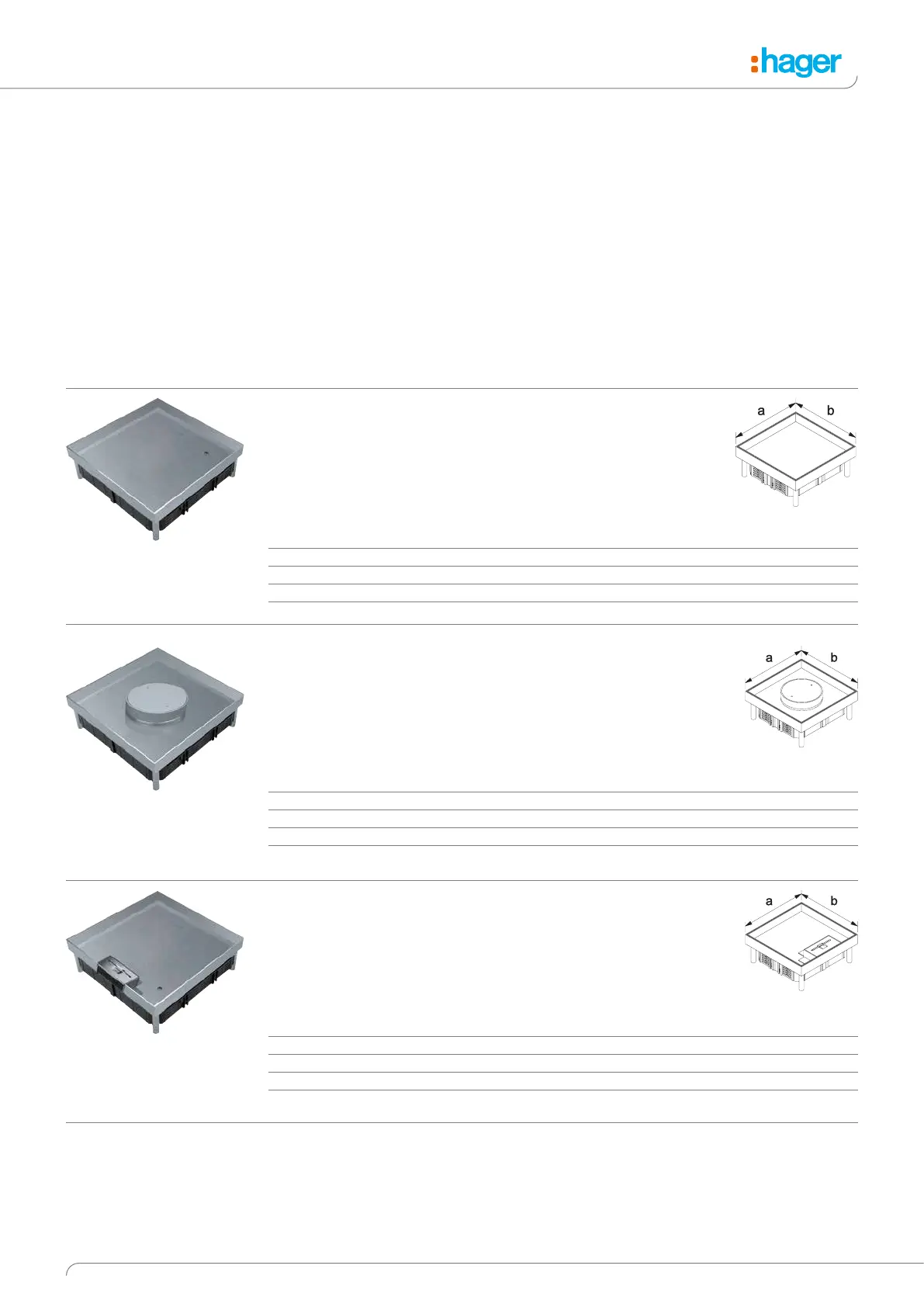

electraplan.VE-EE Installation units,
height-adjustable stainless-steel cassettes, square
- Height-adjustable stain-
less-steel cassettes for dry-
cleaned and wet-cleaned floors
- Load-bearing capacity in ac-
cordance with DIN EN 60670-1,
-23 up to 1500 N
- Two variants:
- Q06: Installation opening:
200 x 200 mm for up to
6 installation devices in 2
device casings GTVR300,
GBVR300 or GTVD200
- Q12: Installation opening:
244 x 244 mm for up to
12 installation devices in 3
device casings GTVR400,
GBVR400 or GTVD300
- Device casings can be lowered
in increments down to 18 mm
- Also fits a snap-in ladder ex-
tension
- Two cassette heights:
1: Cassette height 23 mm
inside, 28 mm outside
2: Cassette height 38 mm
inside, 43 mm outside
- Minimum installation depth
from top edge of finished floor:
100 x 115 mm
Material
Stainless steel
Note
Order one levelling set EKNS per
cassette as an option
EKQ0600BL1
Height-adjustable stainless-steel cassette, blank, square,
for wet-cleaned floors
Designation a [mm] b [mm] PU Order no.
Stainless-steel cassette Q06 BL outer height 28mm 200 200 1 EKQ0600BL1
Stainless-steel cassette Q06 BL outer height 43mm 200 200 1 EKQ0600BL2
Stainless-steel cassette Q12 BL outer height 28mm 244 244 1 EKQ1200BL1
Stainless-steel cassette Q12 BL outer height 43mm 244 244 1 EKQ1200BL2
Properties:
- The tube cable outlet is not included in the supply
EKQ0600TM1
Height-adjustable stainless-steel cassette,
with tube mounting set, square, for wet-cleaned floors
Designation a [mm] b [mm] PU Order no.
Stainless-steel cassette Q06 TM outer height 28mm 200 200 1 EKQ0600TM1
Stainless-steel cassette Q06 TM outer height 43mm 200 200 1 EKQ0600TM2
Stainless-steel cassette Q12 TM outer height 28mm 244 244 1 EKQ1200TM1
Stainless-steel cassette Q12 TM outer height 43mm 244 244 1 EKQ1200TM2
Properties:
- Cable outlet variant: rectangular (LE)
EKQ0600LE1
Height-adjustable stainless-steel cassette with cable outlet,
square, for wet-cleaned floors
Designation a [mm] b [mm] PU Order no.
Stainless-steel cassette Q06 LE outer height 28mm 200 200 1 EKQ0600LE1
Stainless-steel cassette Q06 LE outer height 43mm 200 200 1 EKQ0600LE2
Stainless-steel cassette Q12 LE outer height 28mm 244 244 1 EKQ1200LE1
Stainless-steel cassette Q12 LE outer height 43mm 244 244 1 EKQ1200LE2
