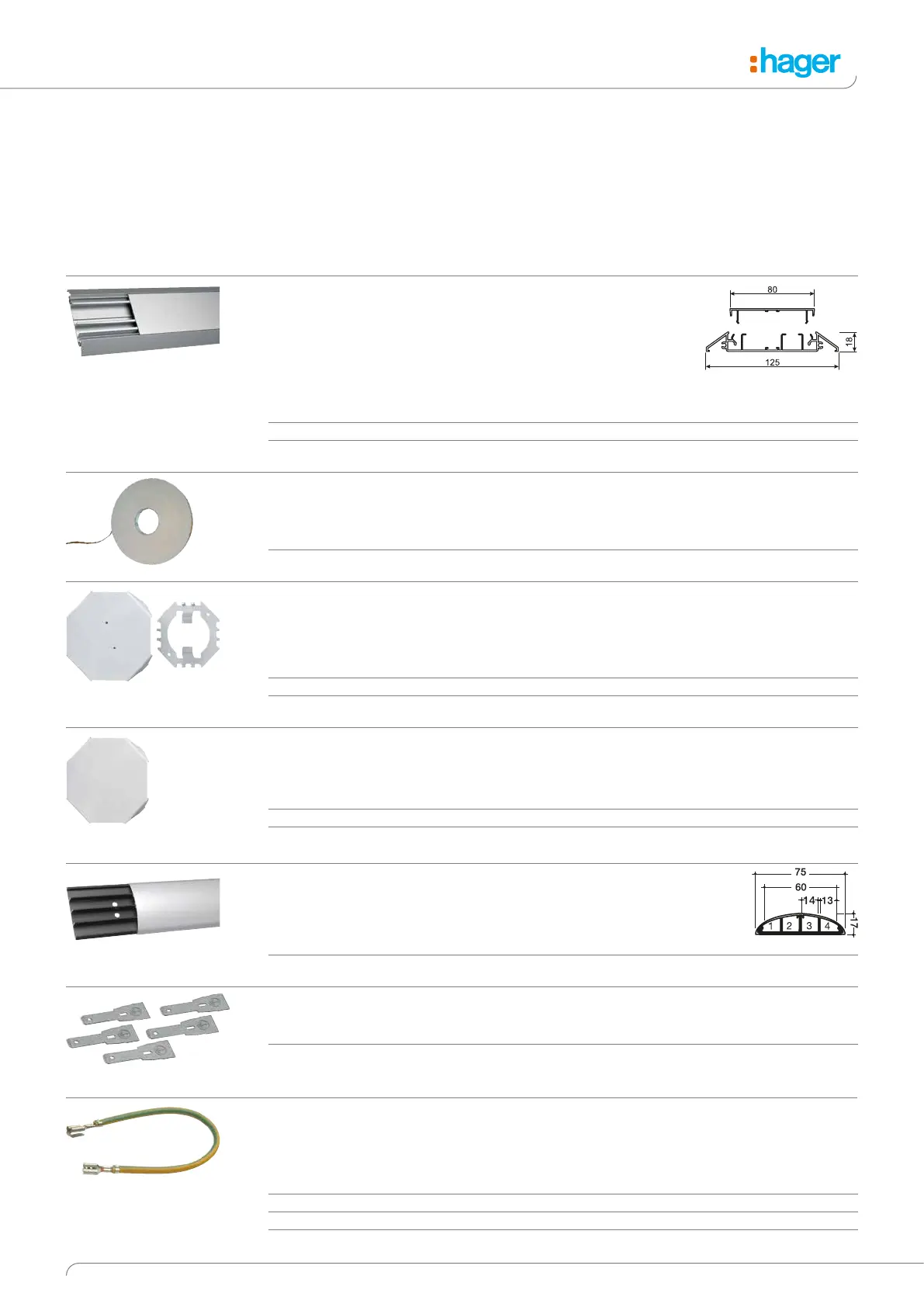

122 Technical changes reserved
electraplan.AK
On-the-floor
trunking
- Safer protection at higher loads
- Easily accessible through
removable upper part
- Separate compartments for
separation of power and data
lines
Floor distributor colours
RAL 7035 light grey
RAL 7021 anthracite
Material
Anodised aluminium
Supplied lengths
2000 mm, special lengths up
to 6000 mm on request
Form of delivery
Complete trunking with lower
and upper part
AKA181250ELN
On-the-floor trunking, aluminium
Complete trunking with lower and upper part,
with removable upper part
Laying of cables from above
Height 18 mm, width 125 mm, 2 compartments
Line configuration: 8 x ø 11 mm e.g. NYM 3 x 1.5 mm²
Upper part BRAN700802ELN as replacement part
Designation PU Order no.
On-the-floor trunking, aluminium AKA 18x125mm anodised 12 AKA181250ELN
Dado runking-OT to BRAN, 80mm, anodised 32 BRAN700802ELN
L5106
Double sided adhesive tape
Roll length 50 m, width 19 mm
Designation PU Order no.
Double sided adhesive tape, width 19 mm L=5 m 1 L5106 1 L5106
G71357035
Floor distributor, complete
For transition from aluminium on-the-floor trunking to upper and lower parts consisting of flat chain
Material: Steel sheet
Designation PU Order no.
Floor distributor, flat chain and on-the-floor trunking, light grey 1 G71357035
Floor distributor, flat chain and on-the-floor trunking, anthracite 1 G71357021
G71407035
Floor distributor, upper part
Junction and cross piece for aluminium on-the-floor trunking, upper part from steel sheet
Designation PU Order no.
Floor distributor upper part flat chain//on-the-floor trunking light grey 1 G71407035
Floor distributor upper part flat chain//on-the-floor trunking anthracite 1 G71407021
SLA180750ELN
On-the-floor trunking, lower part PVC, upper part aluminium
4 compartments
Line configuration: 4 x ø 11 mm e.g. NYM 3 x 1.5 mm²
Designation PU Order no.
On-the-floor trunking with upper part aluminium SLA 18x75 anodised 10 SLA180750ELN
L5806
Earthing accessory for SLA180750ELN
Designation PU Order no.
Earthing connection in kit (5 pieces) for SLA-OT 1 L5806 1 L5806
L4181GNGE
Earthing conductor
- plug-in, cross-section 4 mm2, for electrical connection of base
profiles and upper parts and for by-passing moulded parts
Designation PU Order no.
Earthing conductor length 150 mm green-yellow 100 L4181GNGE
Earthing conductor length 300 mm green-yellow 100 L4182GNGE
Earthing conductor length 600 mm green-yellow 25 L4183GNGE
On-the-floor trunking, aluminium
