97
Technical changes reserved
tehalit.BKB
electraplan.BK
Installation instructions, Flush-floor trunking system

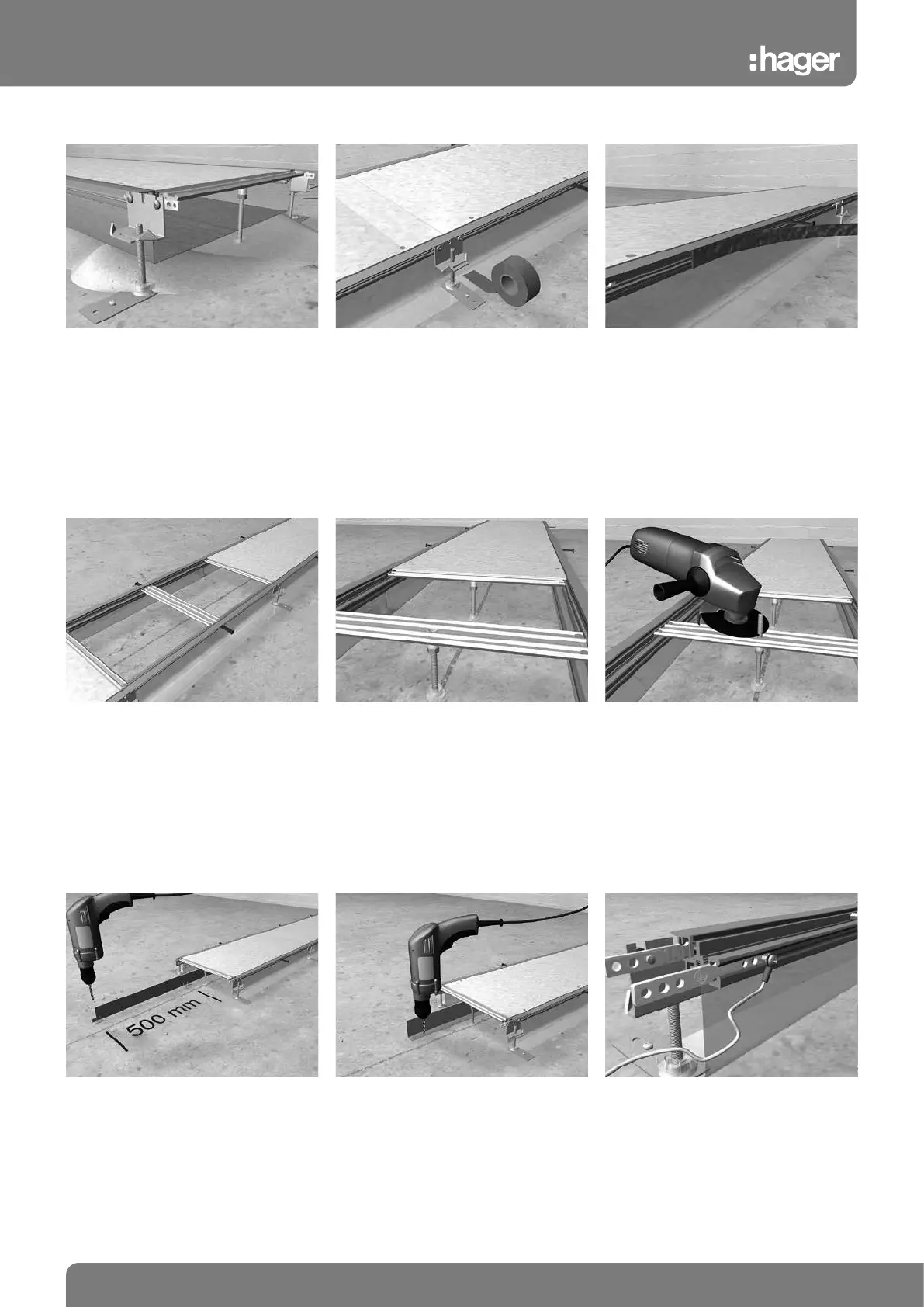

Support the trunking bottom
If using trunking bottoms, use underlays.
Ensure that the screed installer is explicitly
informed of this measure. If cross members
with levelling support are used, the trunking
bottom must be perforated on site so that
the set screw firmly sits on the slab!
Seal the joints Screed expansion
Carefully seal the joints of the trunking sys-
tem against screed ingress.
Screed may expand while hardening, causing
it to push against the trunking. The pressure
is determined by the size of the screed slab
and its composition. Sponge rubber strips
may be attached to the profile to reduce
pressure. Please consult the screed layer.
Position the cross members
Each cover butt joint must be supported by a
cross member. From trunking nominal widths
greater than 300 mm, covers must be addi-
tionally supported between the joints. The
cross members must be equally spaced.
Cross members with threaded sleeve Shorten set screws
Install the set screw in the threaded sleeve.
Install lock nut BKZKM80 and insulating
mount BKZNSD0 to the set screw. Slightly
tension the cross member against the slab
using the set screw. Secure the set screw
using lock nut BKZKM80 below the levelling
sleeve.
If required, trim the set screws so that they
are flush with the top edge of the cross
member.
Trunking partition wall BKTWK
Plug the feet of trunking partition wall
BKTWK at a spacing of 500 mm to the slab.
Push the partition wall into the feet.
Trunking partition wall BKTWS Earthing measure for trunking BKF
Plug partition wall BKTWS directly to the
slab. Bores in the separating walls must be
created on site. Connect the separating wall
to ground using the tap-on grounding clamps
provided.
During installation of trunking, push connec-
tor from the side into inner profile slot. Re-
move blank cover from trunking and tighten
the screw at the connector. Connect the
earth conductor cable to the earthing meas-
ure using an end sleeve (available as option).
