38
Technical changes reserved
electraplan.UK
electraplan.UK

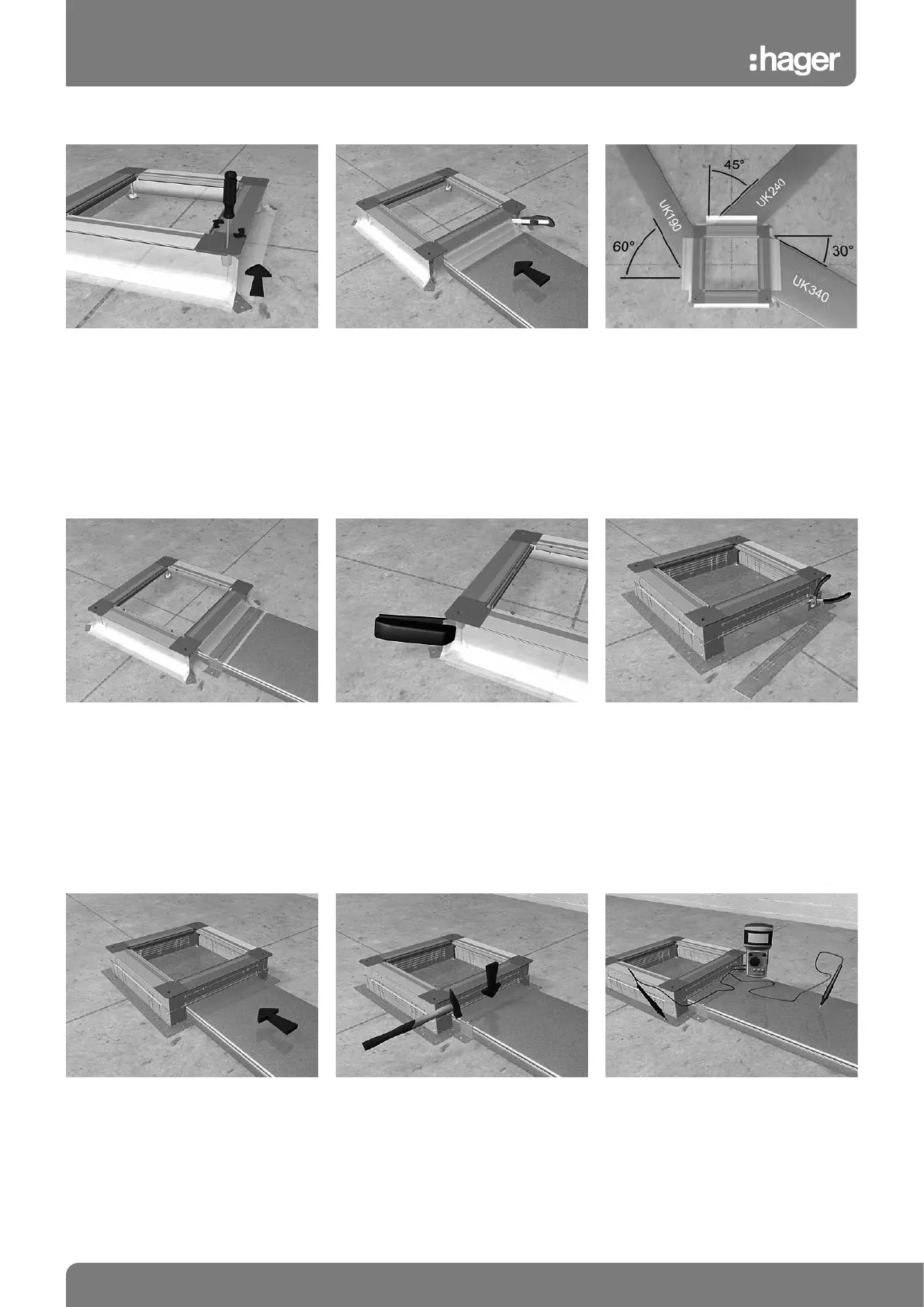

Installation instructions, universal junction boxes
Level the universal junction box
Level the box frame to the required height
using a screwdriver to turn the studs at all
four corners. The elastic mounting of the
frame prevents cracks in the screed during
curing.
Feed in the trunking Angled trunking in-feed is possible
Cut in the film formwork to fit height and
width of the trunking. Lift the film tab and
push the trunking up to the stop on the bot-
tom plate or approx. 40 mm under the uni-
versal junction box.
Universal junction boxes UDB3 and UDH3
allow trunking to be introduced at an angle
as specified. This layout makes the installa-
tion of lines more difficult.
Attach the trunking
Pinch the film tab between trunking and
bracket. Attach the bracket using plugs and
screws.
Connect the film Cut out universal junction box UDS3
Join the screed formwork film at all four cor-
ners using a stapling pliers.
Before installation, a corresponding cut-out
must be created in the universal junction box
to allow connection of the trunking. Use a
wire cutter to cut out the panel along the per-
foration as required.
Feed in the trunking
Introduce the trunking into the opening cre-
ated in the sidewall and push it against the
stop at the bottom plate.
Attach the trunking Grounding of UDS3 / UDB
Connect the trunking to the universal junction
box using a bracket.
The force of the bracket pressing the trunk-
ing onto the bottom plate ensure the electric
conductivity of the universal junction box
and the trunking. The contact areas must be
clean and free of grease. The ground con-
ductor in the universal junction box must be
connected to the ground connection on site.
