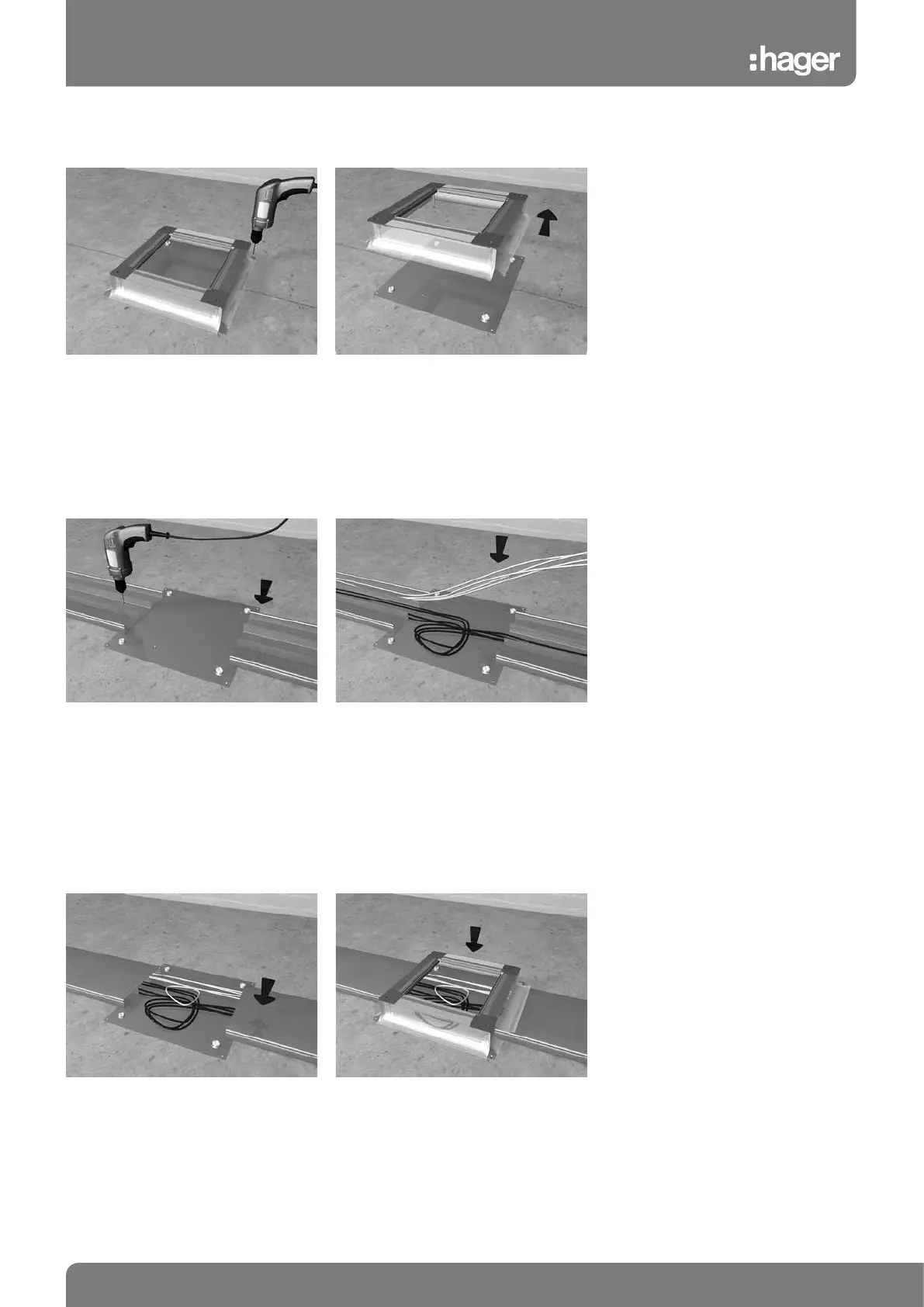

Installation instructions
Alternative installation method:
Attach the universal junction box Remove the upper part of the box
Secure the universal junction box to the slab. Pull the upper part from the universal junc-
tion box out of the soundproofing mounts.
Bottom plate and soundproofing mounts
remain firmly on the slab.
Attach the upper part of the trunking Insert the cables from above
Thanks to the removable lid, the trunking can
attached to the slab quickly and easily. Drive
anchors, fasteners or other means may be
used for the purpose.
Cables can be placed in the open trunk-
ing from above. It is not necessary to pull
the cables in. This facilitates a convenient,
space-saving, orderly and bundled installa-
tion of cables.
Caution: Due to the high temperatures, this is
not feasible in hot screed installations.
Attach the lid Attach the upper part of the box
The lid of the trunking is put on from above
and snaps into place.
The upper part of universal junction box UDH
and UDB is put on from above and over the
trunking into the soundproofing mounts.
