158 Technical changes reserved
electraplan.VE-EE
electraplan.VE-EE

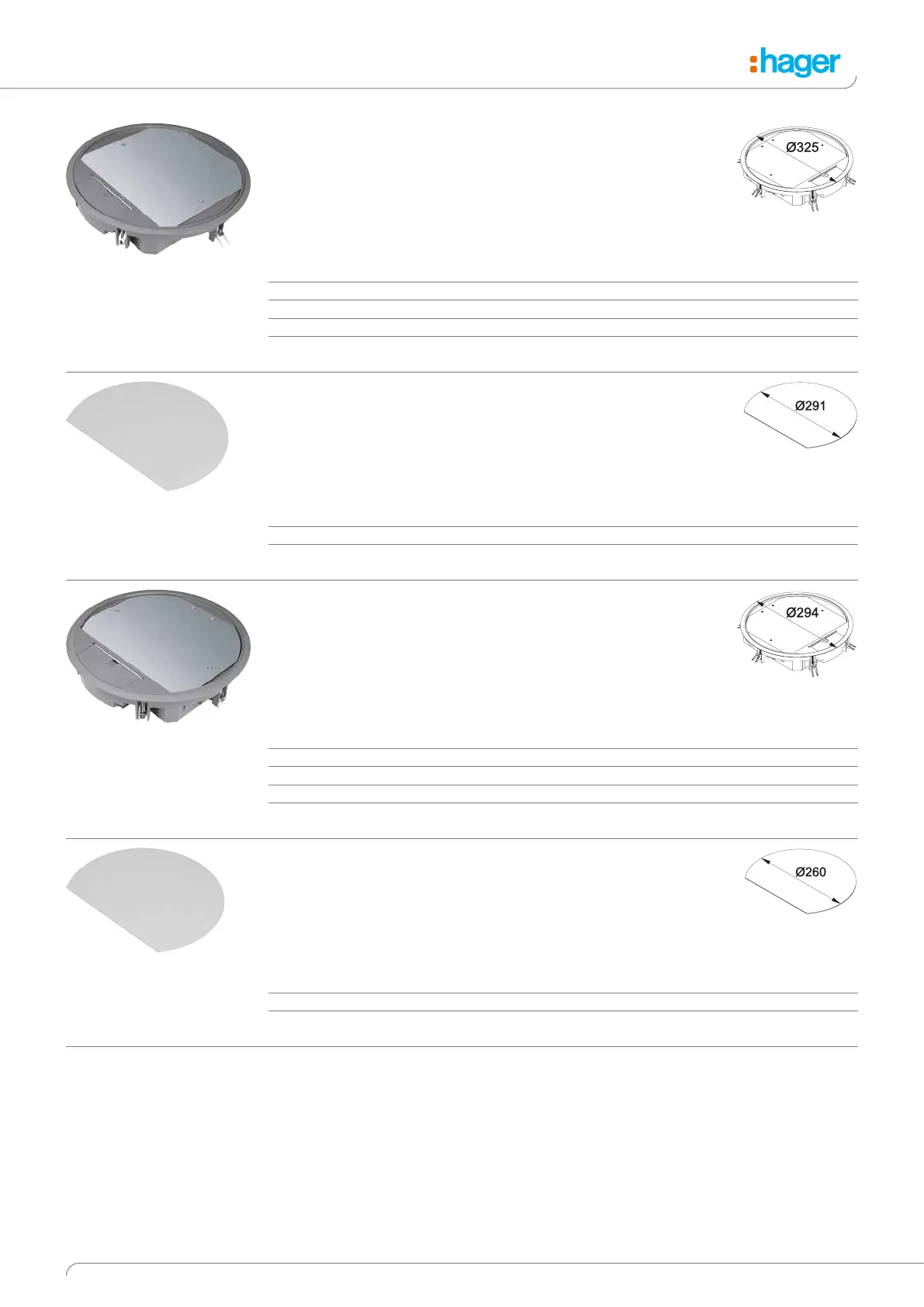

Service units
Properties:
- For up to 12 installation devices in
3 device casings GTVR400, GBVR400, GTVD300
- Device casings can be lowered in increments down to 18 mm
- Including cable holder
- Outer dimensions: Ø 325 mm
- Installation dimensions: Ø 306 mm
VR12057011
Service unit VR12
Designation PU Order no.
Service unit R12 f 5mm flooring eg 4 VR12057011
Service unit R12 f 5mm flooring ts 4 VR12059005
Service unit R12 f 12mm flooring eg 3 VR12127011
Service unit R12 f 12mm flooring ts 3 VR12129005
Properties:
- Cover inlay made of cardboard to serve as spacer
between cover and flooring
- Dimensions: Ø 291 mm
- Material thickness: 1 mm - P1
2 mm - P2
VEDER12P1
Cover inlay for service unit VR12
Designation PU Order no.
Cover inlay made of cardboard for VR12 1mm 300 VEDER12P1
Cover inlay made of cardboard for VR12 2mm 300 VEDER12P2
Properties:
- For up to 10 installation devices in 3 device casings
- 1 x device casing GTVR400, GBVR400, GTVD300 (centre) and
2 x device casing GTVR300, GBVR300, GTVD200 (left and right)
- Device casings can be lowered in increments down to 18 mm
- Including cable holder
- Outer dimensions: Ø 294 mm
- Installation dimensions: Ø 275 mm
VR10057011
Service unit VR10
Designation PU Order no.
Service unit R10 f 5mm flooring eg 4 VR10057011
Service unit R10 f 5mm flooring ts 4 VR10059005
Service unit R10 f 12mm flooring eg 3 VR10127011
Service unit R10 f 12mm flooring ts 3 VR10129005
Properties:
- Cover inlay made of cardboard to serve as spacer
between cover and flooring
- Dimensions: Ø 260 mm
- Material thickness: 1 mm - P1
2 mm - P2
VEDER10P1
Cover inlay for service unit VR10
Designation PU Order no.
Cover inlay made of cardboard for VR10 1mm 300 VEDER10P1
Cover inlay made of cardboard for VR10 2mm 300 VEDER10P2
