T-branch made by the customer for installation heights greater than 40 mm
Please order the following
additional parts:
1 x connection set BKZVS90

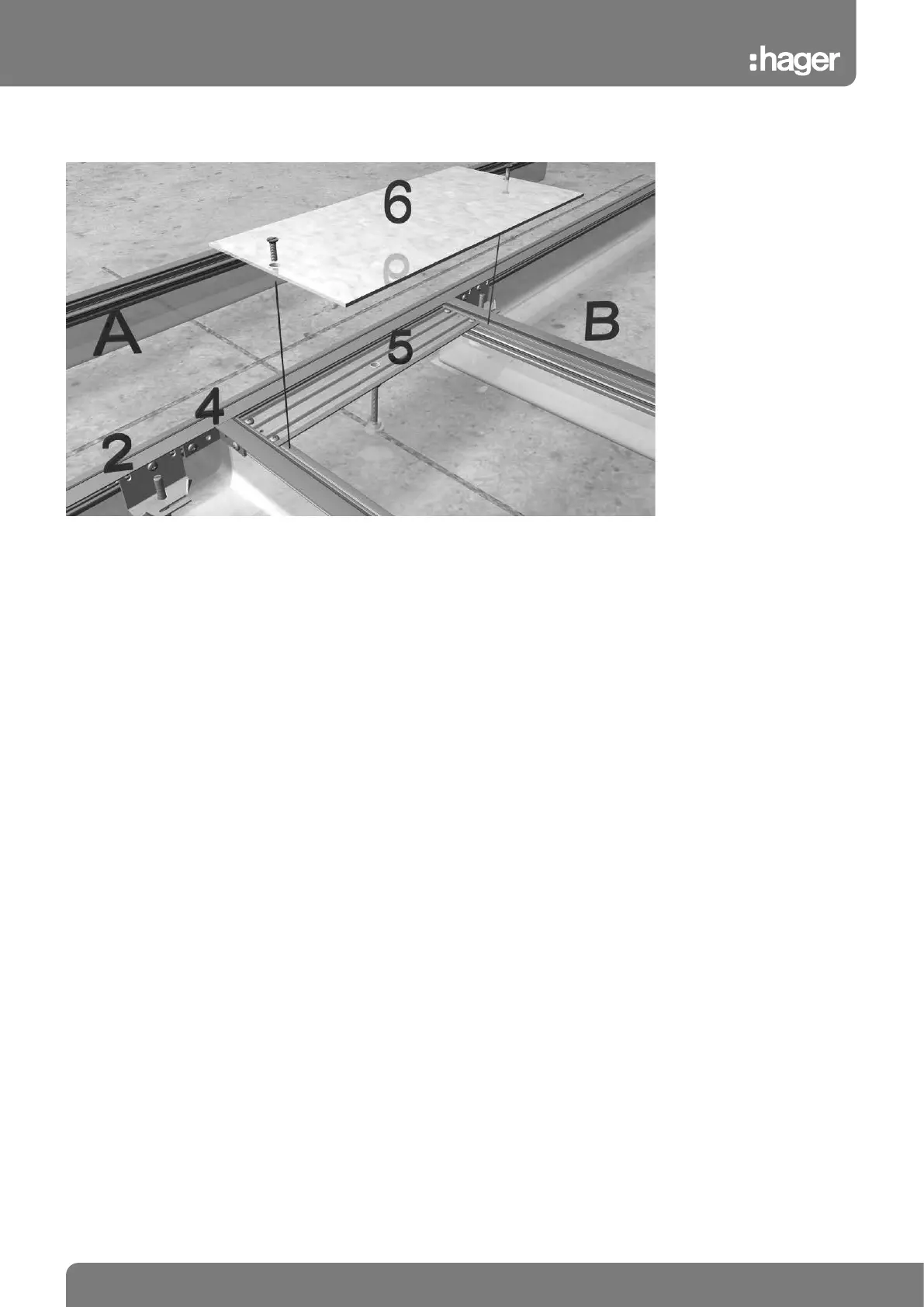

Locate branched-out trunking
section B at section A and con-
nect them using an angled con-
nector (4).
Attach the cross member (5)
to the trunking lateral profile of
trunking section B. The cross
member must support the cover
joint of trunking section B. Cross
members installed in trunking
sections wider than 350 mm
must be fitted with the levelling
support.
Locate the levelling brackets at
an even spacing of max. 800 mm
and secure them to the trunking
using connecting pieces. Rec-
ommendation: Firmly bolt a short
piece of blank cover (6) to trunk-
ing section B. If no blank cover
(6) is used, then the flooring may
not adhere reliably to the lateral
profile of trunking section A in
the area of the branch-out.
electraplan.BK
Installation instructions, T-branch made by the customer
As an alternative, the shaped parts can be ordered as pre-assembled units!
