Power supply and device installation units
Stainless steel cassette EKQ/EKR/EKSQ/EKSR
7.1 Stainless steel cassette EKQ/EKR/EKSQ/EKSR
The cassettes can be levelled to be flush with the height of the floor and can be completely decoupled
from the socket base. Cassettes are particularly suitable for floor coverings like tiles or parquet. Vari-
ous versions are available for dry/moist and wet cleaned floor coverings. The stainless steel cassettes
offer continuous quality and also look attractive.
Levellable stainless steel cassettes for dry or moist cleaned floors are available in two versions. The
minimum installation depth from the top edge of the finished floor is 100 mm for the blank stainless
steel cassette and between 105 and 115 mm for stainless steel cassettes with device casing. The de-
vice casings can be lowered in stages down to 18 mm and a mounting device for a locking extension
is possible.

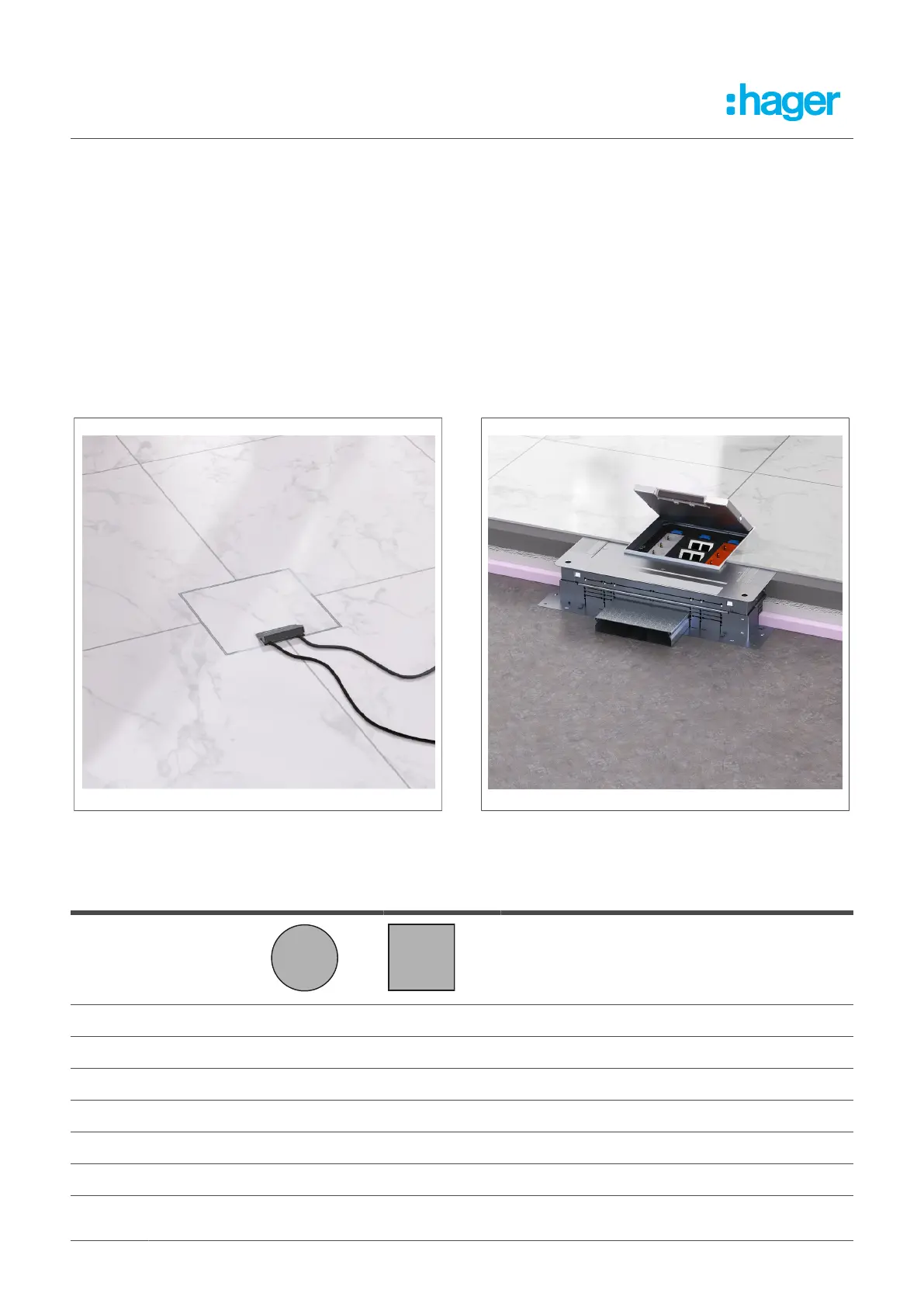

Fig. 17: VE supply unit with tiles Fig. 18: VQ supply unit with tile in cross-section
Supply units
Forms
Nominal sizes Q12, R12, Q06, R06
Number of socket outlets 12.6
Floor covering depth 23mm, 38mm
Version Blank, cable outlet, cone
Minimum installation depth 100mm, 105mm, 115mm
Material Stainless steel
Table 7: Overview of stainless steel cassettes
