Power supply and device installation units
UD floor box set UDKPQ
UD floor box set UDKPQ

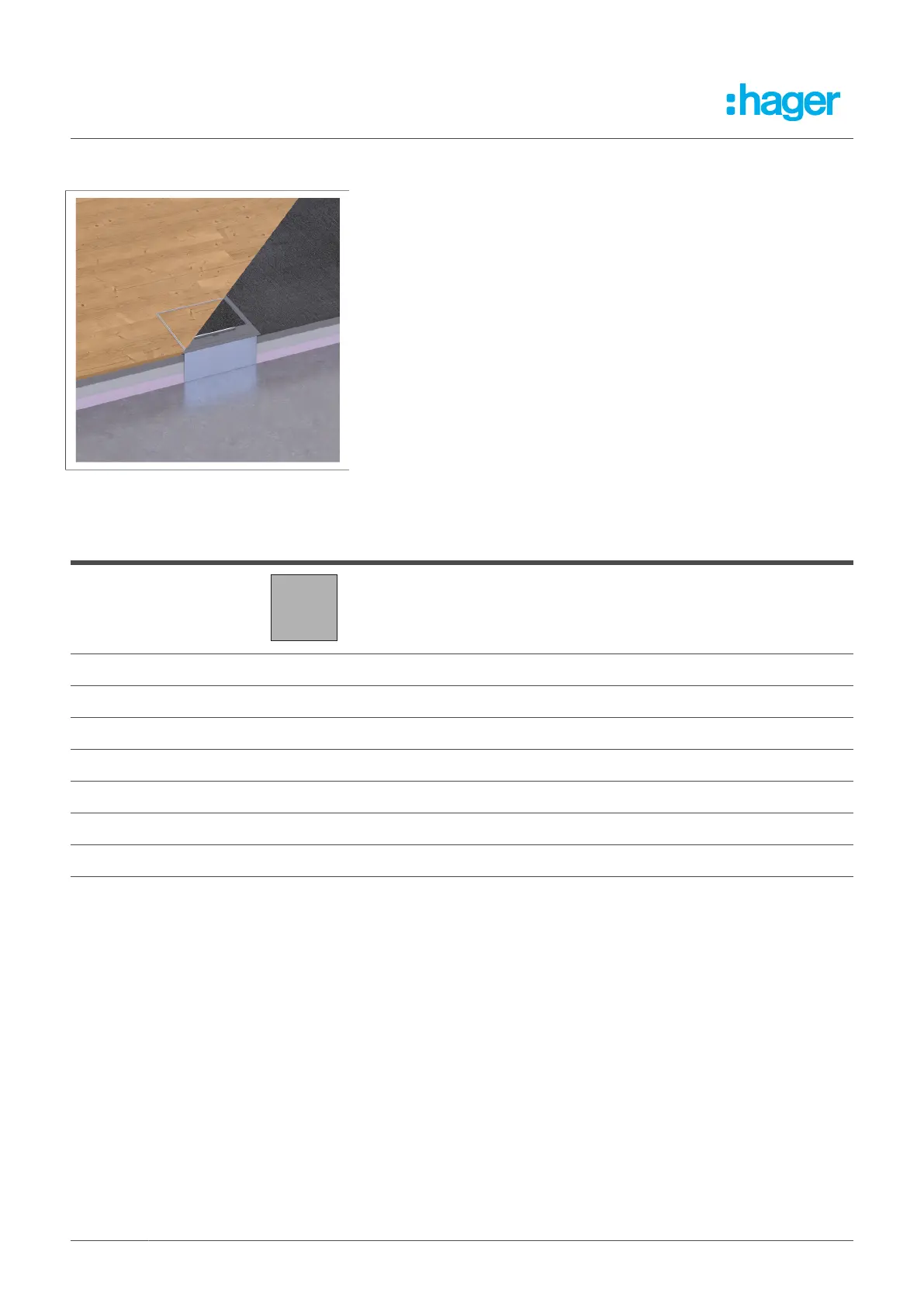

Fig. 20: UD floor box set UDKPQ
The UD floor box set series is supplied as a complete installa-
tion unit. The installation unit consists of a floor box as a screed
lining and either a stainless steel cassette or supply unit for de-
vice installation. The individual elements for device installation
are included in the scope of delivery. The floor box is installed
directly on the raw concrete and connected with flexible in-
stallation tubes. In addition, if necessary, the floor tank can be
combined individually from the individual parts and assembled
on the construction site.
Supply units
Forms
Nominal sizes Q06
Number of socket outlets 6
Floor covering depth 5mm, 15 mm
Design Cable outlet
Minimum installation depth 95mm, 100mm
Material Plastic/stainless steel
Colours Stainless steel, RAL 7011, RAL 9005
Table 9: Overview, UD floor box set
40
