Power supply and device installation units
Supply units VQ/VE/VR
7 Power supply and device installation units
Supply units VQ/VE/VR
The supply units are the tried-and-trusted solution for office installations with carpeted floors. They are
available in plastic or metal. The solution is not connected to the substrate, but is clamped to the UDB
floor box or directly onto the screed using the universal fastening claw.

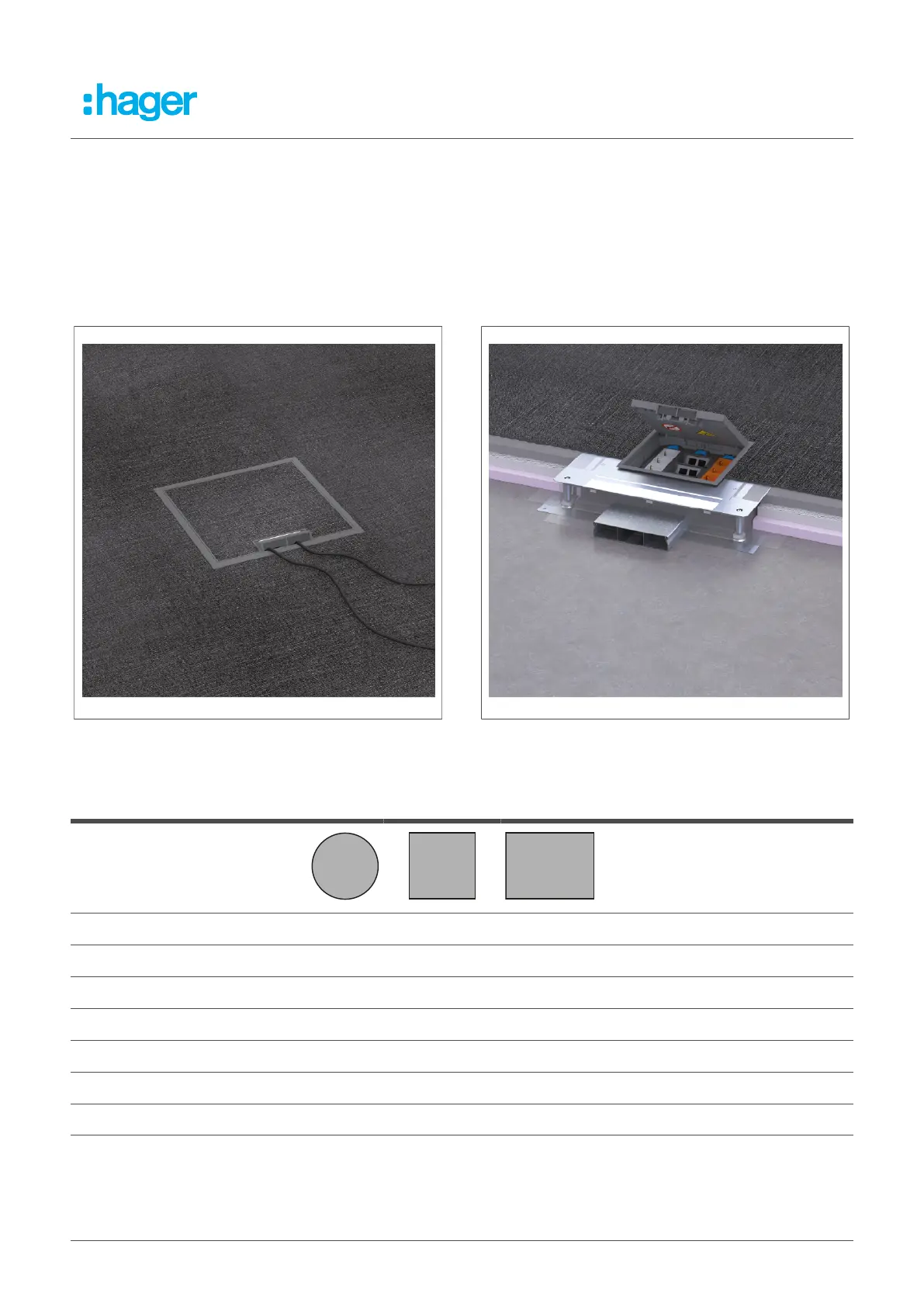

Fig. 15: VQ supply unit with carpet Fig. 16: VQ supply unit with carpet in cross-section
Supply units
Forms
Nominal sizes Q12, R12, R10, E09, Q06, R06,
Number of socket outlets 12,10,9,6
Floor covering depth 5 mm, 12 mm
Design Blank, cable outlet
Minimum installation depth 67mm, 75mm, 77mm, 85mm
Material Plastic/stainless steel
Colours RAL 7011, RAL 9005, stainless steel
Table 6: Overview of supply units
