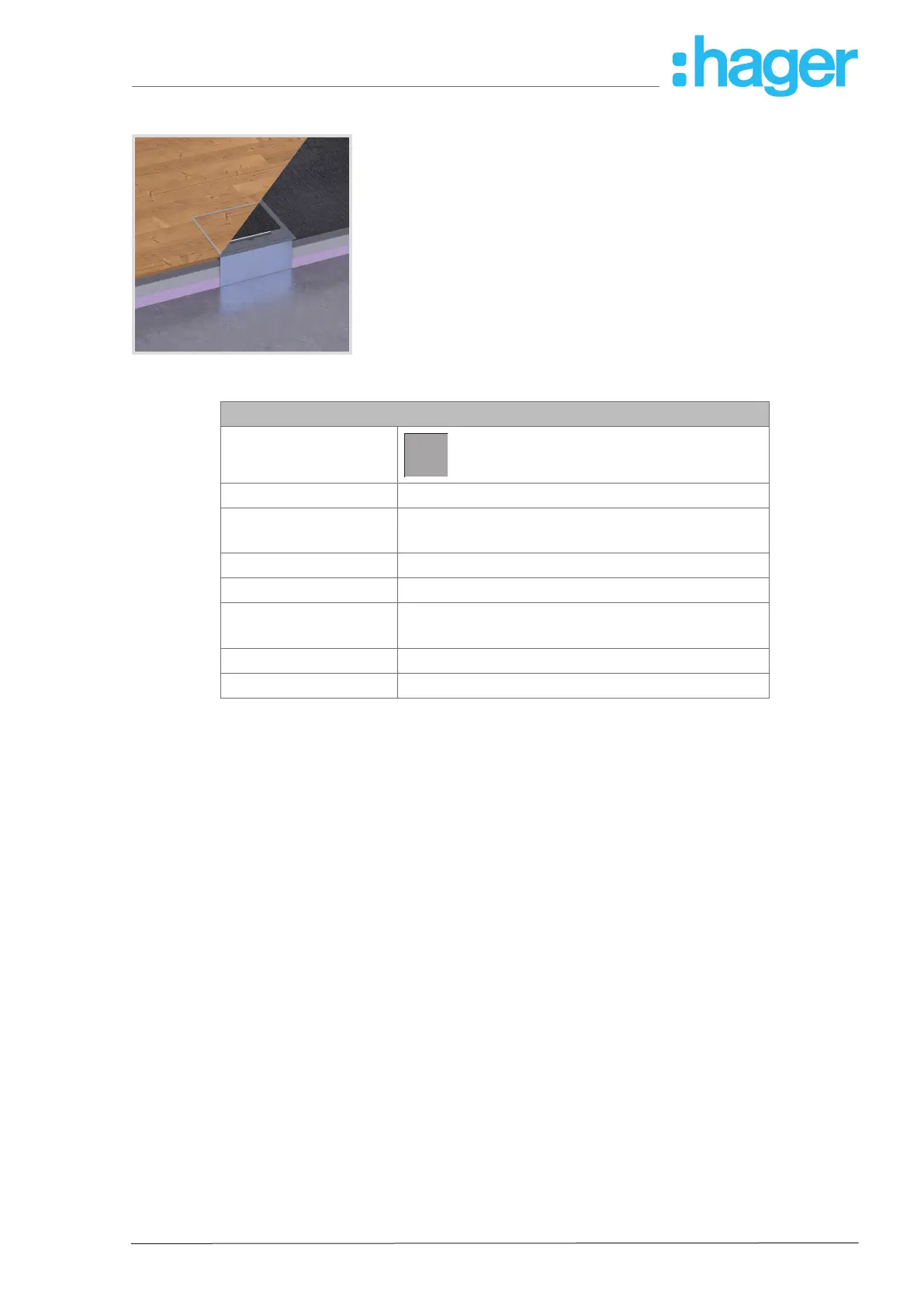

6LE008221A
Floor installation systems
Basic manual
Page 39/61
Floor installation systems
UD floor box set UDKPQ
The UD floor box set series is supplied as a complete installation
unit. The installation unit consists of a floor box as a screed lining
and either a stainless steel cassette or supply unit for device
installation. The individual elements for device installation are
included in the scope of delivery. The floor box is installed directly
on the raw concrete and connected with flexible installation tubes.
In addition, if necessary, the floor tank can be combined individu-
ally from the individual parts and assembled on the construction
site.
UD floor box set
Forms
Nominal sizes Q06
Number of socket
outlets
6
Floor covering depth 5 mm, 23 mm
Version Cable outlet
Minimum installation
depth
95 mm, 105 mm
Material Plastic/stainless steel
Colours Stainless steel, RAL 7011, RAL 9005
Table 9: Overview, UD floor box set
