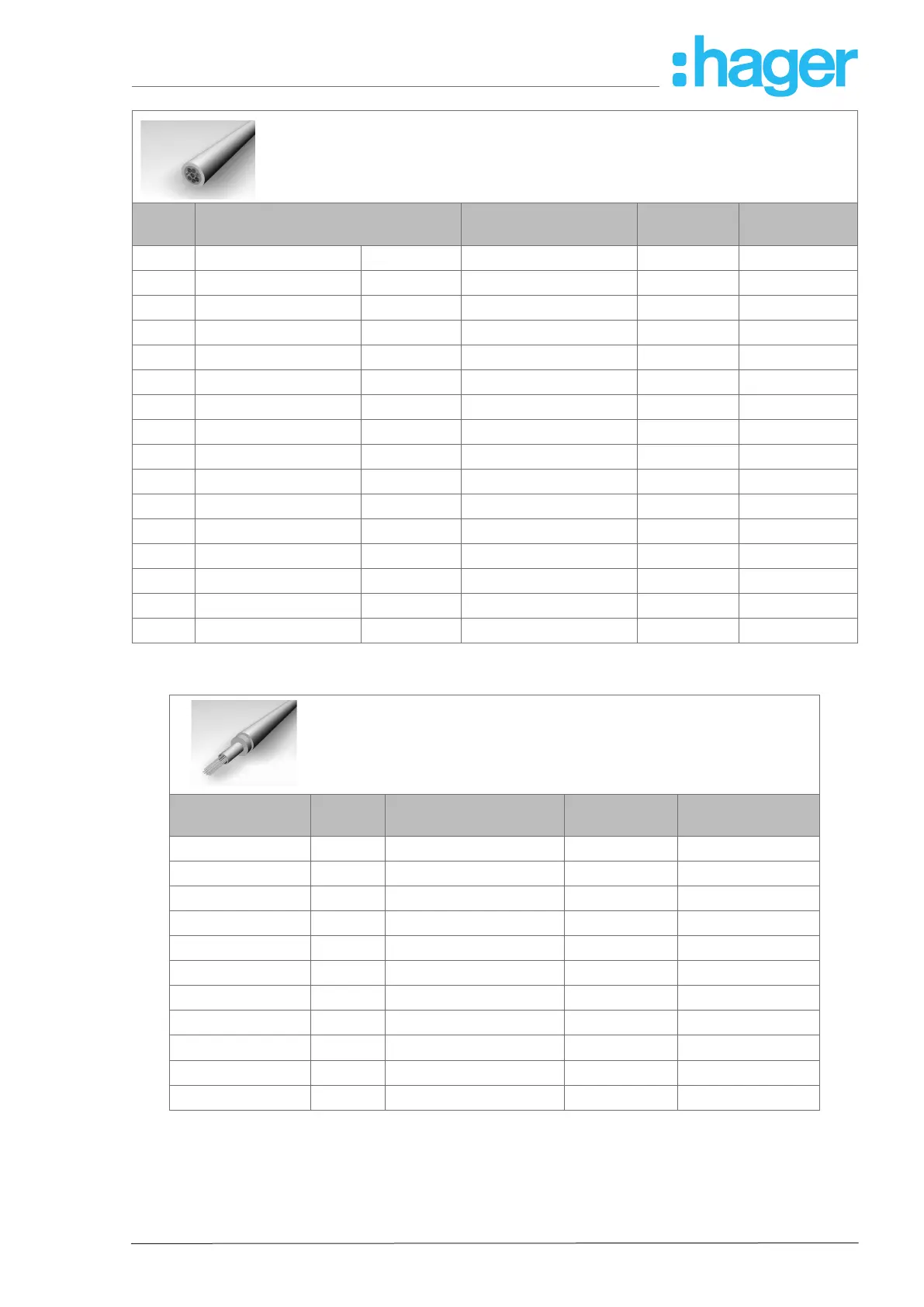

Floor installation systems
Basic manual
Page 35/61
Floor installation systems
IT data cables
Designation
External diameter
[mm]
Bending
radius
Cable volume
[cm²]
Cat 5e 1x4xAWG 22/7
shielded
6.5 4xD 0.42
Cat 6 4x2xAWG 23/1
shielded
7.4 4xD 0.55
Cat 6 4x2xAWG 23/1
unshielded
6.4 4xD 0.41
Cat 6a 4x2x AWG 23/1
U/UTP
6.4 4xD 0.41
Cat 6a 4x2x/ AWG 23/1
U/FTP
7.2 4xD 0.52
Cat 6a 4x2x/ AWG 23/1
F/FTP
7.5 4xD 0.56
Cat 6a 4x2x/ AWG 23/1
S/FTP
7.4 4xD 0.55
Cat 7a 4x2x/ AWG 22/1
S/FTP
8.6 4xD 0.74
Cat 7a 4x2x AWG 26/7 flex
S/FTP
5.8 4xD 0.34
Cat 6 2x(4x2xAWG 23/1)
shielded
7.4 x 15.0 4xD 11.10
Cat 6 2x(4x2xAWG 23/1)
unshielded
6.4 x 12.8 4xD 8.19
Cat 6a 2x (4x2x AWG23/1)
U/FTP
7.4 x 15.0 4xD 11.10
Cat 6a 2x (4x2x AWG23/1)
F/FTP
7.5 x 15.2 4xD 11.40
Cat 6a 2x (4x2x AWG23/1)
S/FTP
7.4 x 15.0 4xD 11.10
Cat 7a 2x (4x2x AWG22/1)
S/FTP
8.6 x 17.5 4xD 15.05
Table 4: Cable volume, data cables
Fibre optic cables
External diameter
[mm]
Bending
radius
Cable volume
[cm²]
Internal cables 1 x 6 6.5 15xD 0.42
1 x 8 6.5 15xD 0.42
1 x 12 6.5 15xD 0.42
1 x 24 7 15xD 0.49
2 x 12 8.3 10xD 0.69
4 x 12 8.6 10xD 0.74
6 x 12 8.6 10xD 0.74
8 x 12 9.9 10xD 0.98
12 x 12 11.4 10xD 1.30
Duplex cables 2 x 1 5.6 x 3.2 5xD 1.79
Table 5: Cable volume, fibre optic cables
P
The data for the external diameter and cable volume is estimates and is rounded. Refer to
the manufacturer’s data for exact details.
P
Further details on the duct area and cable volume can be found in the “Appendix”
