Trunking systems
Screed-covered trunking system
2 Trunking systems
A distinction is made between 5 standard floor systems. The appropriate floor system sets the course
from the very start. Depending on the system, only certain products may be used. Whether this is a
screed-covered trunking system, which is often used in new buildings, or an on-floor trunking system,
which is often used during renovations, the rough direction is entirely different. Specific solutions and
combination options are available for each system.
The following points, defined in the planning phase, are of decisive importance for the correct
selection of the right trunking system:
– Building type (office/administrative building, car showrooms, etc.)
– Building substance (new building, old building with/without protection)
– Building structure (single or open plan offices)
– Use practices (flexible for changes of use)
2.1 Screed-covered trunking system

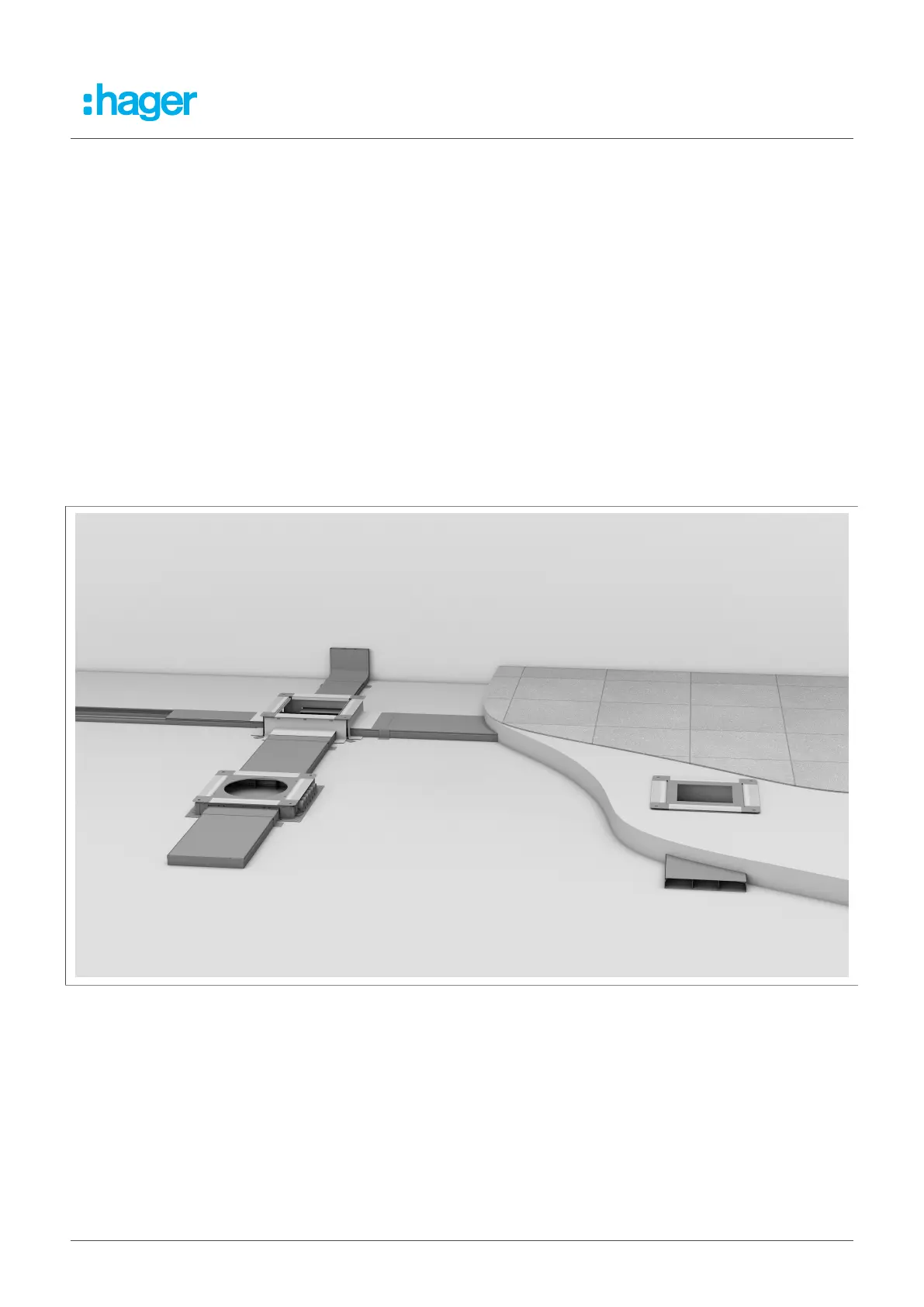

Fig. 2: electraplan.UK screed-covered trunking system
The electraplan.UK floor installation system is quick and easy to install and is suitable for virtually all
types of screed. The underfloor trunking and floor boxes made from galvanised sheet steel, which of-
fers optimal protection against corrosion, are secured to the bare floor. Since the upper sections of the
basic profile are detachable, the cables can be placed into the trunking from above and do not need to
be pulled in. The screed is administered flush with the upper edge of the floor boxes such that the un-
derfloor trunking is covered. See catalogue!
19
