EN
7
User manual
GYSFLASH 8.48 PL-E
Translation of the original
instructions
GENERAL DESCRIPTION
The Gysflash 8.48 PL-E is an on-board charger for recharging the traction batteries found on scrubber-driers or forklift-trucks,
service batteries found in marine, heavy goods vehicles or buses, and for batteries used in electromobility-related transport equip-
ment (bicycles, scooters, golf carts, etc.). It is suitable for charging most lead-acid batteries (liquid/gel, AGM) and lithium batteries
(LiFePO4, lithium-ion, etc.).
This charger is ideal for charging and maintenance of:
• 48 V (24 cells in series) lead batteries (Liquid/Gel, AGM) ranging from 15 Ah to 160 Ah.
• 48 V LFP batteries (15 cells in series) ranging from 8 Ah to 160 Ah.
• 48 V LFP batteries (16 cells in series) ranging from 8 Ah to 160 Ah.
• 48 V «standard» lithium-ion batteries (13 cells in series)
• 48 V «standard» Lithium-ion batteries (14 cells in series)

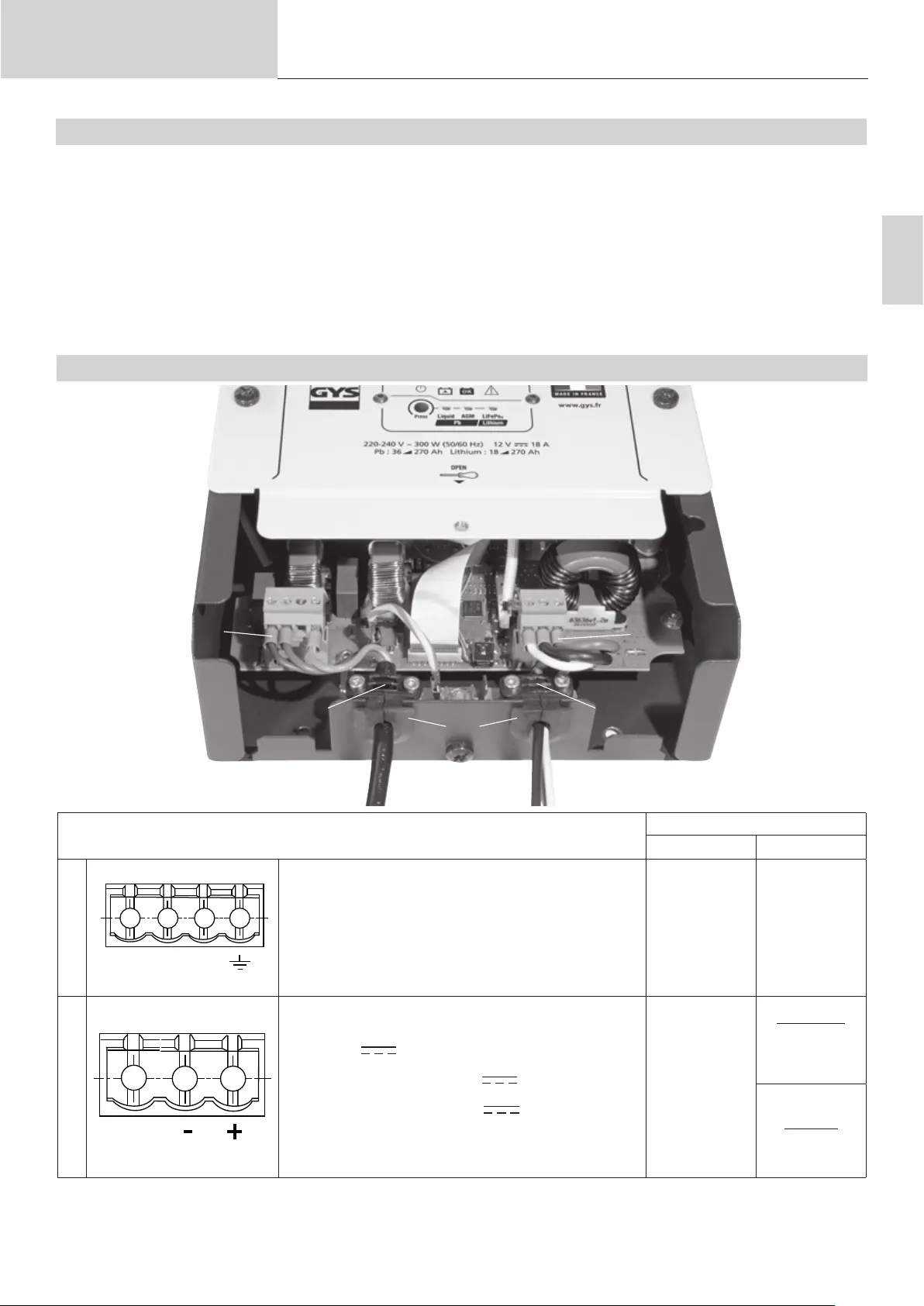

CONNECTIONS AND WIRING
A
1
1
2
3 3
B
Connectivity
Wire
Type Section
A
L
N
1 2 3
4
POWER SUPPLY 230~
1. PHASE
2. NEUTRAL
3. N.C.
4. EARTH
Würth Electronik connector reference number
691344510004
H05RN-F
or equivalent
min:
3G0.75 mm²
max:
3G2.5 mm²
B
S
1 2 3
48 V BATTERY CONNECTION
1. SIGNAL power present (+48/2mA )SIGNAL présence secteur
(+48/2mA )
2. NEGATIVE CONNECTION - 48 V
3. POSITIVE CONNECTION + 48 V
Würth Electronik connector reference number
691344510003
H01V-K
or equivalent
Battery (2/3)
2.5 mm²
or
AWG14
Signal (1)
max 2.5 mm²
▪ Fit the appropriate cable crimps 1 for the cross-section of each cable.
▪ Screw the crimps into the connector as shown in the above connection diagrams for connectors A and B.
