GYSFLASH CNT
EN
19

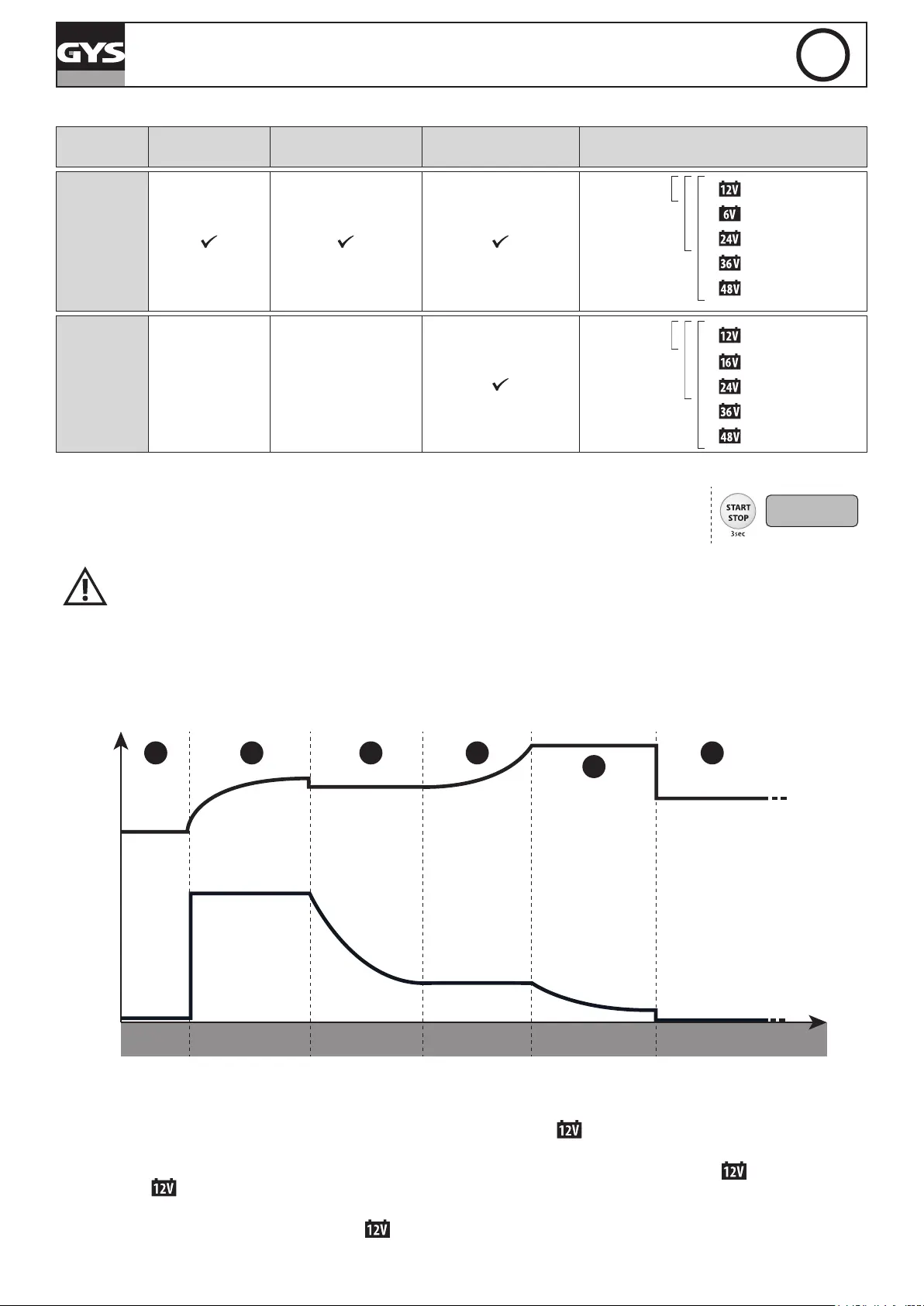

Features of the power modes:
Mode
«No Battery»
function
«Integrated charging»
function
Abnormal undervoltage
protection
Voltage adjustment
SHOWROOM
12 V models 12.7 V - 14.4 V
24 V models
6.3 V - 7.2 V
25.4 V - 28.8 V
48 V models
38.1 V - 43.2 V
50.8 V - 57.6 V
DIAG+
12 V models 12.7 V - 14.8 V
24 V models
14.4 V - 17.2 V
25.4 V - 29.6 V
48 V models
38.1 V - 44.4 V
50.8 V - 59.2 V
• «No battery» function (not recommended):
This function allows you to use the SHOWROOM power mode when there is no battery. To do this, press
the START/STOP button for 3 seconds. The «No battery mode» indication is displayed for 3 seconds
before forcing the power supply.
SHOWROOM 12V
no battery mode
It is strongly recommended not to use the «no battery» function if a battery is present.
This function disables the «Integrated charging» function, as well as some of the protections such as
abnormal undervoltage protection or disconnection detection.
In this conguration, reverse polarity can damage the vehicle electronics.
• «Integrated charging» function:
The SHOWROOM mode (outside of the «no battery» function) incorporates an automatic charging algorithm adapted to all types
of batteries (lead and lithium), in order to guarantee an optimal charge level for demonstration vehicles. This function is perfectly
compatible with the presence of consumers on the battery.
U
I
1 2 3 4
5
6
Analysis Charging Complement
Equalization /
Balancing
Power supply modeAbsorption
Step 1: Analysis
Analysis of the battery condition (charge level, inversion, etc.)
polarity, wrong battery connected, etc).
Step 4: Complement
Gradual increase of the voltage up to U2
(ex: 14.4 V to ).
Maximum duration 2 hours.
Step 2: Charging
Fast charging at maximum current until U1 is reached
(ex: 13.8 V to )
Step 5: Equalization / Balancing
Maintaining the voltage U2 (ex: 14.4V at ).
Maximum duration 2 hours.
Step 3: Absorption
Charge under constant voltage U1 (ex: 13.8 V in ).
Maximum duration 1 hour.
Step 6: Power supply mode
Application of the selected voltage.
