GPP-1323/GPP-1205 User Manual
96
Trigin
Voltage &
Trigin
Current

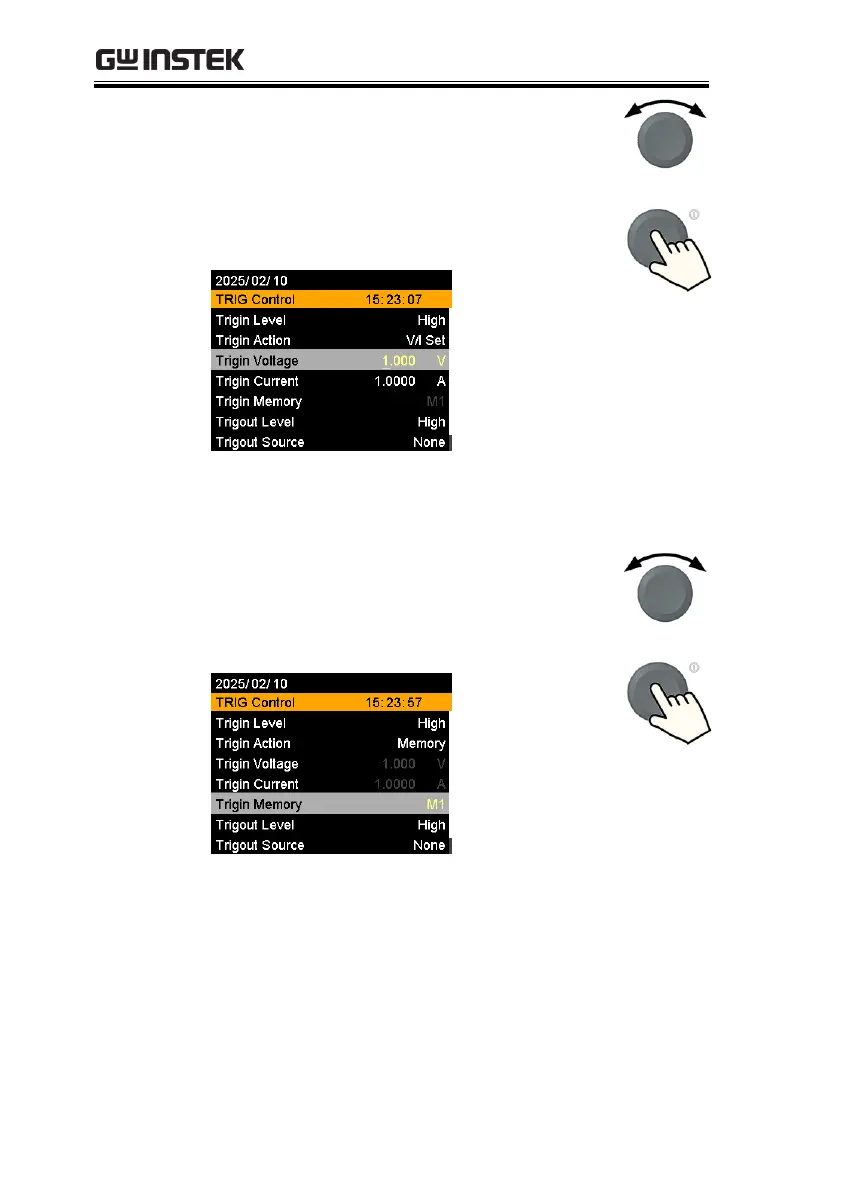

6. Scroll knob key to move between Trigin
Voltage and Trigin Current fields. Click the
knob key to enter each field, respectively.
Scroll the knob key to adjust value, along
with the arrow keys to change among digits
followed by clicking the knob key to confirm
set value.
Setting Range
Model
Trigin Voltage
Trigin Current
GPP-1323
0 V to 33.600 V
0 A to 3.1500 A
GPP-1205
0 V to 21.000 V
0 A to 5.2500 A
Trigin
Memory
7. Scroll knob key to move to Trigin Memory
field. Click the knob key to enter the field.
Scroll the knob key to selection option
followed by clicking knob key to confirm the
memory selection.
Trigin
Memory
M1 to M5
Trigout
Level
It determines what trigger-out signal (High or Low) will
be transmitted after execution of predefined Trigout
Source from GPP-1000 series.
