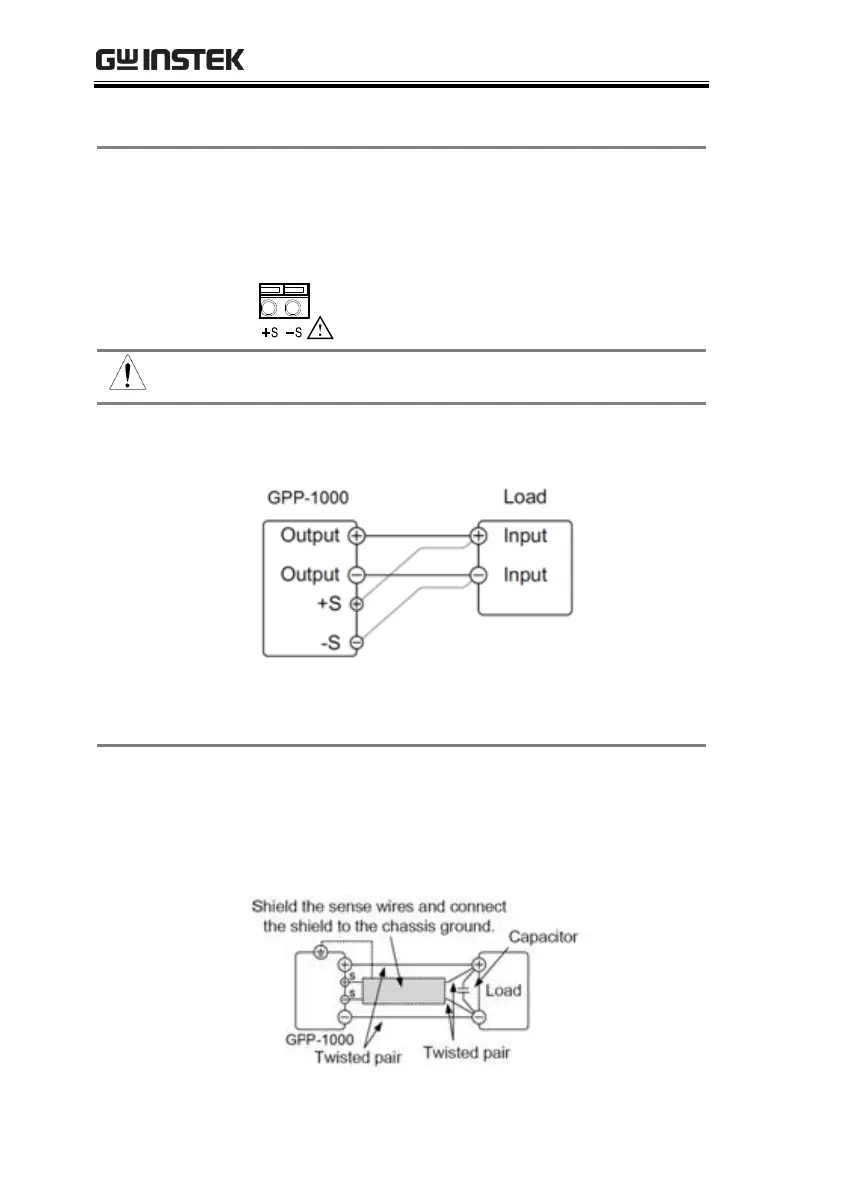

GPP-1323/GPP-1205 User Manual
58
on. Electric shock or damage to the power supply
could result.
Output
terminal
Connector
Overview
When using the remote sensing, make sure the
wires that are used follow the following
guidelines:
Wire gauge:
AWG 20 to AWG 14
Strip length:
6.5 mm // 0.26 in
+S: + Sense terminal
-S: - Sense terminal
Note
Be sure to remove the Sense joining cables so the
units are not using local sensing.
Single Load
1. Connect the +S terminal to the positive
potential of the load. Connect the -S terminal to
the negative potential of the load.
2. Operate the instrument as normal. See the Basic
Operation chapter for details.
Wire
Shielding
and Load
line
impedance
To help to minimize the oscillation due to the
inductance and capacitance of the load cables, use
an electrolytic capacitor in parallel with the load
terminals.
To minimize the effect of load line impedance use
twisted wire pairing.
