DIGITAL CONTROL
115

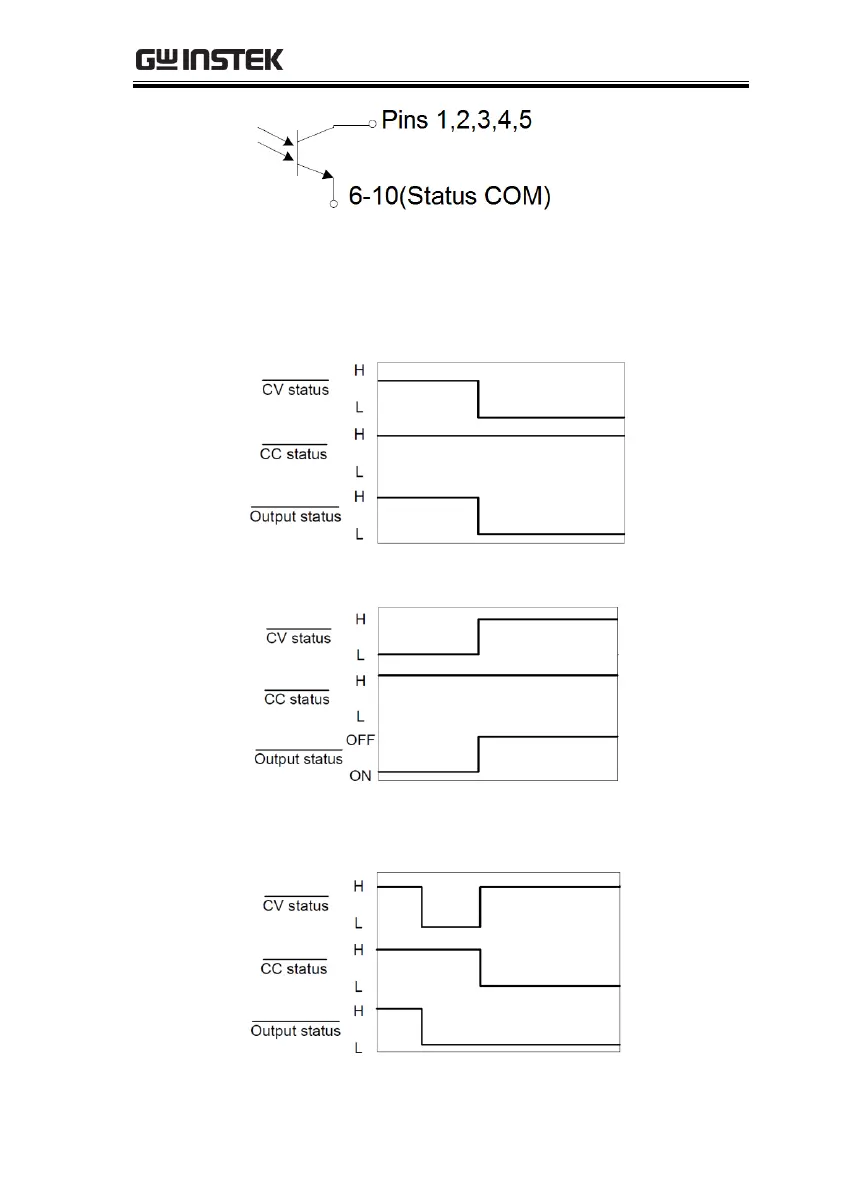

Schematic
Timing
diagrams
Below are 4 example timing diagrams covering a
number of scenarios.
CV MODE:
Output
turned on
The diagram below shows the timing diagram when the
output is turned on when the GPP-1000 is set to CV
mode.
CV MODE:
Output
turned off
The diagram below shows the output status lines when
the output is turned off in CV mode.
CC MODE:
Output
turned on
The diagram below shows the timing diagram when the
output is turned on when the GPP-1000 is set to CC
mode.
