Operation
41
Parallel Sense
Connections
For remote sense connections, connect the S+
terminals to the positive potential of the load.
Connect the S- terminals to the negative potential of
the load.
Steps
1. Ensure the power is off on all power supplies.
2. Choose the master and the slave unit(s).
3. RS-232 port Connects the main control and slave
power supplies.

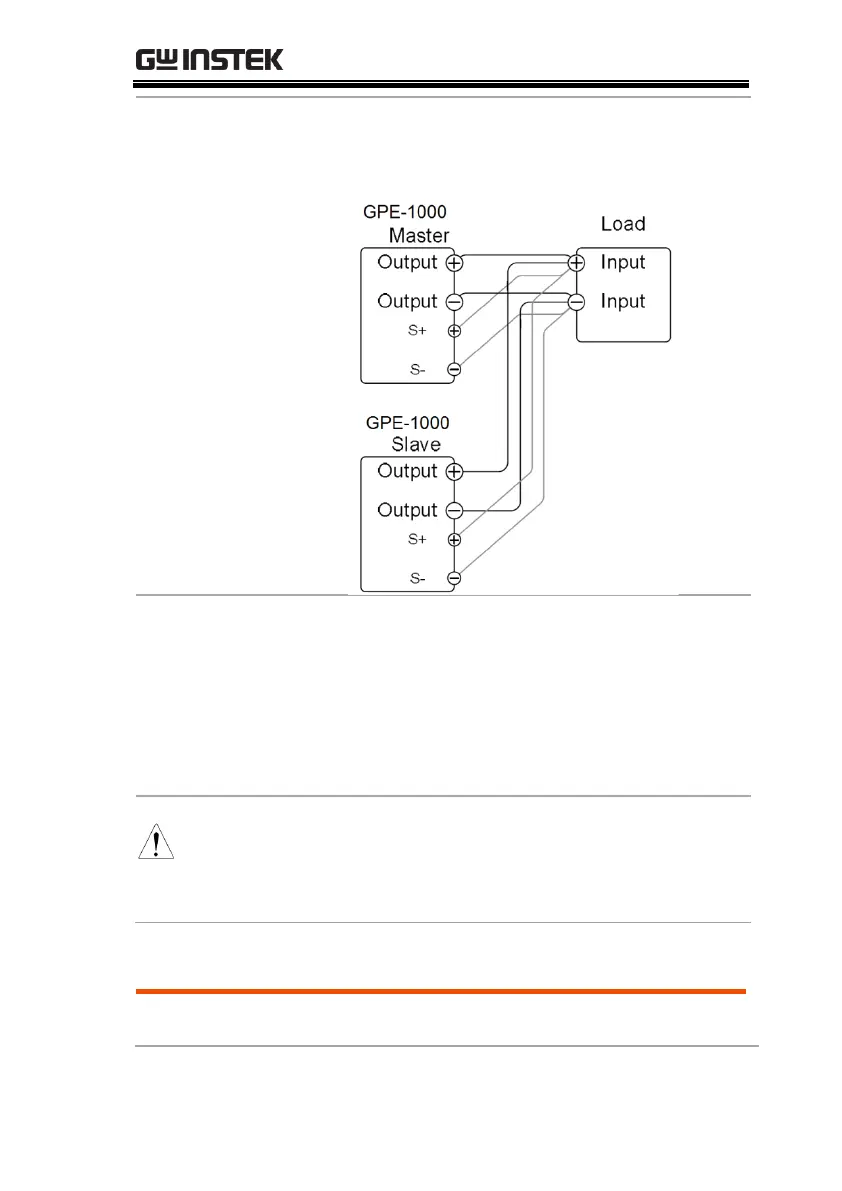

4. Connect the master and slave unit in parallel as
shown above.
5. If using remote sense, connect the master and
slave sense cables as shown above.
Note
Ensure the load cables have sufficient current
capacity.
The load wires and remote sense wires should use
twisted-paired wiring of the shortest possible
length.
Parallel Operation
Master-Slave
Configuration
Before using the power supplies in parallel, the
master and slave units need to be configured.
