13 / EN
Hood / User Manual
A
WARNING: Before starting the instal-
lation, read the safety information
on User Manual.
B
WARNING: Failure to install with
screws and stabilizers in accord-
ance with these instructions may
result in electric shock.
C
Please refer to page 35 for the instal-
lation guide.
For the installation of the hood, please contact the
nearest Authorized Service.
It is the customer’s responsibility to prepare the
location and electrical installation of the hood.

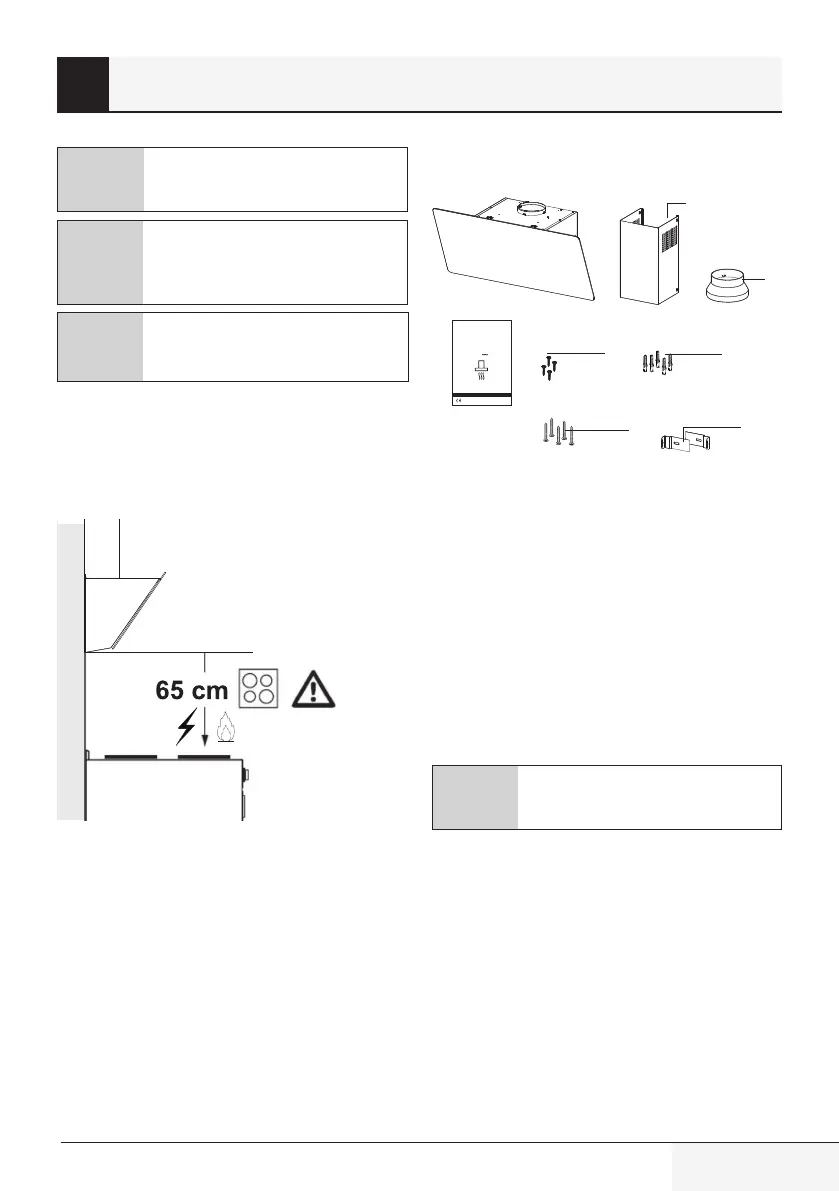

5.1Positionoftheappliance
• Distance between the cooker and the cooker
hood must be considered prior to assembly. This
distance should be 65 cm.
• Distance must be measured from the surface of
grate for gas cookers, from surface of glass for
electric cookers.
5.2Installationaccessories
TR
Kullanma
Davlumbaz
I = 5x
P = 4x
L = 5x
M = 2x
O
N1
1
2 3
4
5 6
7 8
1. Hood
2. Outer chimney
3. Ø150/120 mm plastic chimney adapter
4. User manual
5. 4x chimney connection plate screw
6. 5x plastic dowel
7. 5x wall mount screw
8. Chimney connection plate fixing bracket
The information required to make the location suit-
able for the installation of the hood is given below.
5.3Wallmounting
A
CAUTION: Use protective gloves and
glasses while performing drilling
and cutting operations.
• Wall must be flat, straight and have the sufficient
bearing capacity.
• Depth of drilling holes must comply with the
length of bolts.
• The bolts and dowels provided are suitable for
brick walls. For other construction material (e.g.
drywall, plate, porous concrete), suitable fixing
dowels and nuts shall be used.
5.4Storage
• If you do not intend to use the appliance for a
long time, please store it carefully.
• Please make sure that the appliance is un-
plugged, cooled down and totally dry.
5 Installation of appliance
