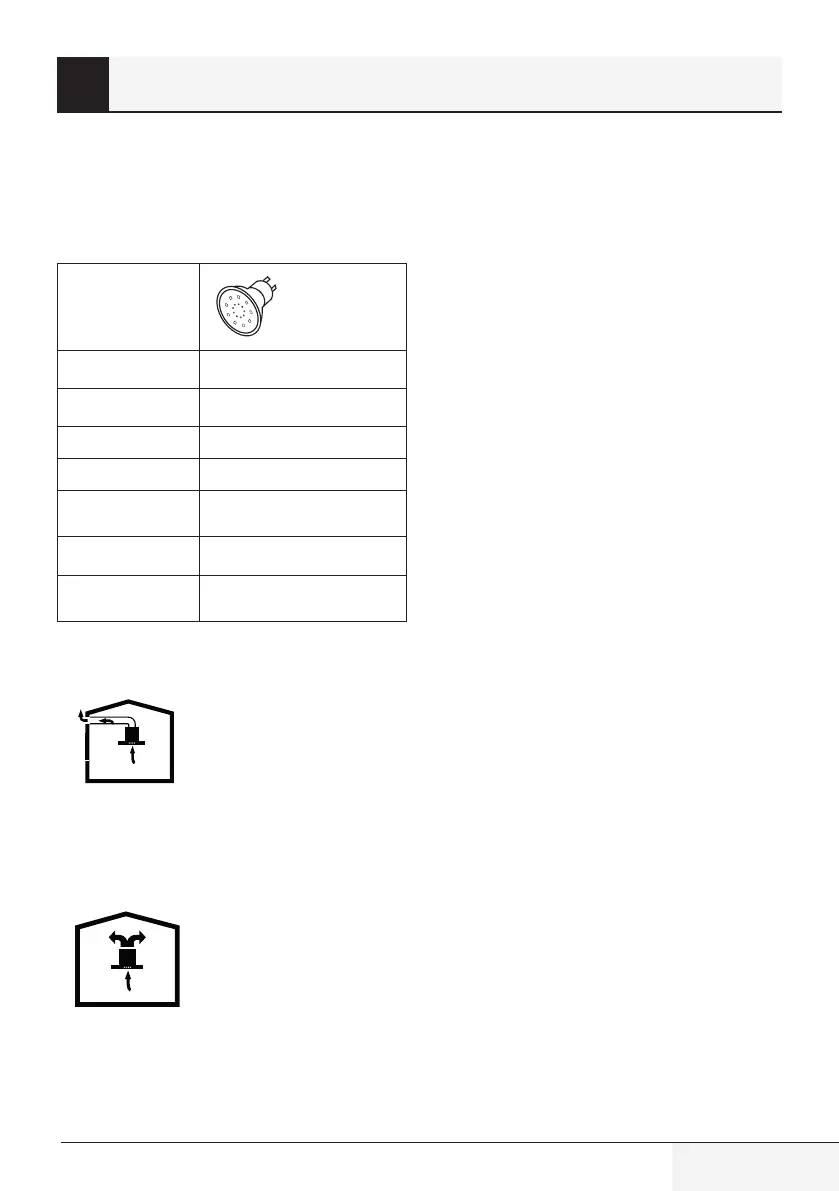

11 / EN
Hood / User Manual
Make the electrical connections of the appliance.
Your appliance uses 5 W LED lamp. For replacing
the lamps, push downwards on the holder from its
behind, turn it counter-clockwise, and take it out
downwards. Apply the above operation in reverse
to install new lamps.
Bulb
Bulb Power 5 W
Holder / Socket GZ 10
Bulb Voltage 220 - 240 V
Size 53 x 50mm
ILCOS Code DRPAR-5/830-220/240-
GU10-35/36
Luminous flux 380 lm
Correlated colour
temperature
3000 K
This product contains a light source of energy ef-
ficiency class “F”.
3.5Operationwithchimneyconnection
• Vapour is extracted through the
flue duct, which is fastened to
the connection head on the
hood.
• The diameter of the flue duct
must be the same as the connection ring. In
horizontal settings, the pipe has to have a slight
upward slope (around 10º) so that the air can
exit the room easily.
3.6 Operation without chimney connection
• Air is filtered through the carbon
filter and recirculated in the
room. Carbon filter is used
when it is impossible to use a
flue in the house.
• In flue less use, remove the
flaps inside the flue adapter.
• Remove the aluminium grease filter. To install
the carbon filter, fit the filter to the tabs by cen-
tring it on the plastic piece on both sides of the
fan body. Tighten it by turning right or left.
3 Using the appliance
• Replace aluminium grease filter.
