7.3 LED and OLED Displays Panel
The LED and OLED display panel demonstrating the running status of the WIT
Inverter is shown in the Fig 7.1. The symbol description is shown in Table 7.1; The
user interfaces are shown in Fig 7.2, and the LED indicator description is shown in
Table 7.2.
Fig 7.1 Display panel
Table 7.1 Symbol Description

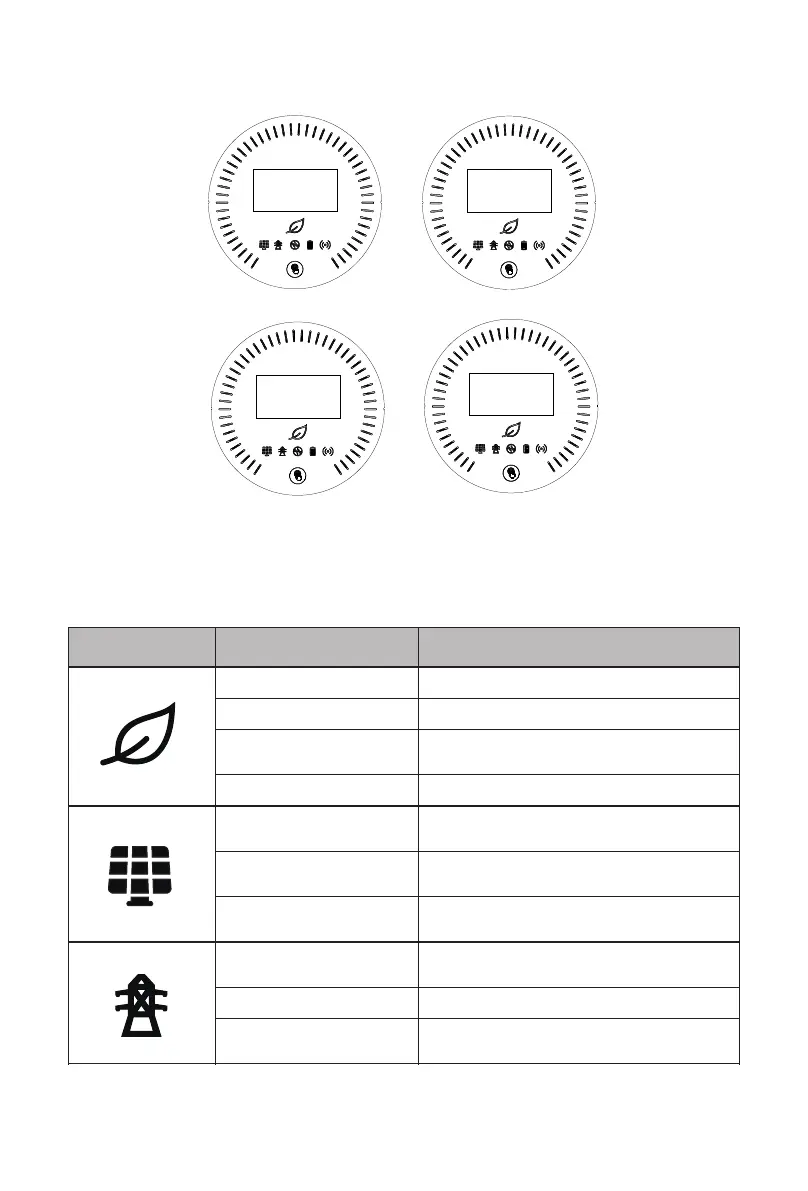

Fig 7.2 User interfaces
Table 7.2 Indicator description
Status
Meaning
Off
The system is not operating
Steady green
The system is operating properly
Blinking green at long
intervals
The system is in standby mode or
performing an upgrade
Steady red
System failure
Off
The PV voltage dose not reach the
operating voltage
Steady green
The PV voltage reaches the operating
voltage
Steady red
A fault or alarm is reported on the PV
side
Off
The grid voltage does not reach the
operating voltage
Steady green
Successfully connected to the grid
Steady red
A fault or alarm is reported on the
grid side
Output Power
50
KW
100 %
Programming
startup page
display page
alarm page
update page
AFCI Fault
GROWATT
B
A
F
G
H
E
D
C
I
GROWATT
Position
Description
Note
A
OLED screen
Displays the main system information
B
System indicator
Displays the system status
C
PV indicator
Indicates the operation status on the PV
side
D
Grid indicator
Indicates the operation status on the grid
side
E
Off-grid indicator
Indicates whether the off-grid mode is
enabled
F
Battery indicator
Indicates the status of the battery
G
Communication/GEN
indicator
Indicates the communication status, the
GEN port status and other system faults
H
Battery status indicator
Indicates the charging and discharging
mode of the battery
I
Button
You can switch the information displayed
on the OLED by pressing the button
60
59
